Rear Lamp Assembly

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. View 1 of 2. Remove the components in the order indicated in Fig 1.
    Fig 1: Removing Sequence Of Rear Lamp Assembly (1 Of 2)
    G02239745Courtesy of FORD MOTOR CO.
  2. View 2 of 2. Remove the components in the order indicated in Fig 2.

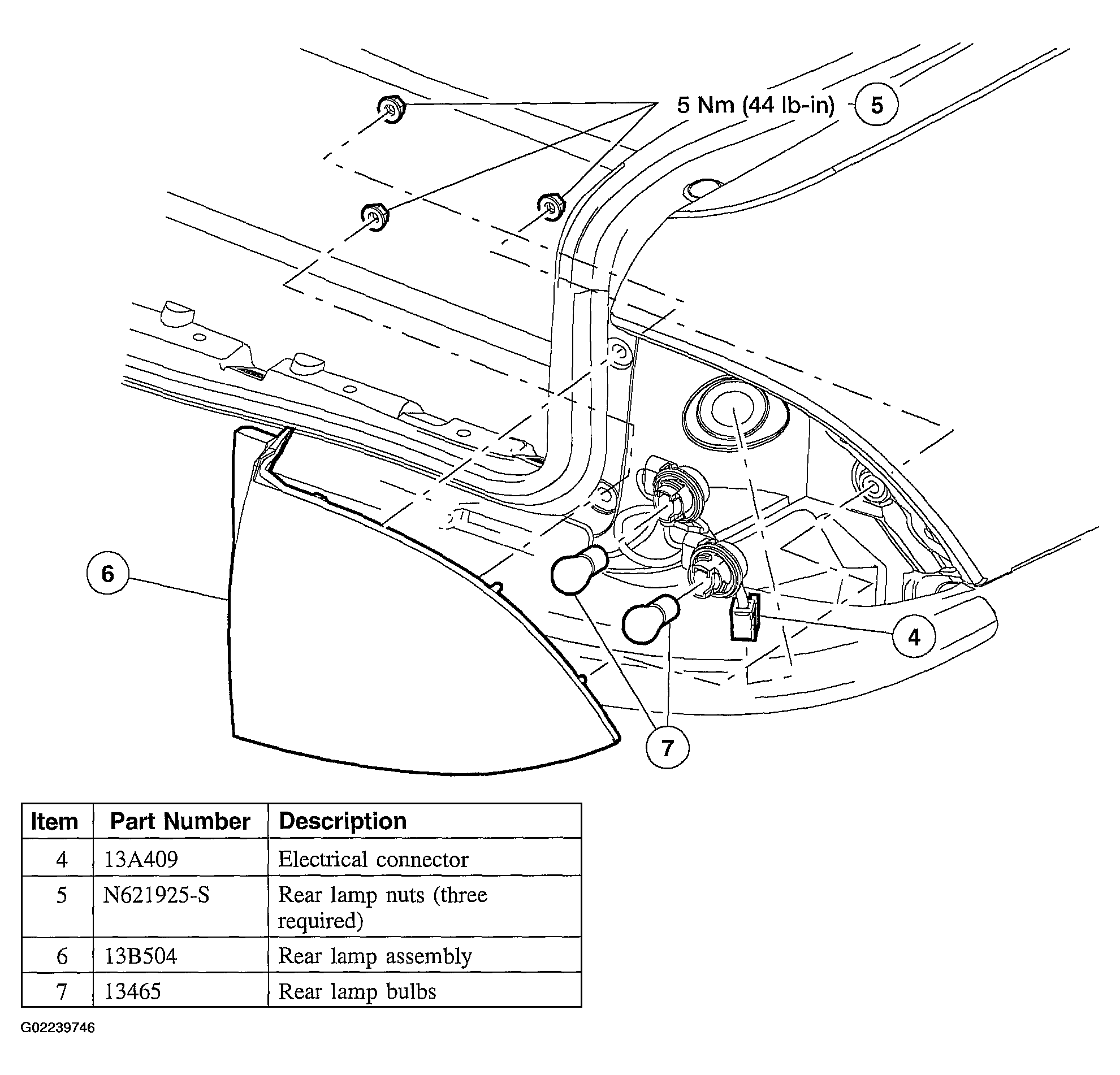

    Fig 2: Removing Sequence Of Rear Lamp Assembly (2 Of 2)
    G02239746Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
