Compass Zone Adjustment-Without Message Center

    NOTE: The compass zone setting is preset from the factory to Zone 8.

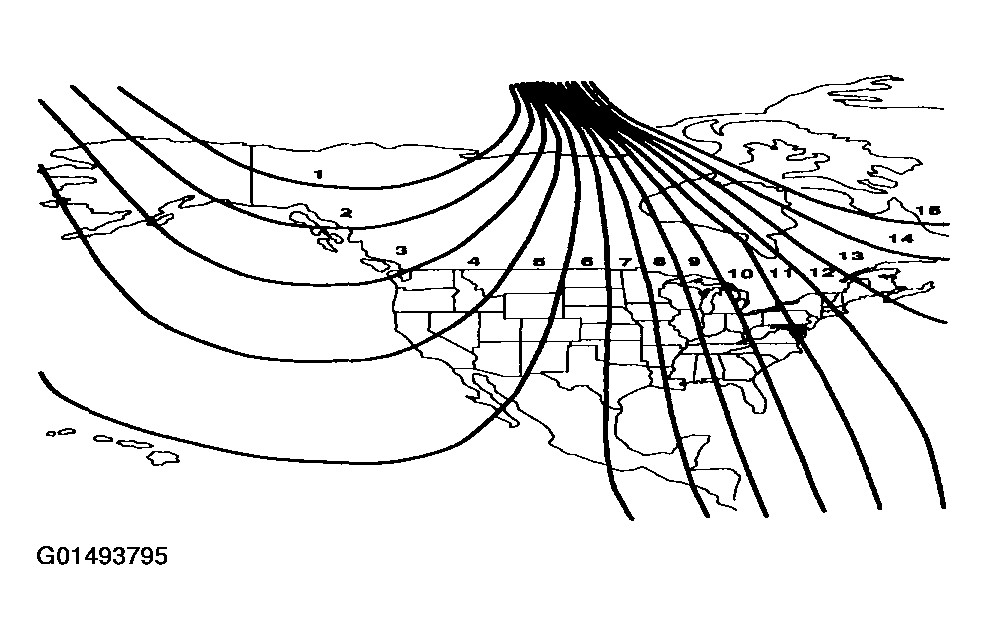

    Fig 1: Identifying Geographic Location
    G01493795Courtesy of FORD MOTOR CO.
  1. Determine which magnetic zone you are in for your geographic location.
  2. Turn the ignition key to the ON position.
  3. Locate the compass module at the base of the mirror.
    Fig 2: Locating Compass Module At Base Of Mirror
    G01493796Courtesy of FORD MOTOR CO.
  4. Press and hold the reset button on the LH top of the compass sensor module. Press and hold until ZONE and the current zone setting (1-15) appear in the instrument cluster display, and release.
    Fig 3: Locating LH Top Compass Sensor Module Button
    G01493797Courtesy of FORD MOTOR CO.
  5. Press the reset button repeatedly to cycle through the possible zone setting until the setting for your geographic location is displayed.
  6. Release the button to exit the zone setting mode. After approximately five seconds the display will report the direction and the zone will be set.
