Windshield Glass: Removal

WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety glasses and heavy gloves when cutting glass from the vehicle.
  1. Remove the cowl grille. For additional information, refer to WIPERS AND WASHERS .
  2. Remove the A-pillar trim panels.
    • Remove the bolt covers and bolts.
      Fig 1: Removing A-Pillar Trim Panels
      G01495213Courtesy of FORD MOTOR CO.
  3. If equipped, remove the overhead console.
  4. Remove the interior rear view mirror (17700). For additional information, refer to REAR VIEW MIRRORS .
  5. Remove the sun visors.
    1. Remove the four screws
    2. Remove the two sun visor and visor arm clips
      • If equipped, disconnect the electrical connectors.
        Fig 2: Removing Sun Visor And Visor Arm Clip
        G01495214Courtesy of FORD MOTOR CO.
  6. Lower the front portion of the headliner.
  7. Remove the windshield side mouldings.
    • Pull out starting at the top corner.

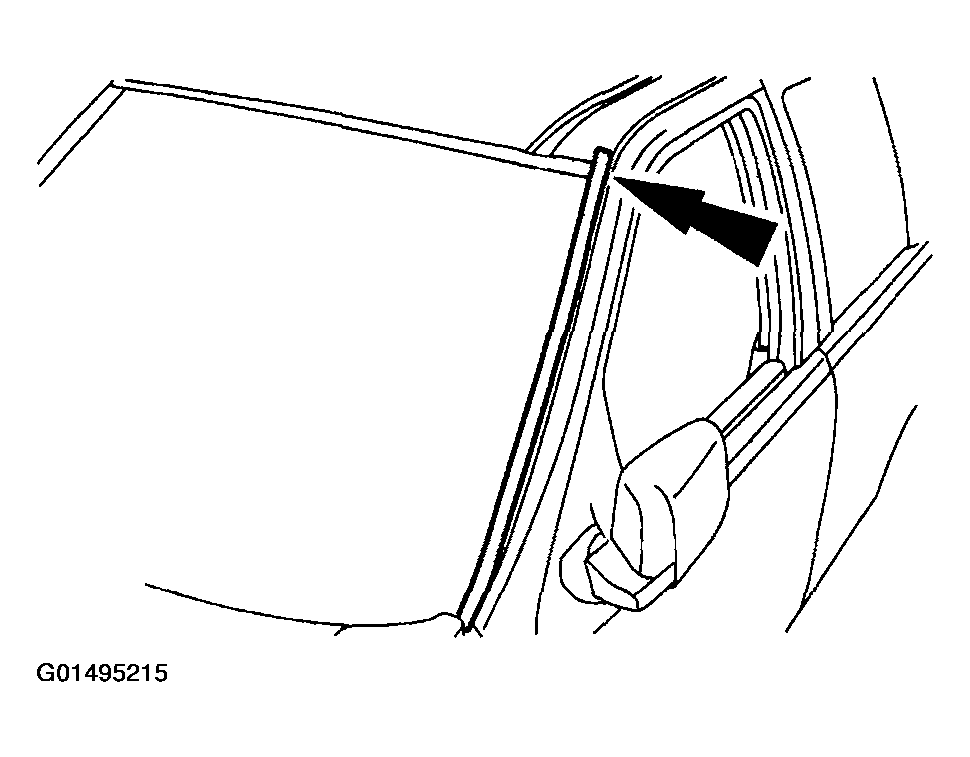

      Fig 3: Removing Windshield Side Mouldings
      G01495215Courtesy of FORD MOTOR CO.
  8. Remove the upper windshield weatherstrip.
    • Pull out starting at the corner.
      Fig 4: Removing Upper Windshield Weatherstrip
      G01495216Courtesy of FORD MOTOR CO.
  9. Mark the outside of the windshield glass with a wax pencil to avoid damaging the glass stops when cutting the urethane.
  10. Using a soft brush or vacuum, remove any dirt and foreign material from the pinch weld.
    11. CAUTION: Care must be taken to avoid scratching the pinchweld.
    NOTE: Lubricate the urethane adhesive with water to aid the special tool while cutting.
  11. Using the special tool, cut the urethane adhesive from the windshield glass.
    • Insert the blade into the urethane at the top middle of the glass and work toward the top corners.
    • Insert the blade at the top corners and work down each side of the glass toward the bottom.
      Fig 5: Cutting Urethane Adhesive From Windshield Glass
      G01495217Courtesy of FORD MOTOR CO.
    12. CAUTION: Pump special tool 164-R2459 or equivalent slowly as cowl adhesive is cut to avoid breaking glass.
    Fig 6: Distance Windshield From Body
    G01495218Courtesy of FORD MOTOR CO.
  12. Using the special tool, distance the windshield from the body.
    13. NOTE: Removing the windshield glass requires an assistant.

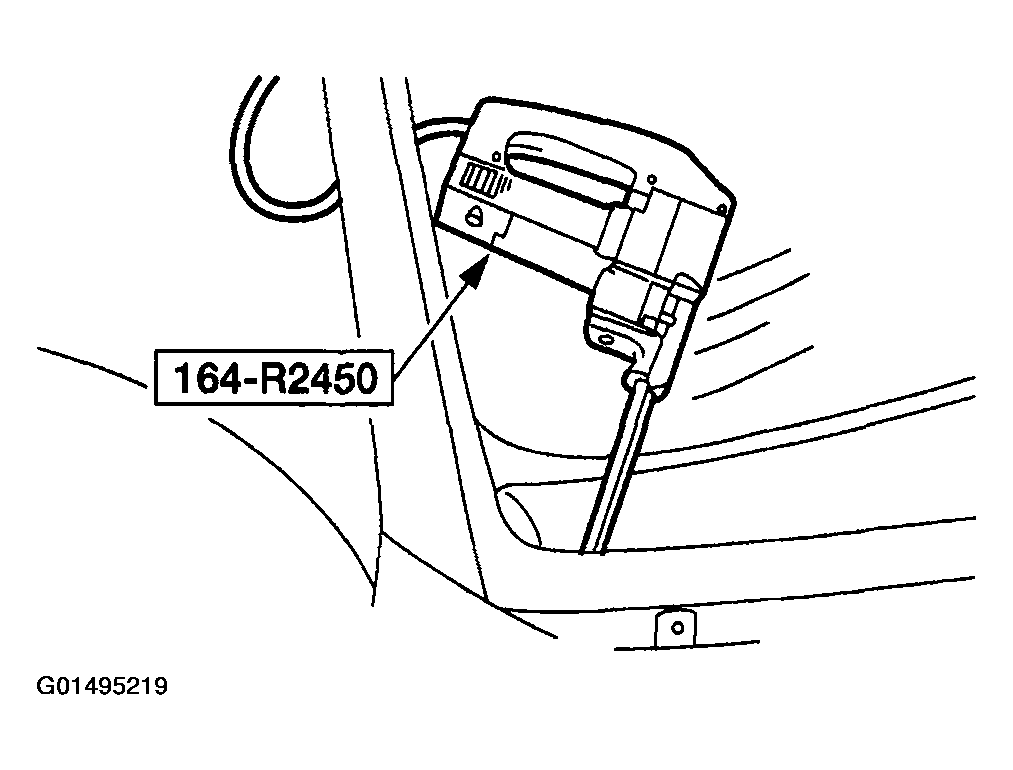

    Fig 7: Cutting Remaining Urethane Adhesive And Removing Windshield Glass
    G01495219Courtesy of FORD MOTOR CO.
  13. Using the special tool, cut the remaining urethane adhesive and remove the windshield glass.
  14. Using a soft brush or vacuum, remove any dirt and foreign material from the pinch weld.
