Transmission Insulator And Retainer: Removal

  1. Position the vehicle on a hoist. Place in NEUTRAL.
  2. Remove the rear transmission support nuts.

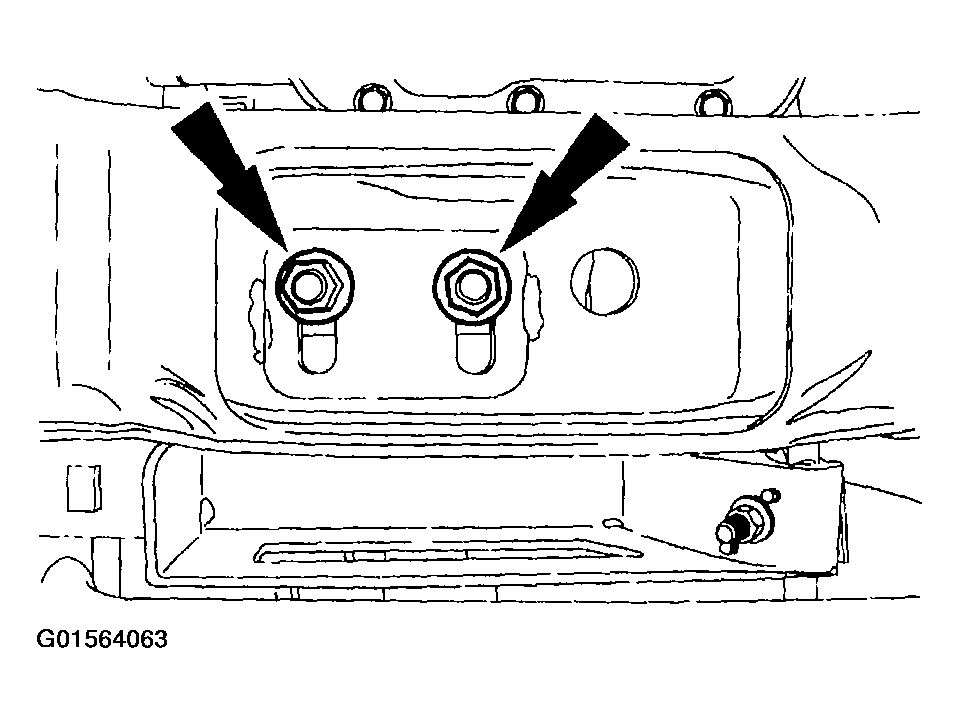

    Fig 1: Removing Rear Transmission Support Nuts
    G01564063Courtesy of FORD MOTOR CO.
  3. Install a suitable transmission jack.
    4. CAUTION: Be sure not to raise the back of the transmission too high, if it makes contact with the underbody, damage to the TSS and OSS sensors will occur.
    Fig 2: Removing Rear Transmission Bolts
    G01564064Courtesy of FORD MOTOR CO.
  4. Slightly raise the rear of the transmission and remove the bolts. Remove the rear transmission mount.
