Transmission Filler Tube: Installation

    NOTE: Coat the O-ring seal at the bottom of the fluid filler tube with transmission fluid. If removed, install the starter wiring harness.

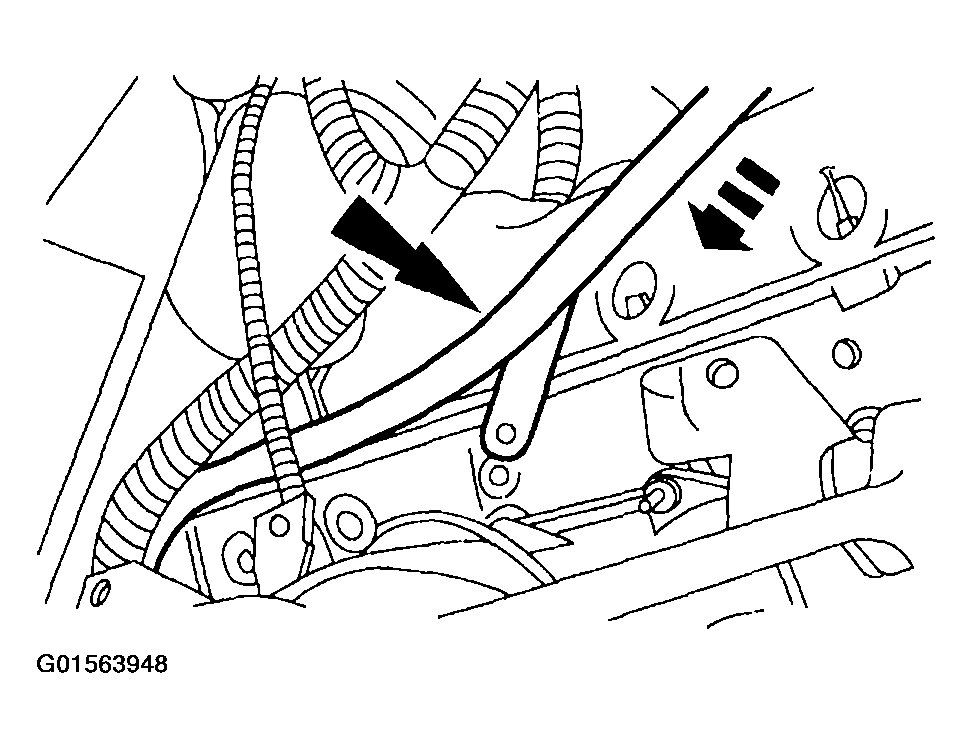

    Fig 1: Installing Fluid Filler Tube
    G01563948Courtesy of FORD MOTOR CO.
  1. Install the fluid filler tube.
  2. Install the fluid filler tube bolt.

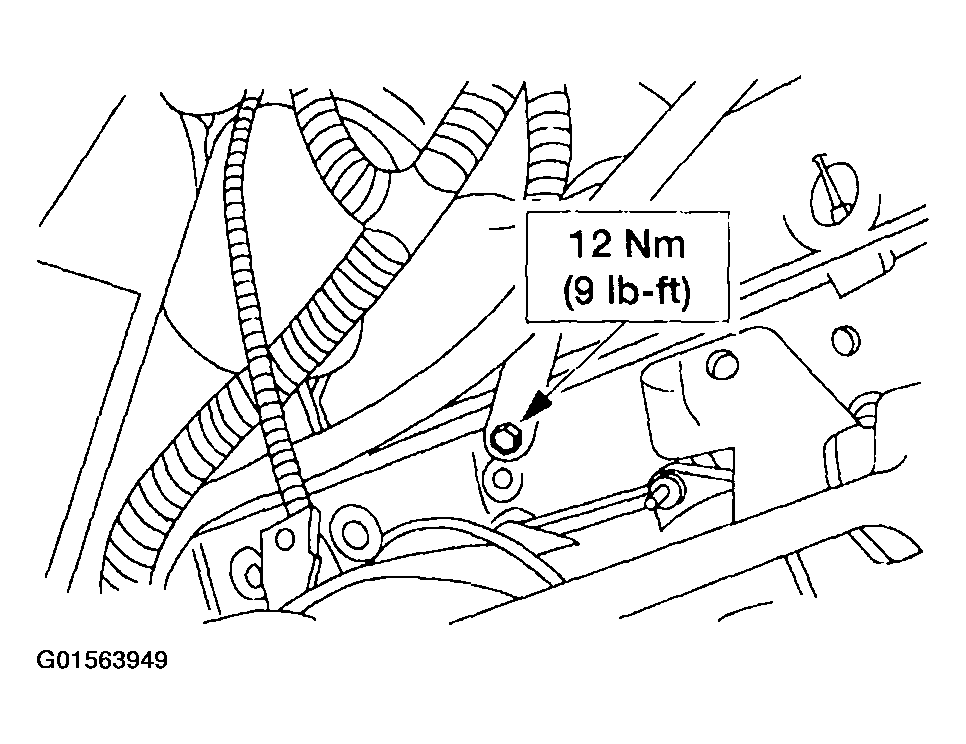

    Fig 2: Installing Fluid Filler Tube Bolt
    G01563949Courtesy of FORD MOTOR CO.
  3. Install the RH front wheel. For additional information, refer to WHEELS & TIRES .
  4. Lower the vehicle.
  5. Reconnect the battery ground cable.
  6. Install the fluid level indicator.
    Fig 3: Installing Fluid Level Indicator
    G01563950Courtesy of FORD MOTOR CO.
