Digital Transmission Range (Tr) Sensor: Removal
- Position the vehicle on a hoist. Place in NEUTRAL.
- The customer must be notified that they may experience slightly different upshifts (either soft or firm) and that this condition is temporary and will eventually return to normal operating condition.
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

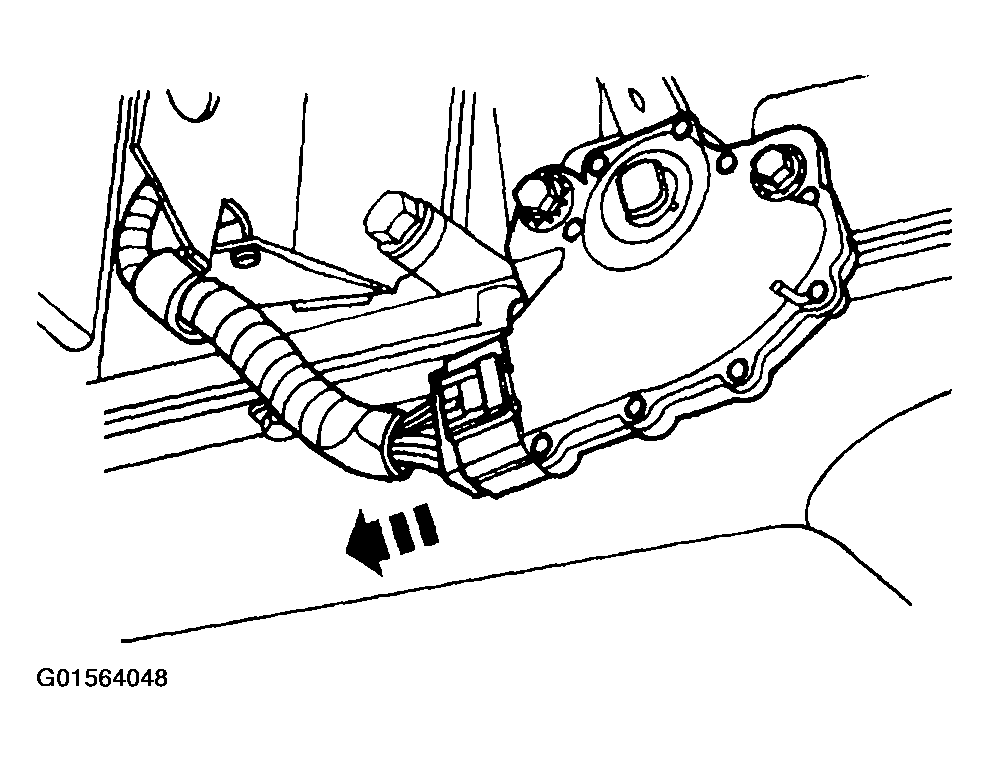

- Disconnect the connector.
- Disconnect the shift cable at the manual control lever.
- Remove the digital transmission range (TR) sensor.
NOTE:
All gasoline vehicles will have new adaptive shift strategies. Whenever the vehicles battery has been disconnected for any type of service or repair, the strategy parameters that are stored in the keep alive memory (KAM) will be lost. The strategy will start to relearn once the battery is reconnected and the vehicle is driven. This is a temporary condition and will return to normal operating condition once the powertrain control module (PCM) relearns all the parameters from the driving operating conditions. There is no time frame set for this process. If this concern is present during downshifts or converter clutch apply, it is not the shift strategy and will require diagnosis as outlined in the workshop manual.

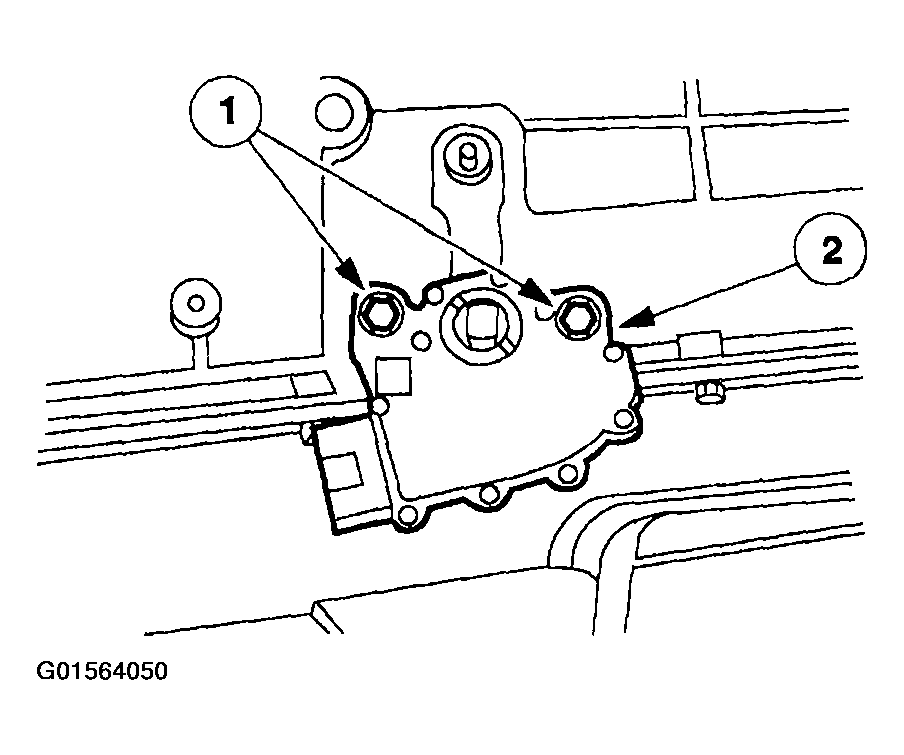

- Remove the bolts.
- Remove the digital transmission range (TR) sensor.
