Cooler Bypass Valve: Installation

CAUTION: Failure to correctly install the new rubber-coated sealing washers will result in transmission fluid leaks.

Install the new rubber-coated sealing washers and the new cooler line case fittings.
1. Install one rubber-coated sealing washer on each cooler line case fitting.
2. Install both cooler line case fittings into their respective ends of the CBV assembly.
3. Install one rubber-coated sealing washer on each cooler line case fitting.

  Fig 1: Installing Rubber-Coated Sealing Washers And New Cooler Line Case Fittings
  Courtesy of FORD MOTOR CO.

CAUTION: Make sure the cooler bypass valve (CBV) is correctly backflushed. Use dry compressed air to remove solvent.

CAUTION: If the cooler line case fitting is overtightened, the rubber-coated sealing washers and/or cooler line case fittings can be damaged, causing a transmission fluid leak.

NOTE: The CBV has a check ball in the rear fitting and will only allow flow in one direction. Make sure check ball moves freely.

NOTE: Align the two rubber-coated sealing washers while assembling the rear cooler line case fitting.

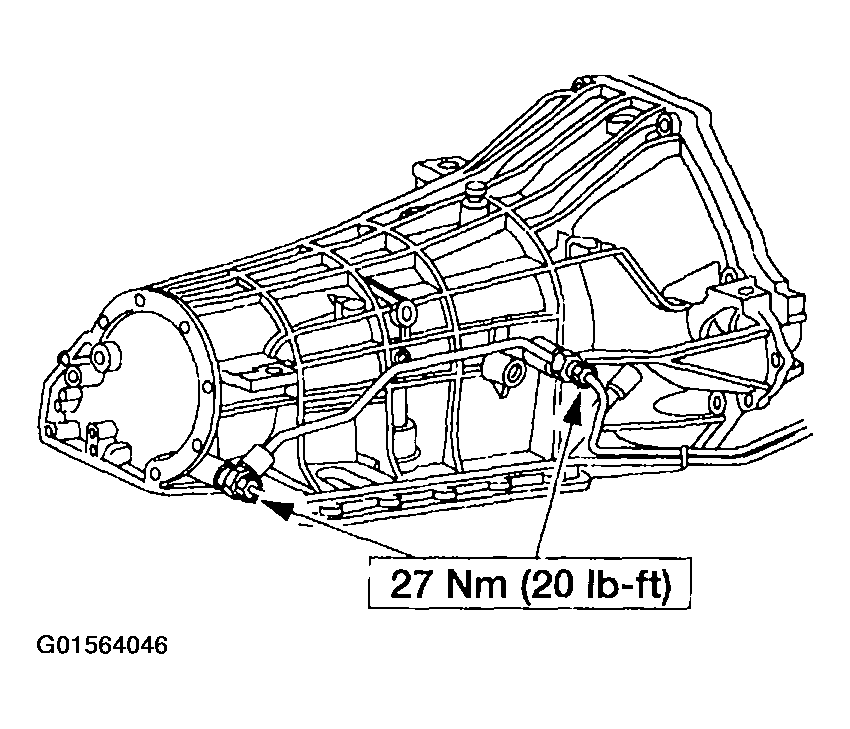

Fig 2: Installing Cooler Bypass Valve Fitting

Courtesy of FORD MOTOR CO.

Install the CBV fitting.

NOTE: The cooler lines must be flushed out at this time.

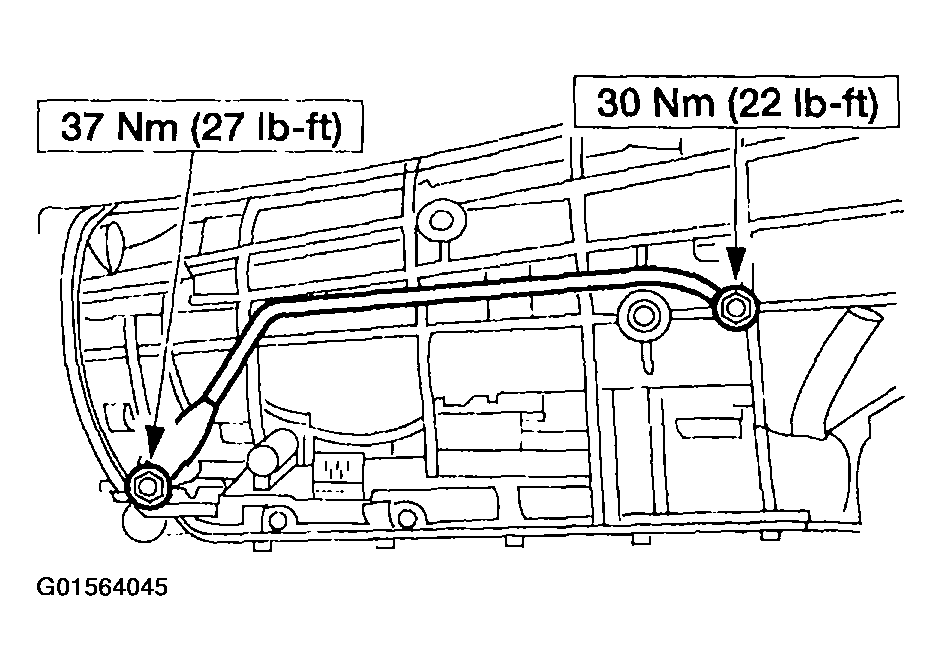

Fig 3: Tightening Cooler Tube Nuts And Torque Specifications

Courtesy of FORD MOTOR CO.

Tighten the cooler tube nuts.
Lower the vehicle.
Fill the transmission with clean automatic transmission fluid. Check for correct operation.
