Transmission Range (Tr) Sensor Adjustment

Fig 1: Identifying Transmission Range Sensor Adjustment Special Tools

Courtesy of FORD MOTOR CO.

1. Position the vehicle on a hoist.
2. Loosen the digital TR sensor bolts.

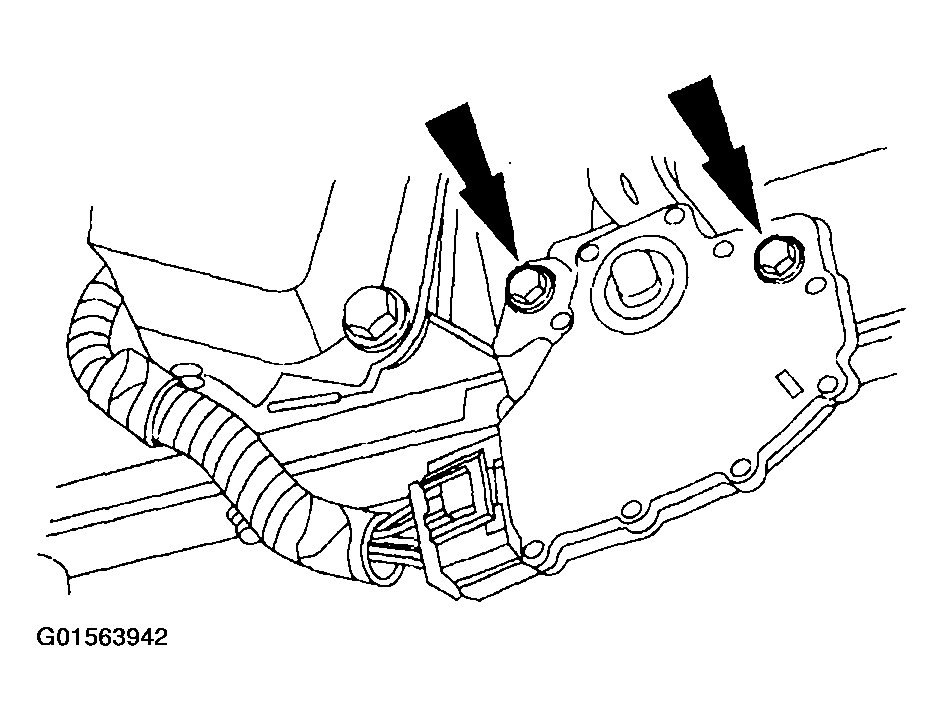

   Fig 2: Loosening Digital TR Sensor Bolts

   Courtesy of FORD MOTOR CO.
NOTE: Make sure that the manual control lever is in the NEUTRAL position.

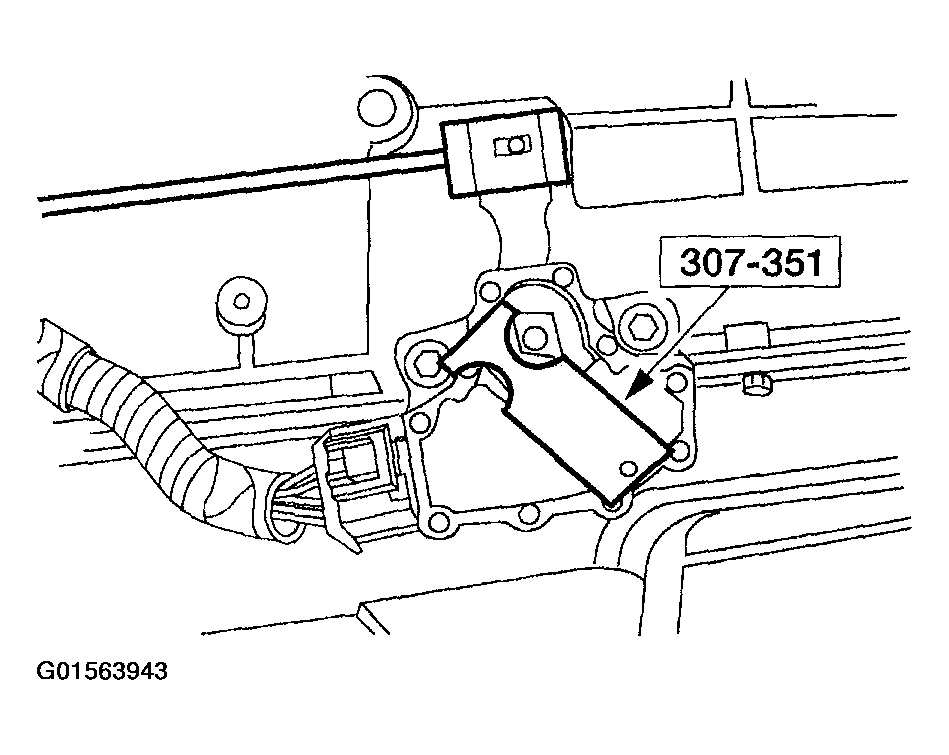

Fig 3: Aligning Digital TR Sensor
Courtesy of FORD MOTOR CO.
3. Using the special tool, align the digital TR sensor.
4. Tighten the bolts.

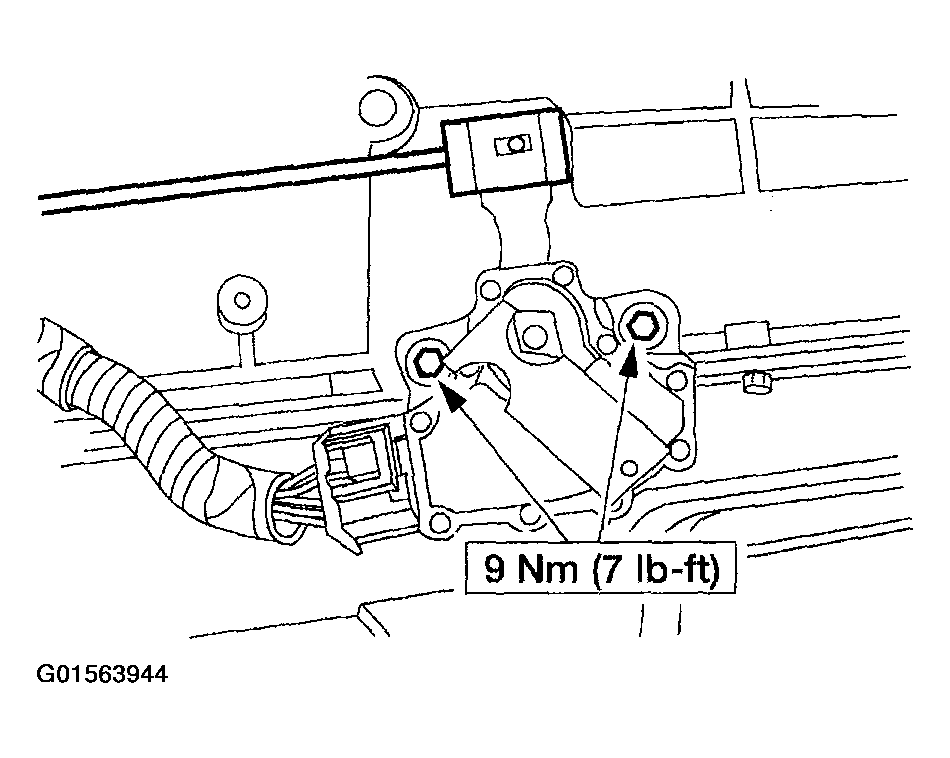

   Fig 4: Tightening Digital TR Sensor Bolts And Torque Specifications

   Courtesy of FORD MOTOR CO.
5. Lower the vehicle.
