Disassembly and Assembly

Remove the output shaft ring gear and the No. 12 thrust bearing.
1. Remove the ring gear.
2. Remove the bearing.

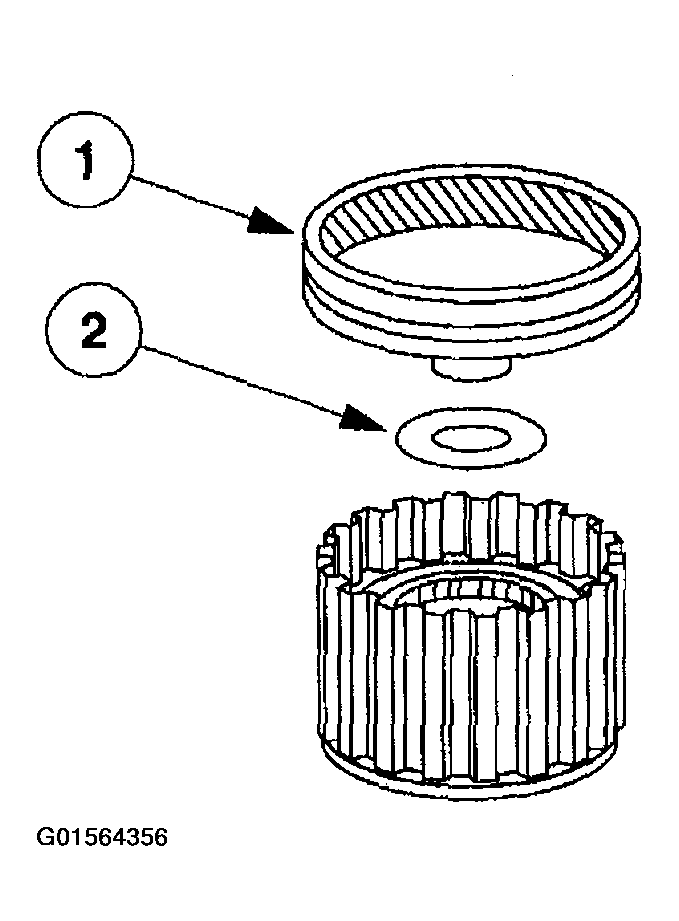

  Fig 1: Removing Output Shaft Ring Gear And No. 12 Thrust Bearing
  Courtesy of FORD MOTOR CO.

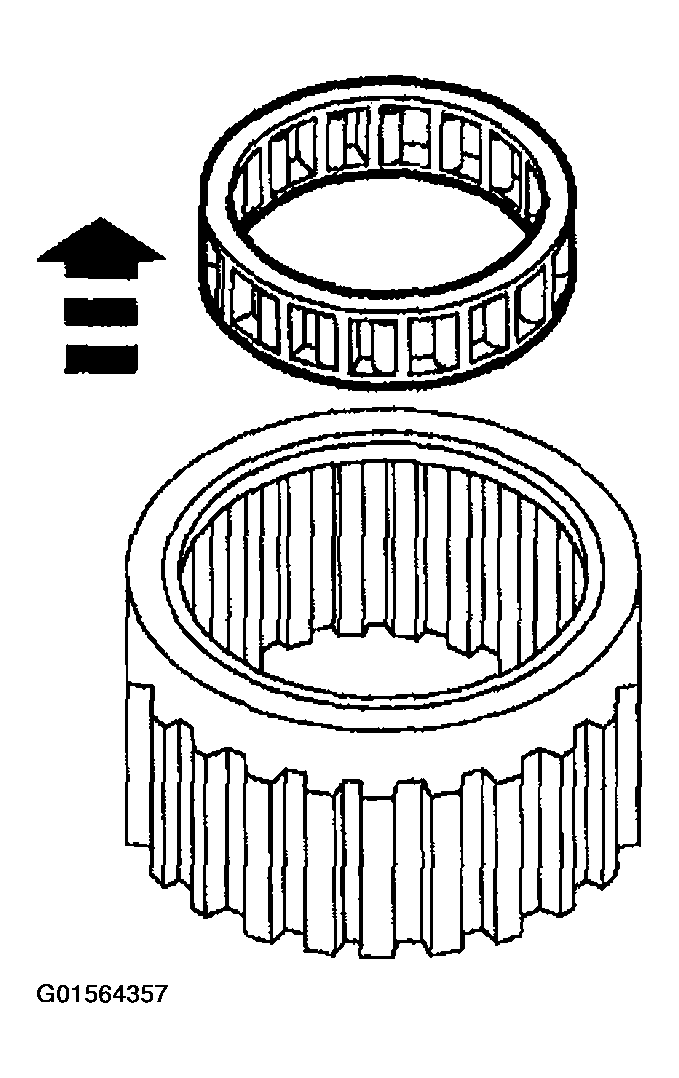

If necessary, remove the low one-way clutch (17 roller) assembly by rotating it counterclockwise to unlock the tabs.

Fig 2: Removing Low One-Way Clutch (17 Roller) Assembly
Courtesy of FORD MOTOR CO.
Inspect the following:
- Reverse clutch hub thrust surfaces for scores.
- Reverse clutch hub splines for wear.
- Outer and inner low/reverse one-way clutch race for scores and damaged surface areas where rollers contact races.
- Rollers and springs for excessive wear or damage.
- Spring and cage.
For assembly, follow the disassembly procedure in reverse order.
