Power Steering System Filling

Material

MATERIAL SPECIFICATION

Item	Specification
Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX	MERCON®

WARNING: Do not mix fluid types. Any mixture or any unapproved fluid can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

Fill the power steering reservoir to the appropriate level.

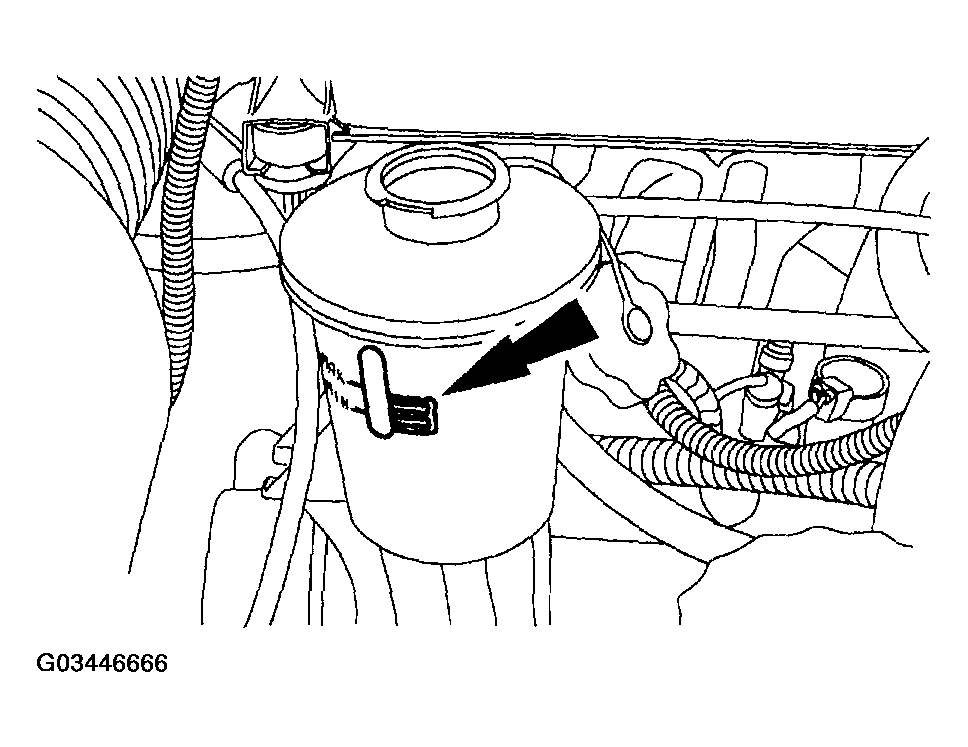

Fig 1: Filling Power Steering Reservoir To Appropriate Level (1 Of 2)
Courtesy of FORD MOTOR CO.
Remove the ignition coil fuse to disable the engine from starting.
Raise the front wheels off the floor. For additional information, refer to JACKING & LIFTING .

CAUTION: Do not operate the starter motor for more than 10 seconds at a time. Damage to the starter motor can result.

Turn the steering wheel from stop to stop while cranking the engine.
Lower the vehicle.

CAUTION: Do not overfill the power steering fluid reservoir.

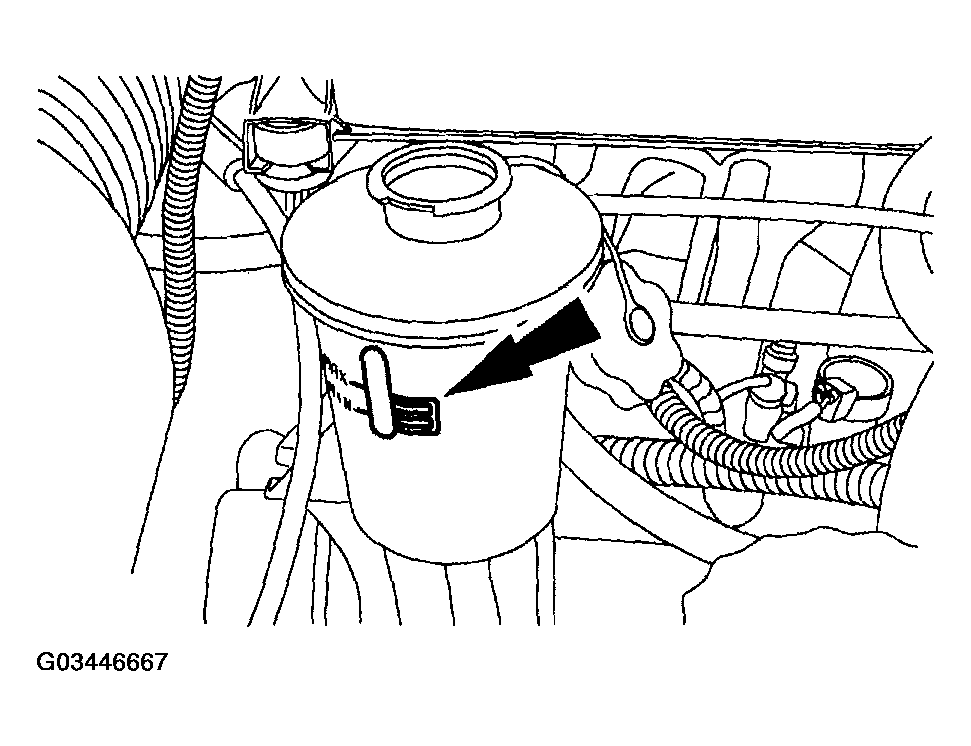

Fig 2: Filling Power Steering Reservoir To Appropriate Level (2 Of 2)

Courtesy of FORD MOTOR CO.

Fill the power steering fluid reservoir to the appropriate level.
Install the ignition coil fuse.

NOTE: If the power steering is noisy and accompanied by evidence of aerated fluid it will be necessary to purge the power steering system. For additional information, refer to POWER STEERING SYSTEM PURGING .

Clear the diagnostic trouble codes (DTCs). For additional information, refer to SELF-DIAGNOSTICS - CNG, FLEX-FUEL & GASOLINE .
- Start the engine and check the system for leaks.
