Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure

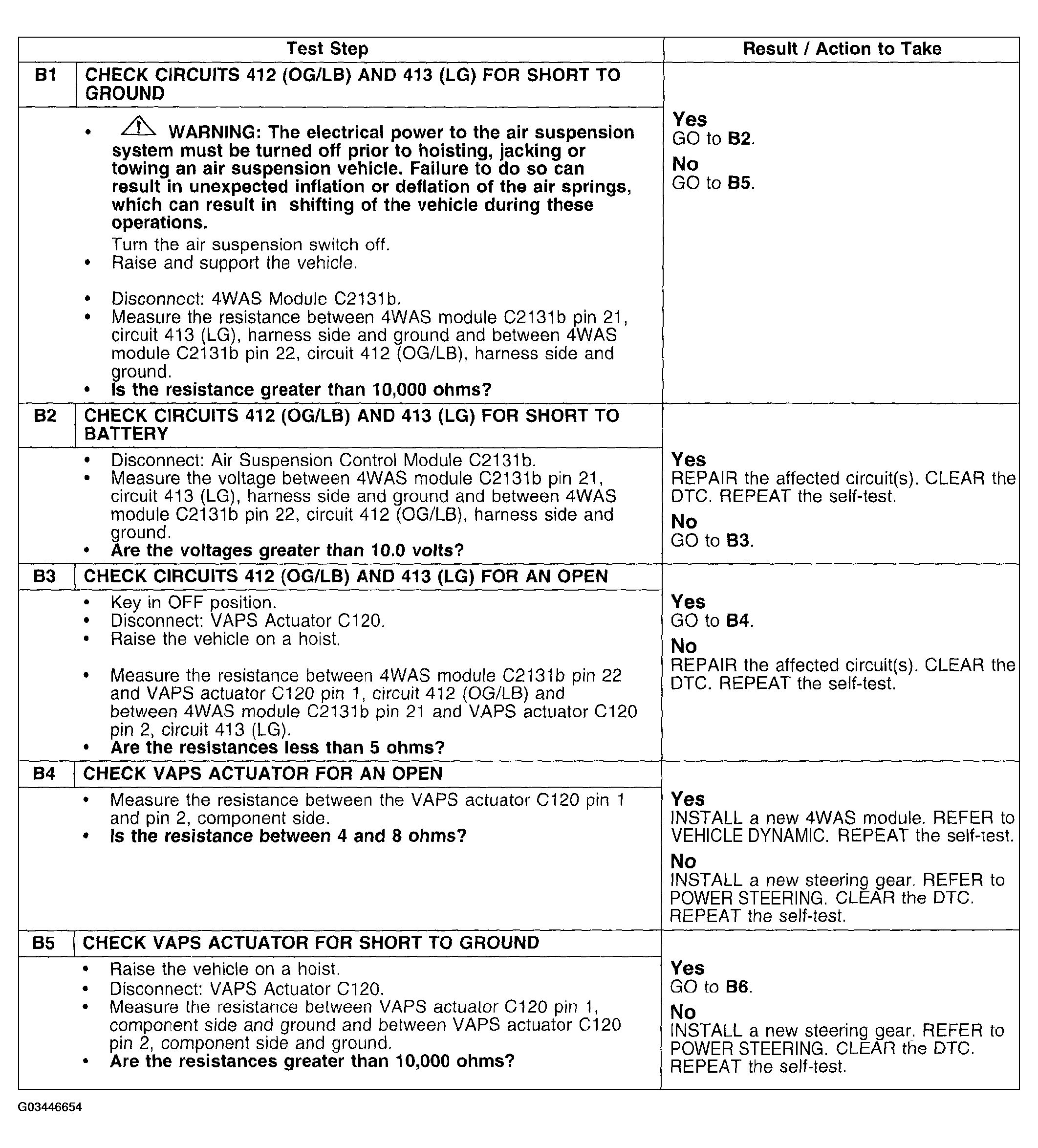

Fig 1: Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure (Step B1 - B5)

Courtesy of FORD MOTOR CO.

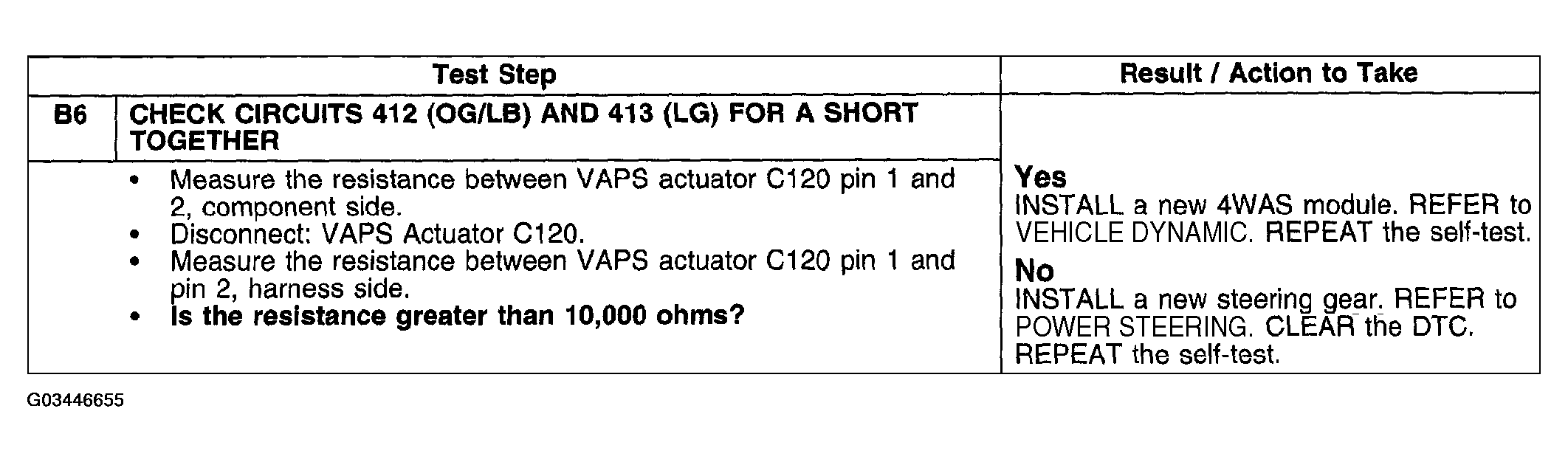

Fig 2: Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure (Step B6)

Courtesy of FORD MOTOR CO.
