Removal And Installation: Photocell

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH and RH windshield side garnish mouldings. For additional information, Refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in Fig 1

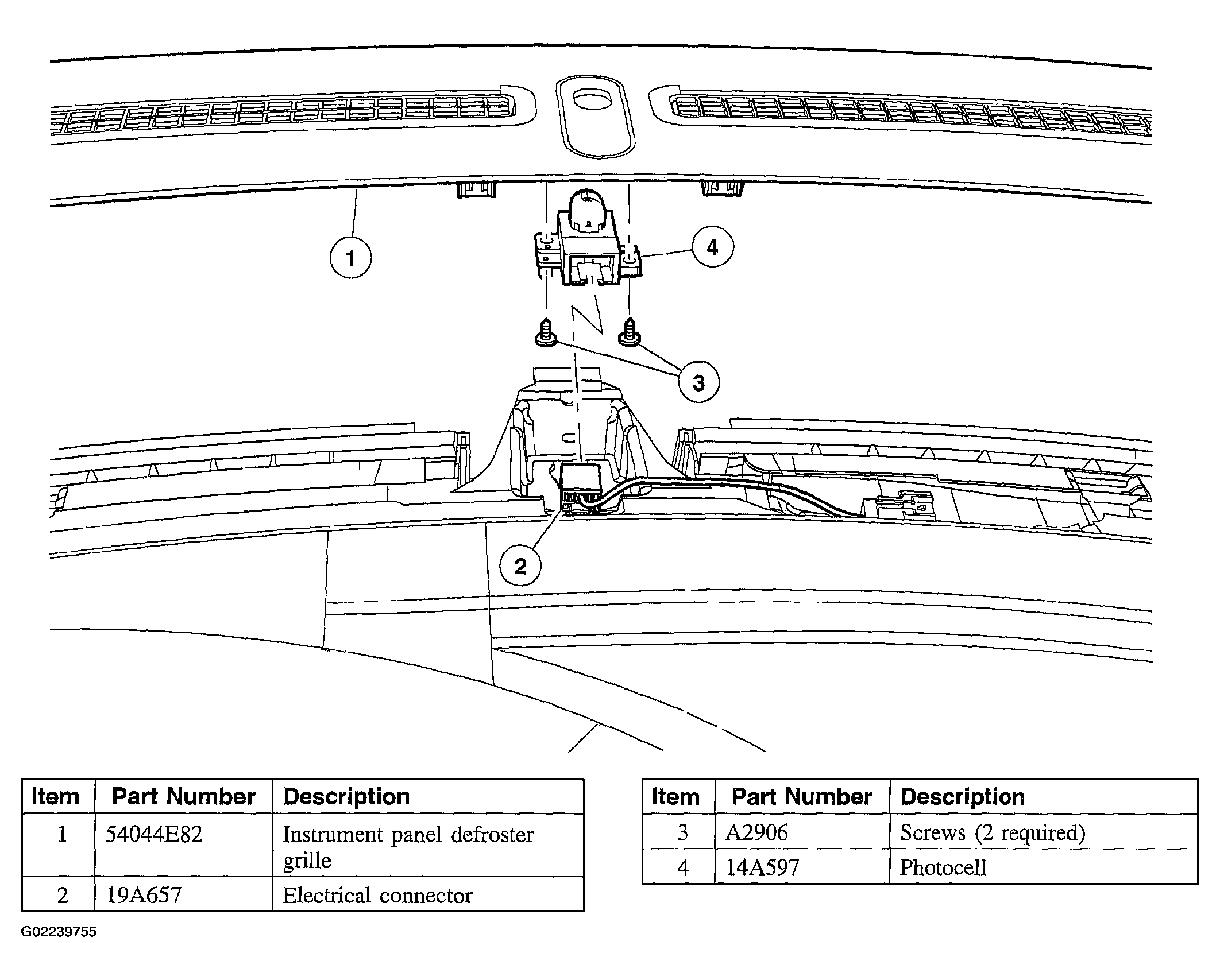

    Fig 1: Removing Sequence Of Photocell
    G02239755Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
