Removal and Installation

  1. Remove the RH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD RH .
  2. Remove the left exhaust manifold. For additional information, refer to EXHAUST MANIFOLD LH .
  3. Remove the bolt.
    Fig 1: Removing Bolt
    G01563092Courtesy of FORD MOTOR CO.
  4. Remove the oil level indicator tube.
    • Install a new O-ring seal.

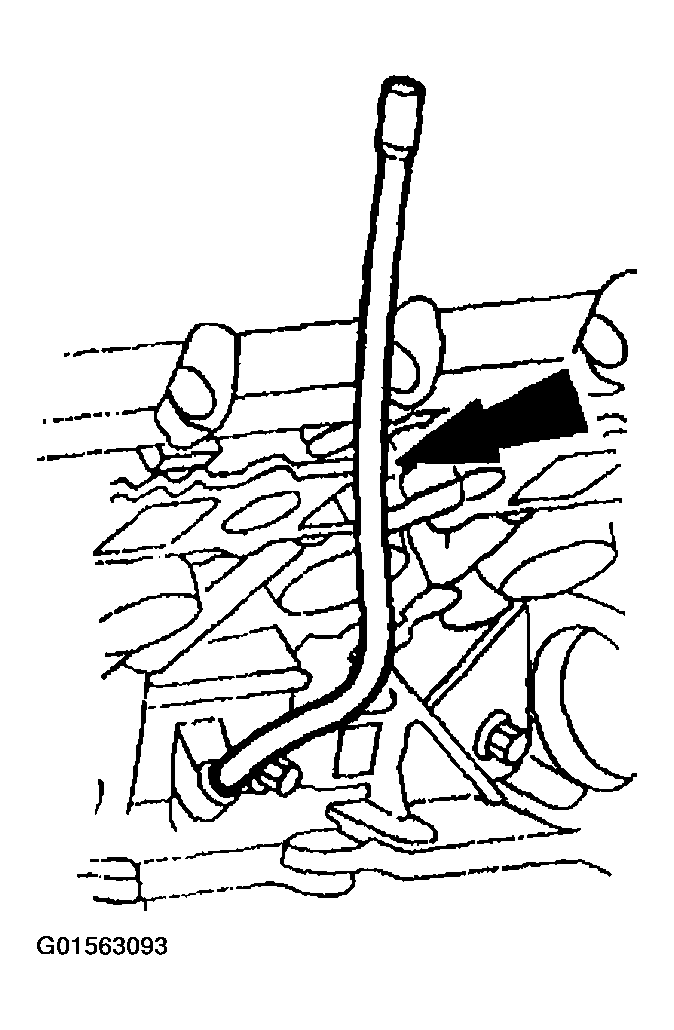

      Fig 2: Removing Oil Level Indicator Tube
      G01563093Courtesy of FORD MOTOR CO.
    5. NOTE: LH shown, RH similar.
    Fig 3: Removing RH Or LH Motor Mount
    G01563094Courtesy of FORD MOTOR CO.
  5. Remove the RH or LH motor mount as needed.
  6. To install, reverse the removal procedure.
