Drive Belt System

The 5.4L (4V) DOHC engine is equipped with a serpentine drive belt. To make sure of maximum life, a new drive belt should be of the same type as originally installed.

• The accessories mounted on the front of the engine are belt-driven by the crankshaft.
• The serpentine drive belt is routed over each accessory pulley, driven by the crankshaft pulley bolted to the crankshaft.

For service procedures, including tensioning, refer to SPECIFICATIONS & DRIVE BELT ROUTING .

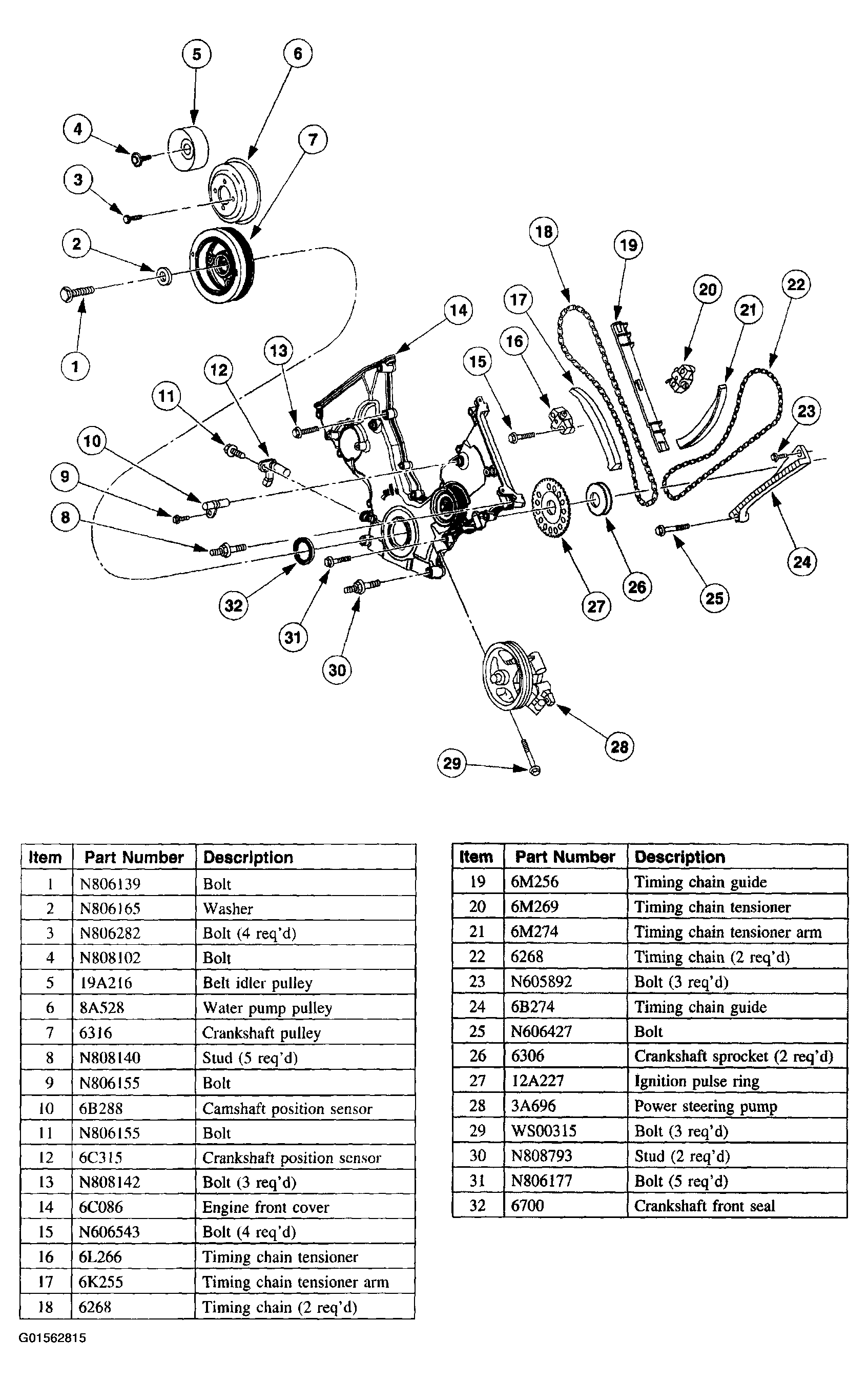

Fig 1: Exploded View Of Timing Assembly Components And Specifications

Courtesy of FORD MOTOR CO.

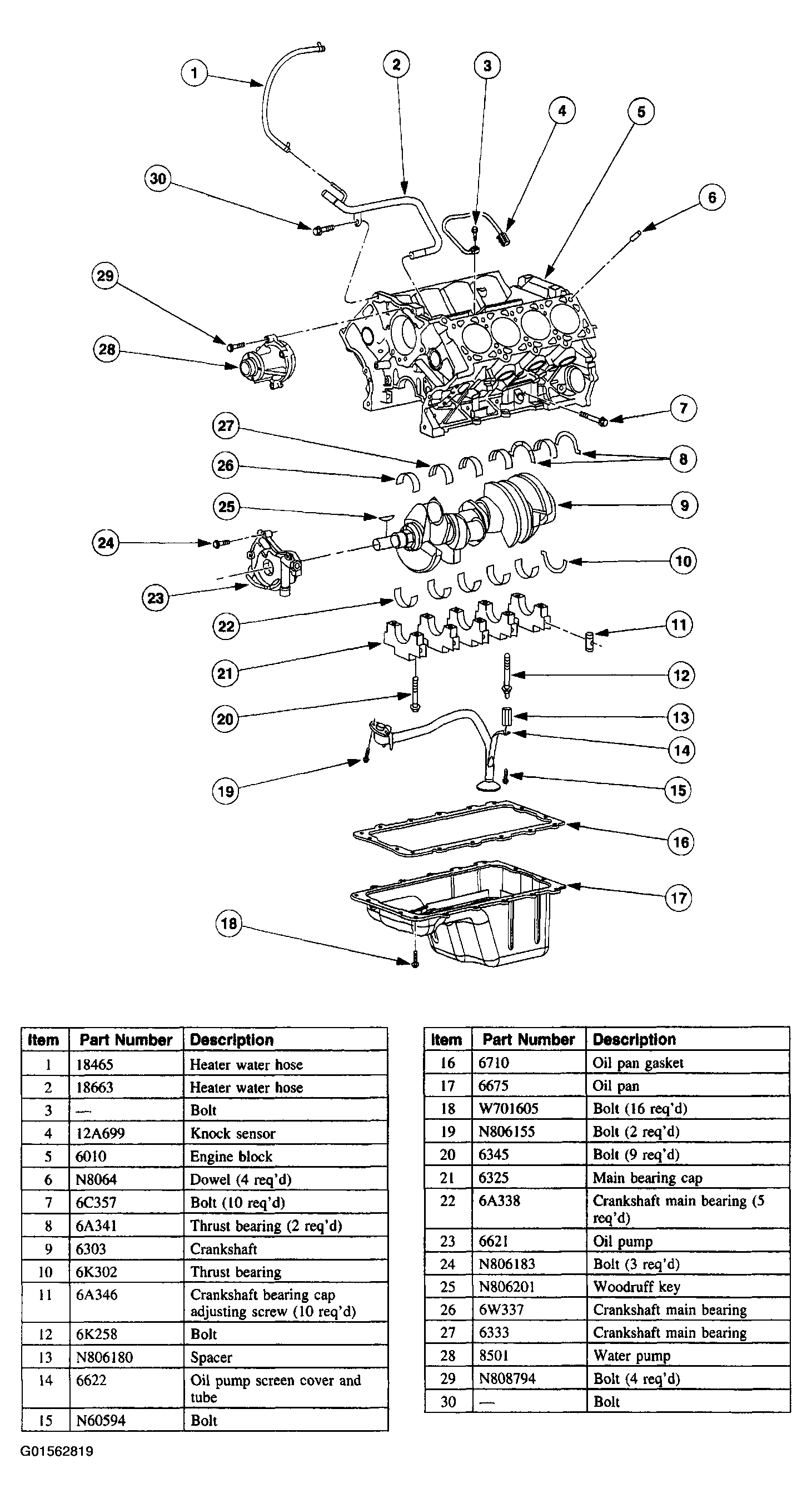

Fig 2: Exploded View Of Engine Block Assembly Components And Specifications

Courtesy of FORD MOTOR CO.

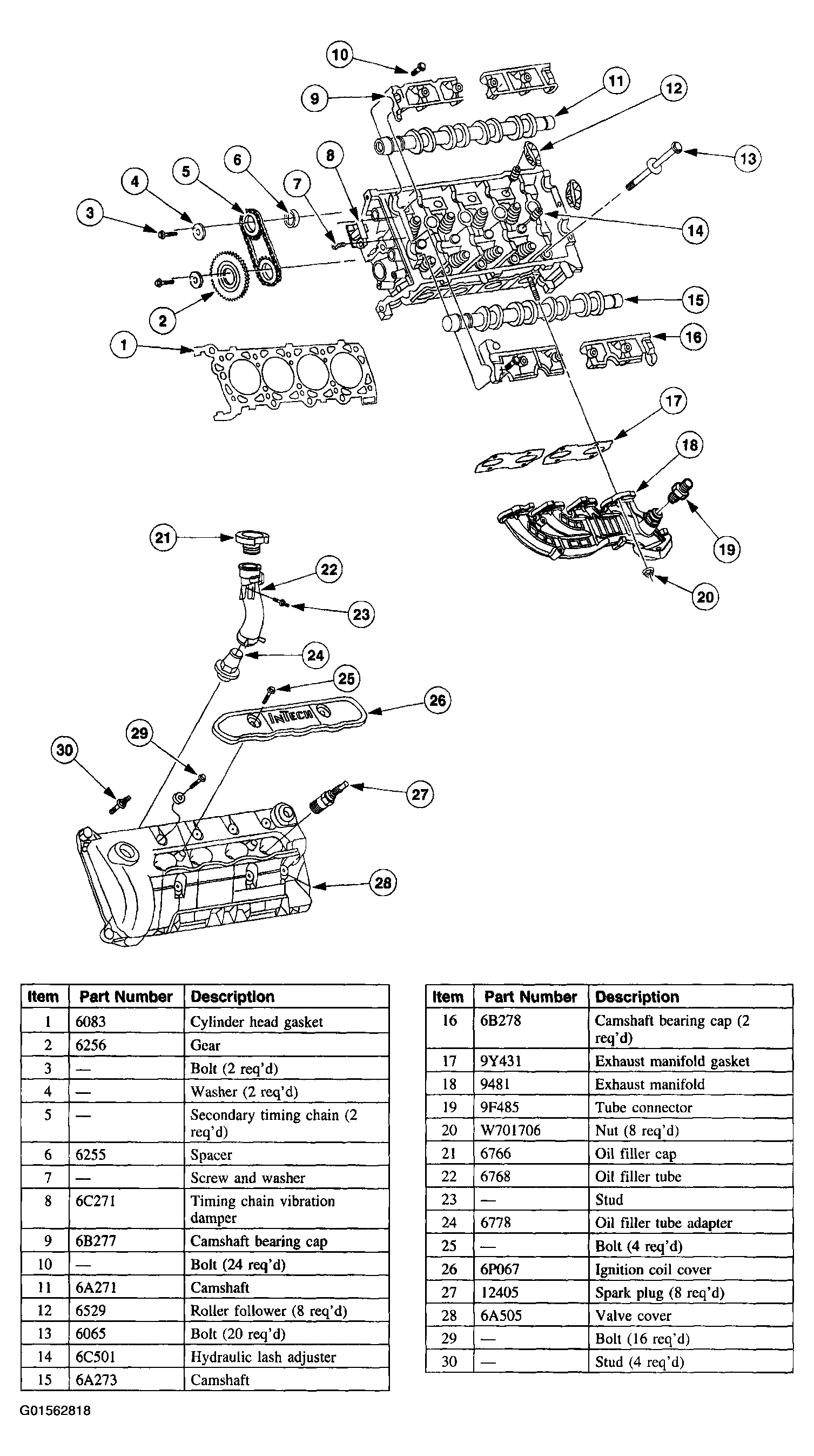

Fig 3: Exploded View Of Engine Head Assembly Components And Specifications

Courtesy of FORD MOTOR CO.

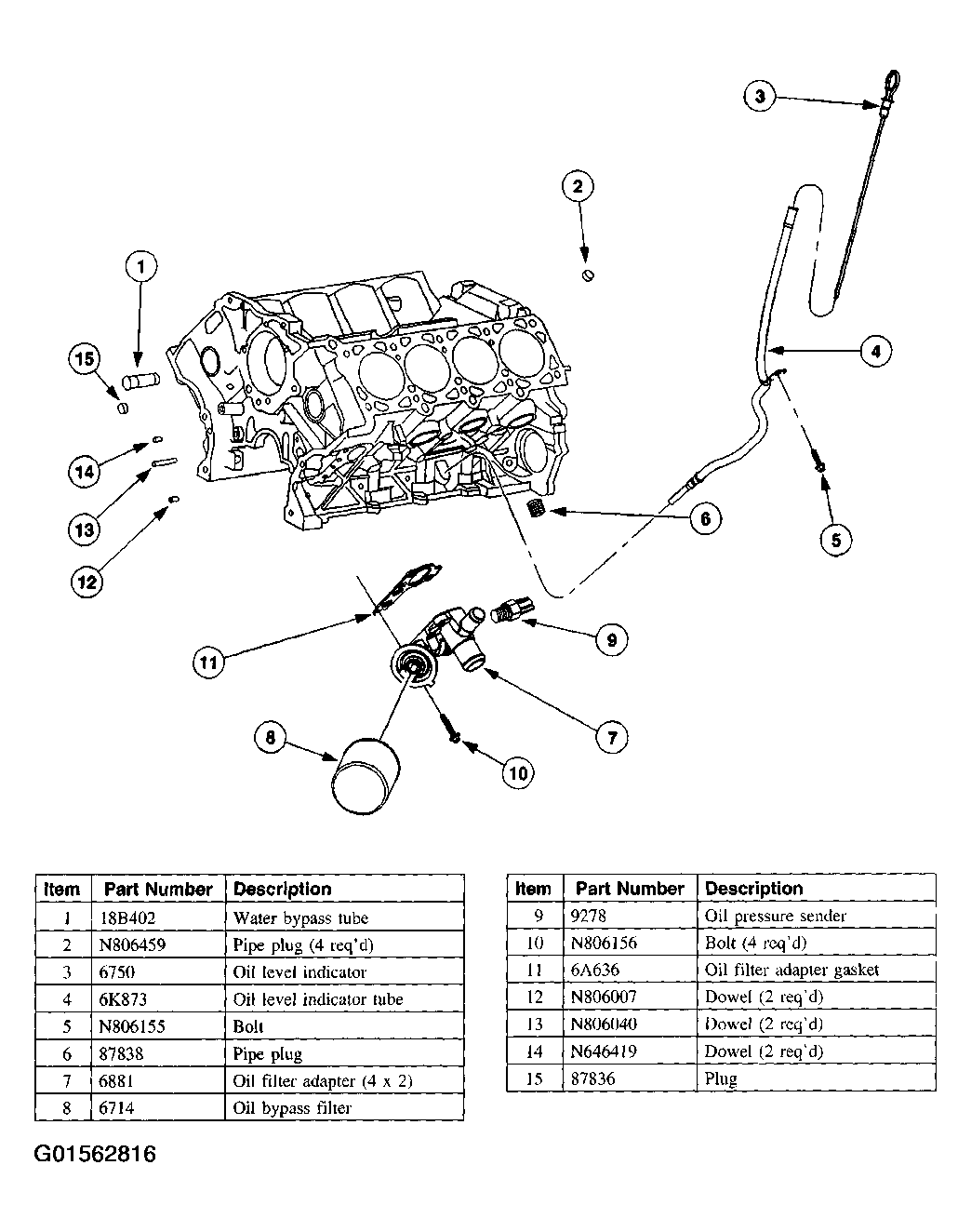

Fig 4: Exploded View Of Engine Block Assembly Components And Specifications

Courtesy of FORD MOTOR CO.

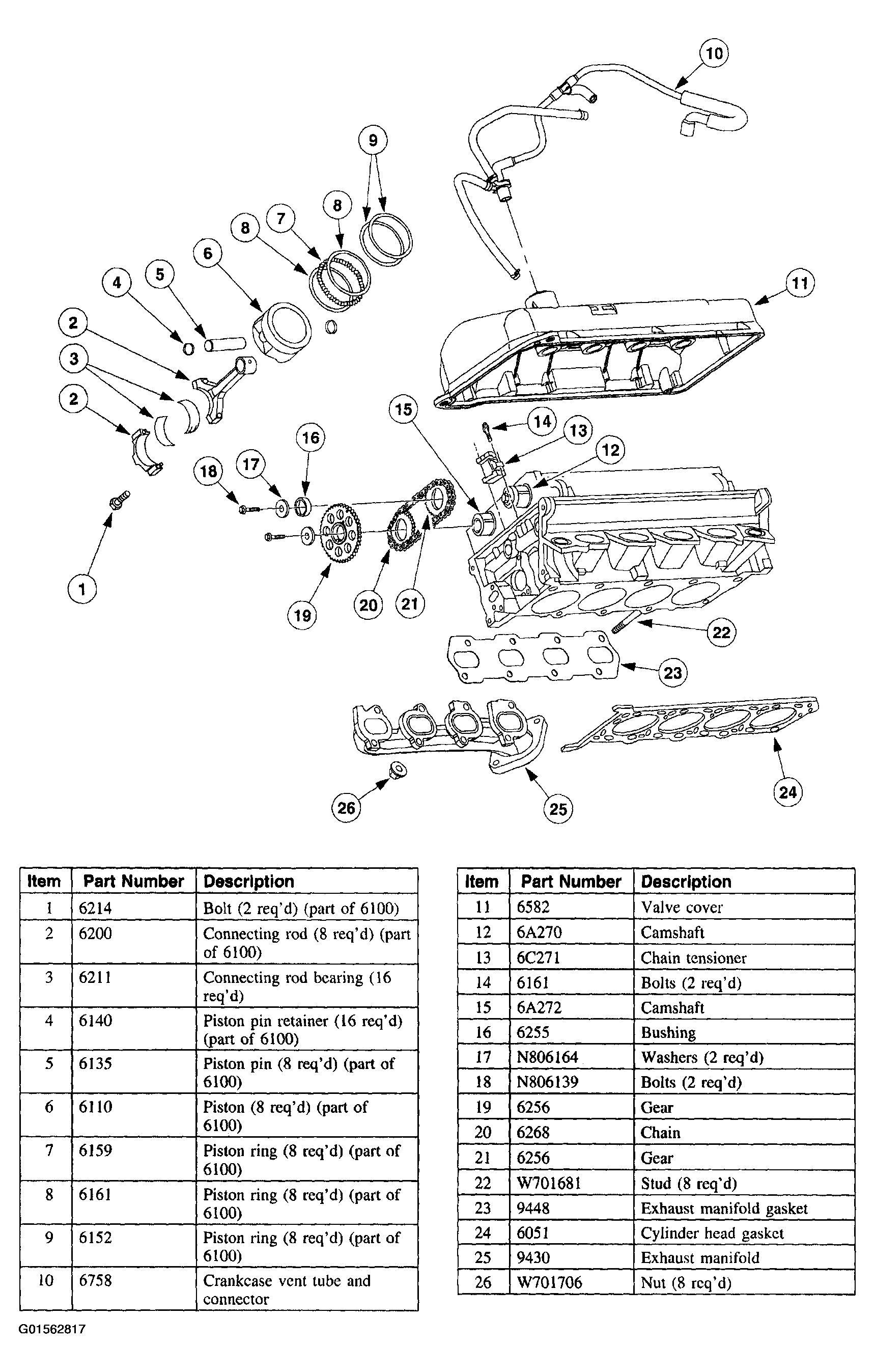

Fig 5: Exploded View Of Engine Head Assembly Components And Specifications

Courtesy of FORD MOTOR CO.

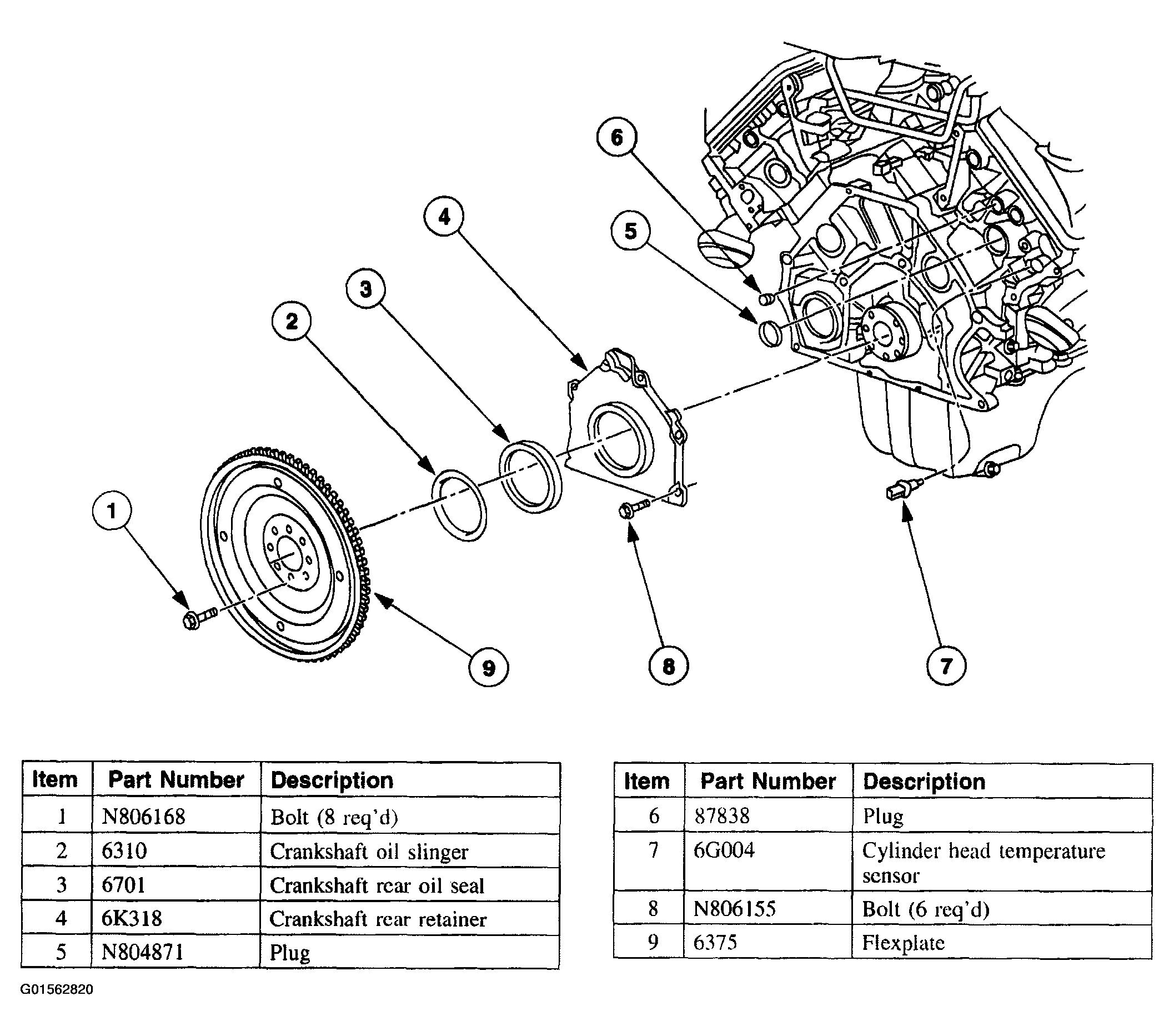

Fig 6: Exploded View Of Flywheel Components And Specifications

Courtesy of FORD MOTOR CO.

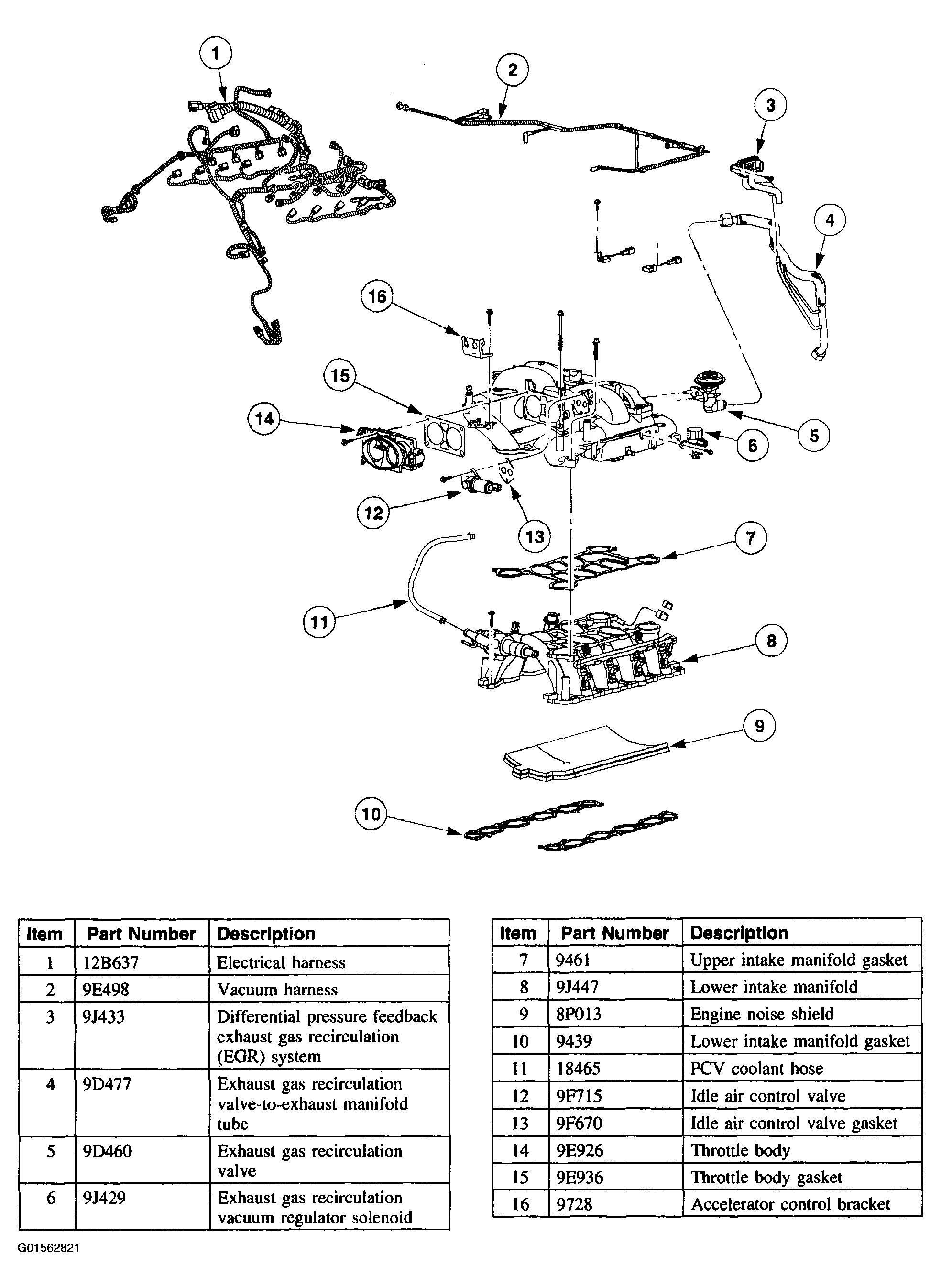

Fig 7: Exploded View Of Intake Manifold Assembly Components And Specifications

Courtesy of FORD MOTOR CO.
