Home >> Lincoln >> 2003 >> Navigator 4WD >> Repair and Diagnosis >> Electrical >> Gauges >> Clock >> Diagnosis And Testing >> Clock >> Pinpoint Tests

Pinpoint Tests

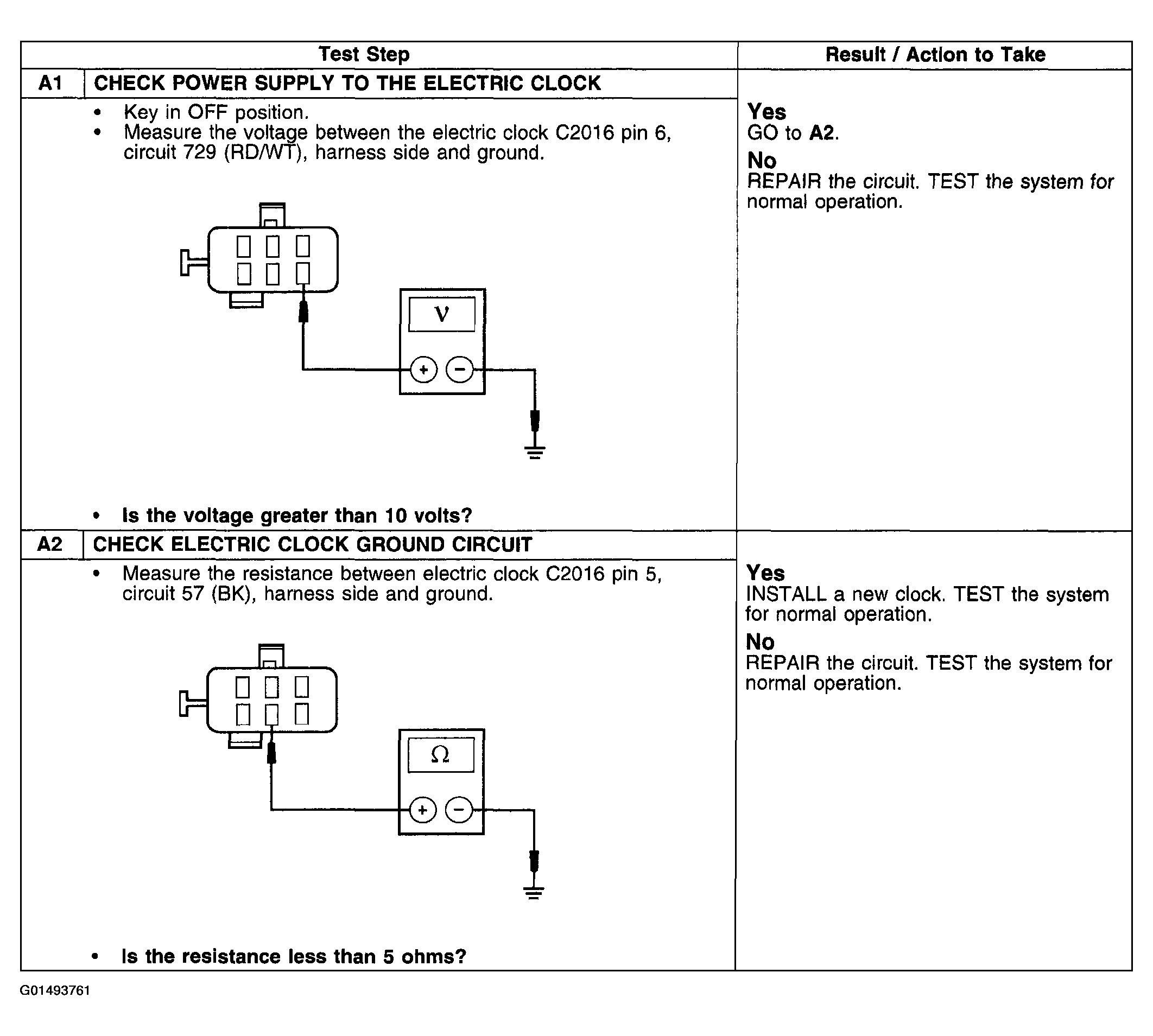

Fig 1: Identifying Pinpoint Test A: Clock Operation Is Erratic/Inoperative
G01493761Courtesy of FORD MOTOR CO.
