Stability Assist Calibration List

NOTE: The need to recalibrate the stability assist module is indicated by the active/fail lamp flashing and the presence of DTC C1998. For additional information, refer to the Stability Assist Module Calibration section for other service actions requiring recalibration. The lamp will flash after the DTCs on the stability assist calibration list are cleared.

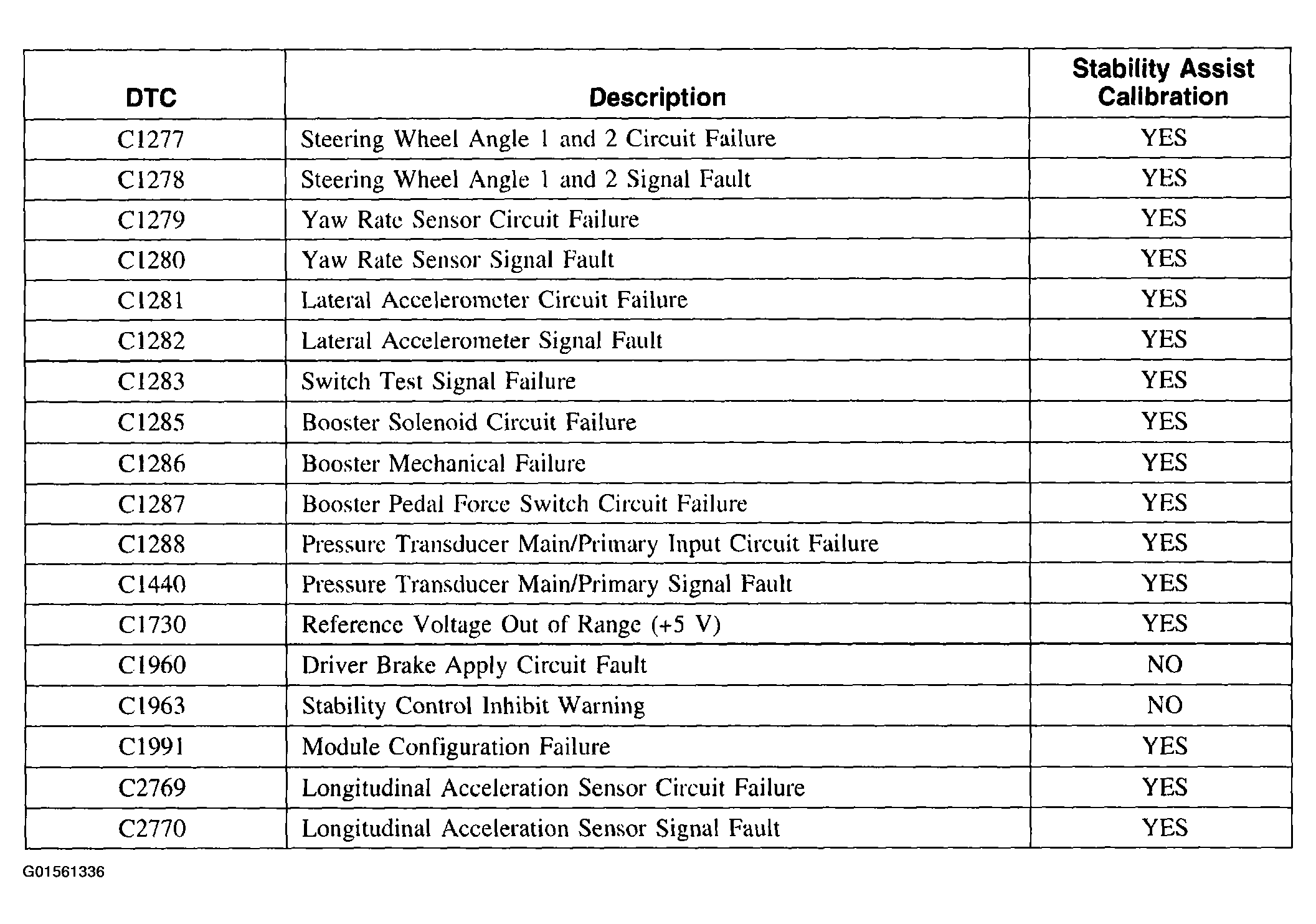

Fig 1: Identifying Stability Assist Calibration List
G01561336Courtesy of FORD MOTOR CO.
