Pinpoint Test Q: DTC C1998 IVD Sensor And Stability Assist Module Calibration

NOTE: Stability assist lamp will flash when calibration is required. IVD calibration is required after certain DTCs are cleared.

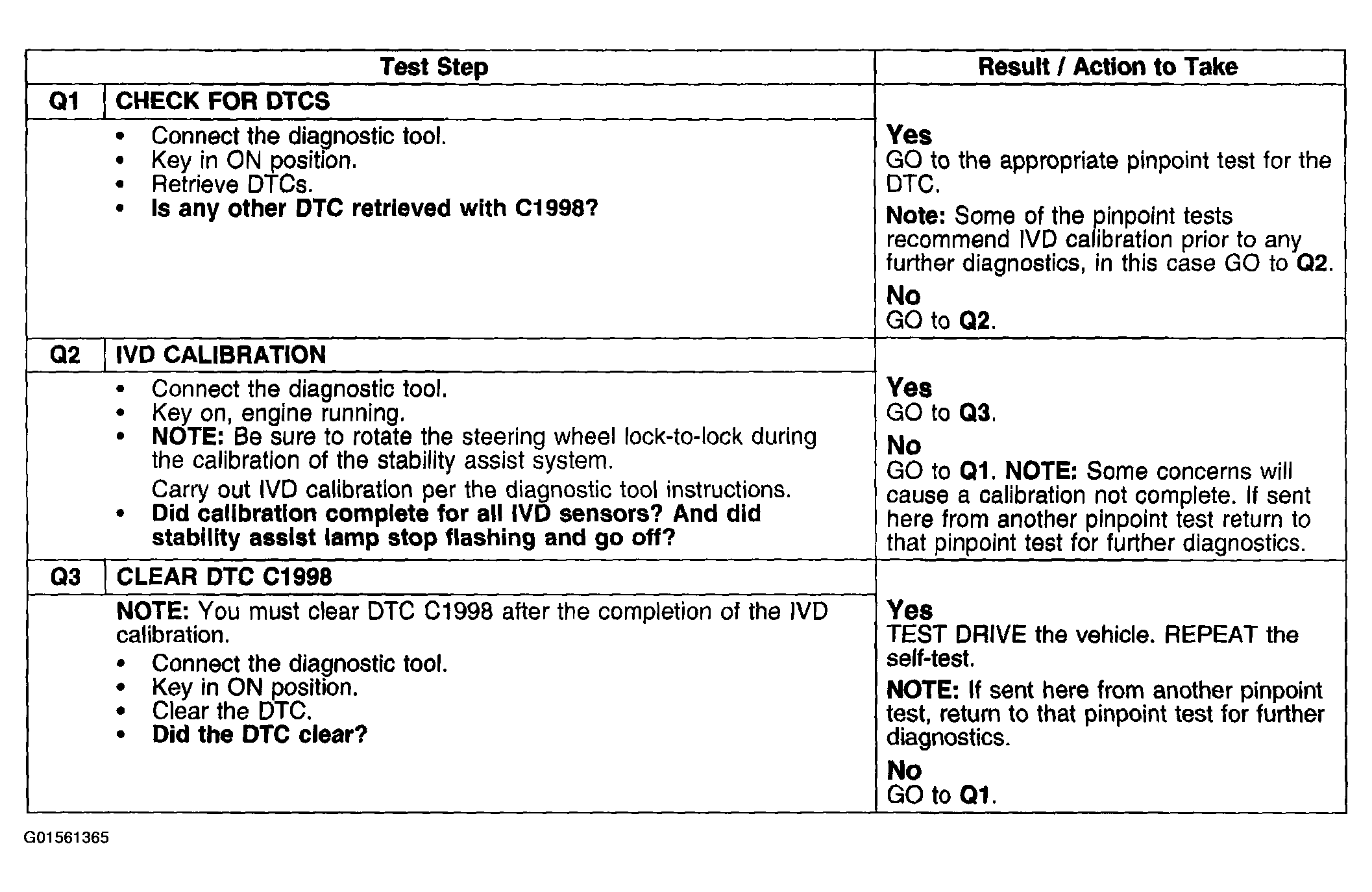

Fig 1: Pinpoint Test Q: DTC C1998 IVD Sensor And Stability Assist Module Calibration
G01561365Courtesy of FORD MOTOR CO.
