Lumbar Control Switch: Removal
WARNING:
The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe pretensioner electrical connectors. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Deactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
-
Remove the 40 percent seat. For additional information, refer to FRONT SEAT - 40 PERCENT .
- Access and remove the front side shield screw.

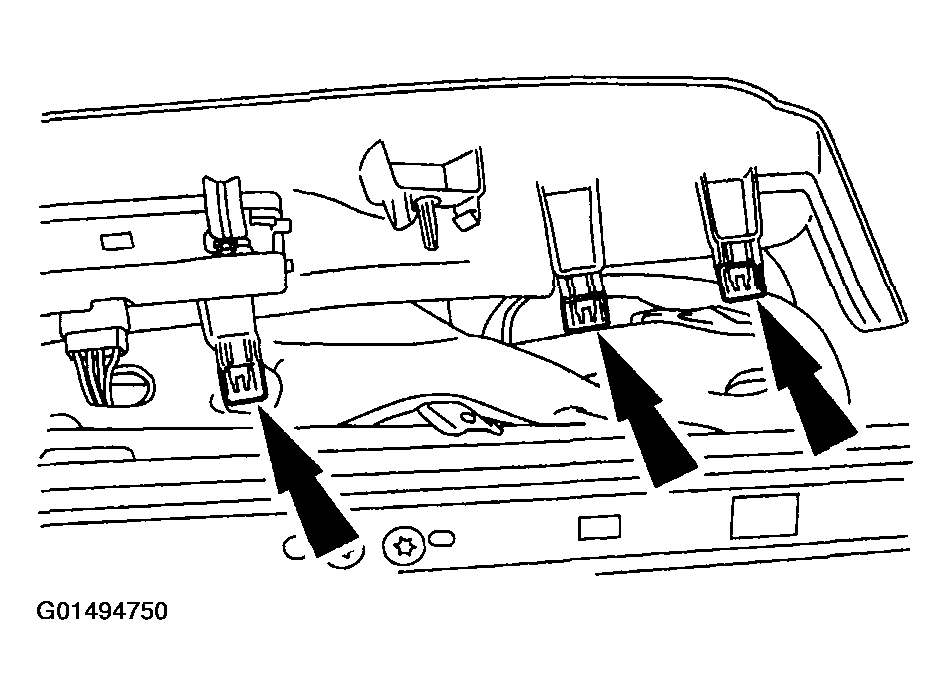

- Pull out from the bottom and rear side of side shield to release the three retainer clips.

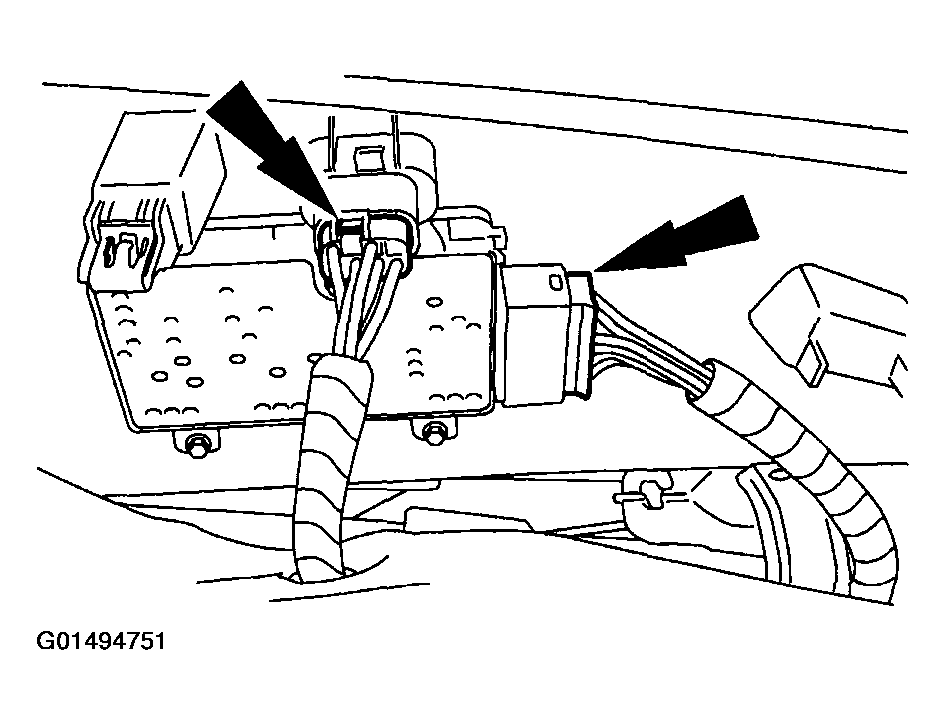

- Disconnect the power lumbar switch and 8-way power seat switch electrical connectors.
- Pinch retainer in and push from the rear of power lumbar switch to remove the switch from the side shield.
WARNING:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
The front impact severity sensor is located at the bottom of the hood latch support bracket.
The first row side impact sensors (if equipped) are located in the first row doors, behind the door trim panel.
The second row side impact sensors (if equipped) are located at or near the base of the C-pillars.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
The front impact severity sensor is located at the bottom of the hood latch support bracket.
The first row side impact sensors (if equipped) are located in the first row doors, behind the door trim panel.
The second row side impact sensors (if equipped) are located at or near the base of the C-pillars.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in AIR BAG RESTRAINT SYSTEMS
.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
