Pinpoint Test F Chart: Flash Code 2 -Brake Pedal Position Switch Circuit Failure

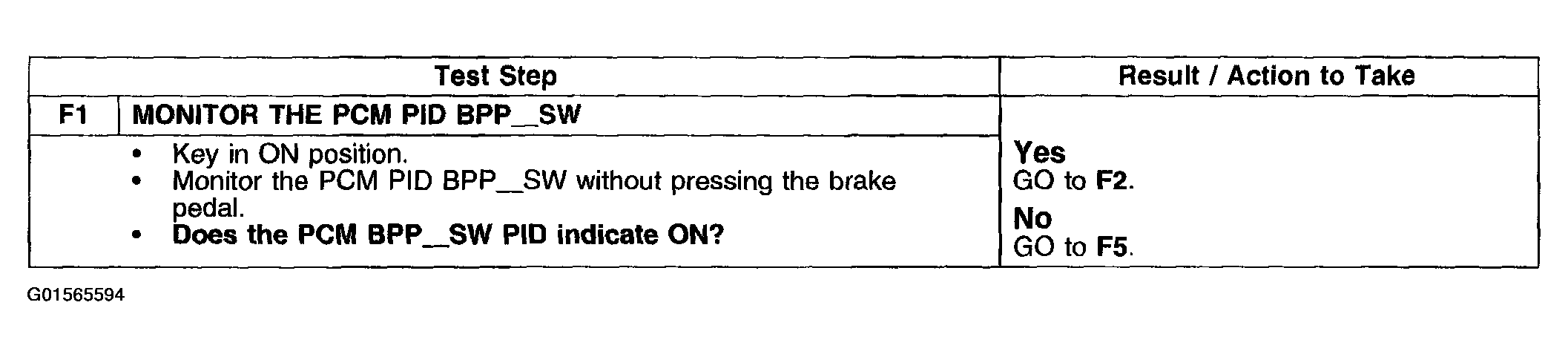

Fig 1: Pinpoint Test F Chart: Flash Code 2 - Brake Pedal Position Switch Circuit Failure (F1)
G01565594Courtesy of FORD MOTOR CO.

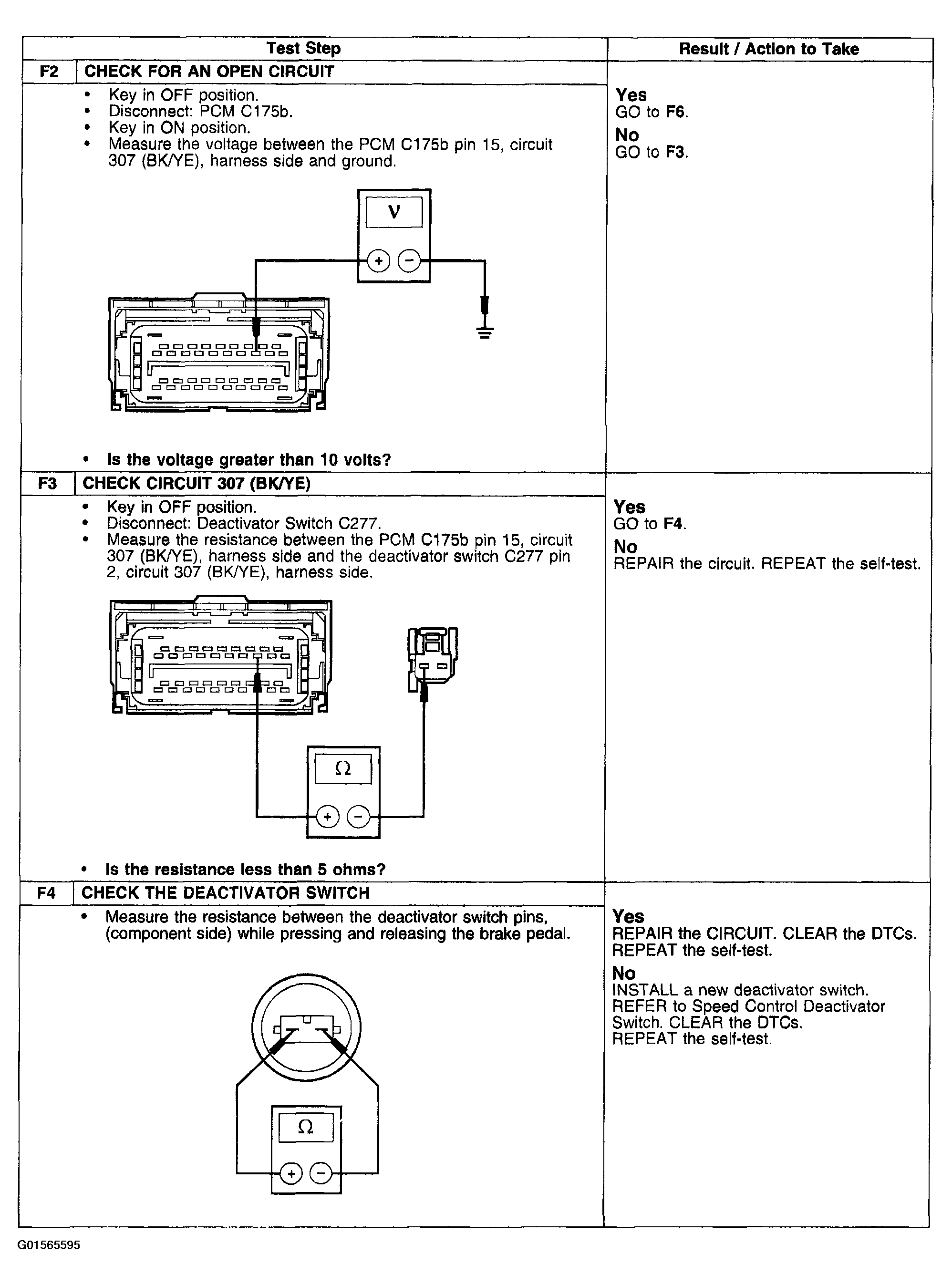

Fig 2: Pinpoint Test F Chart: Flash Code 2 - Brake Pedal Position Switch Circuit Failure (F2-F4)
G01565595Courtesy of FORD MOTOR CO.

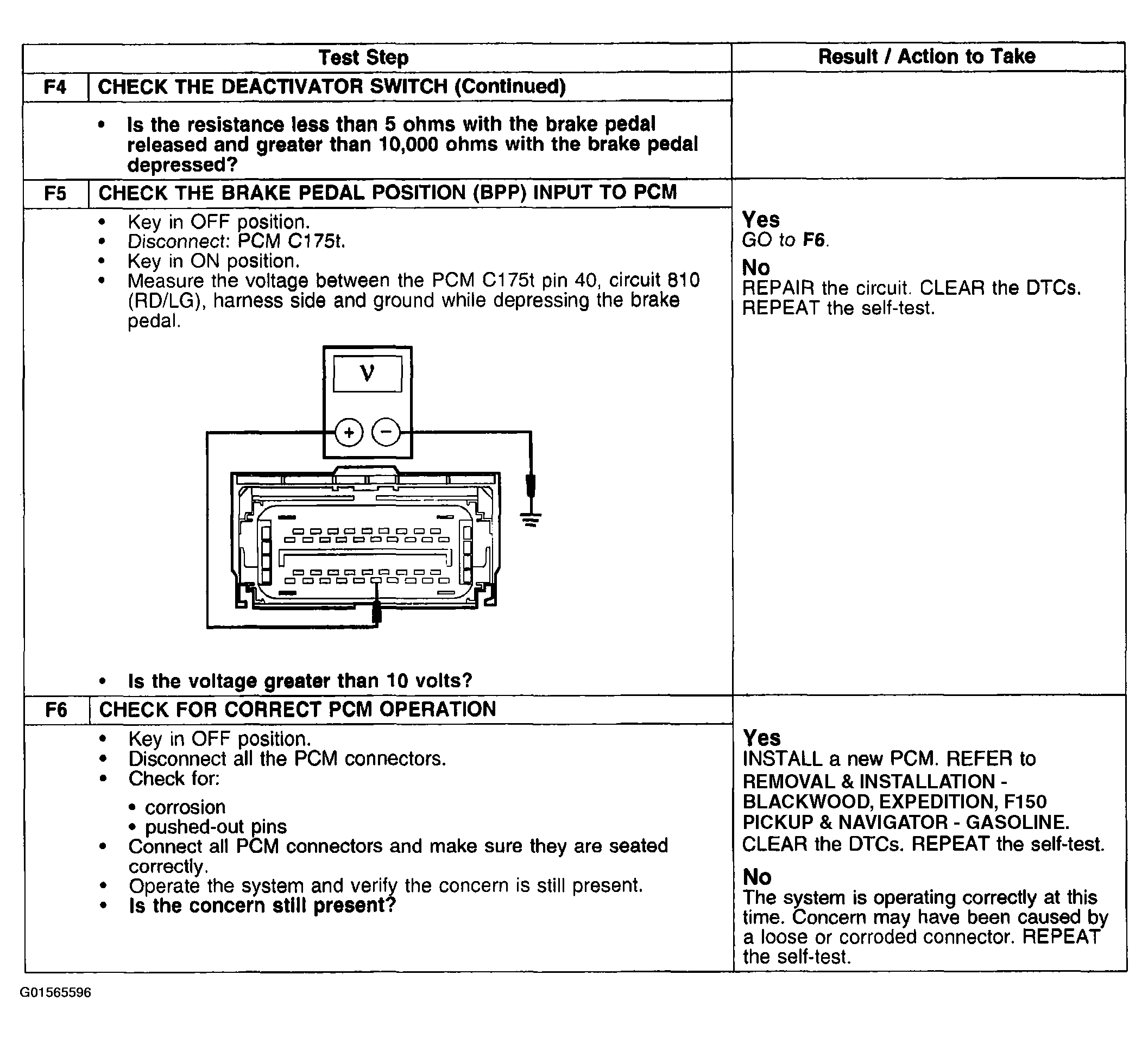

Fig 3: Pinpoint Test F Chart: Flash Code 2 - Brake Pedal Position Switch Circuit Failure (F4-F6)
G01565596Courtesy of FORD MOTOR CO.
