Pinpoint Test G Chart - Transmission Control Switch Is Inoperative

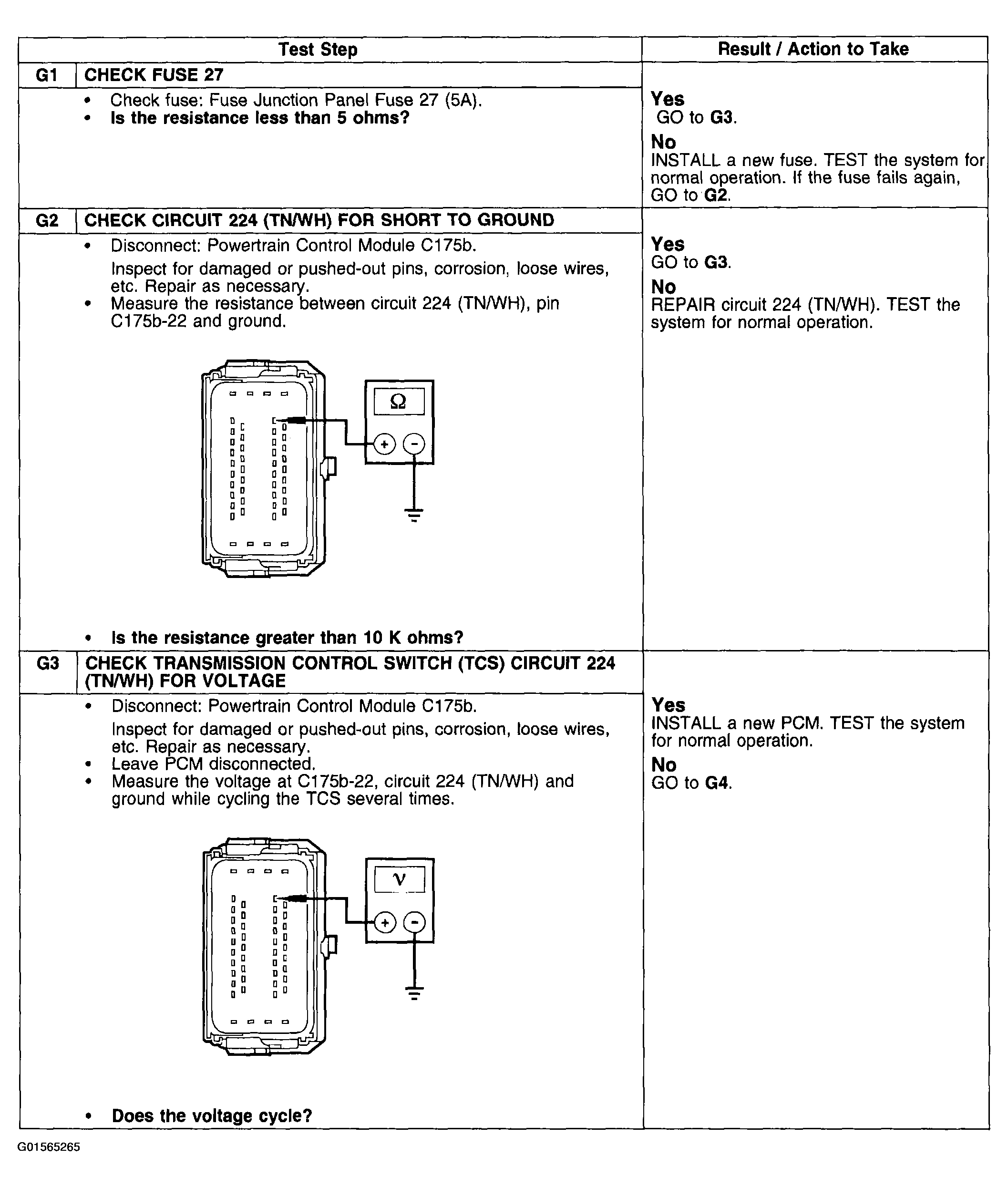

Fig 1: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G1-G3)
G01565265Courtesy of FORD MOTOR CO.

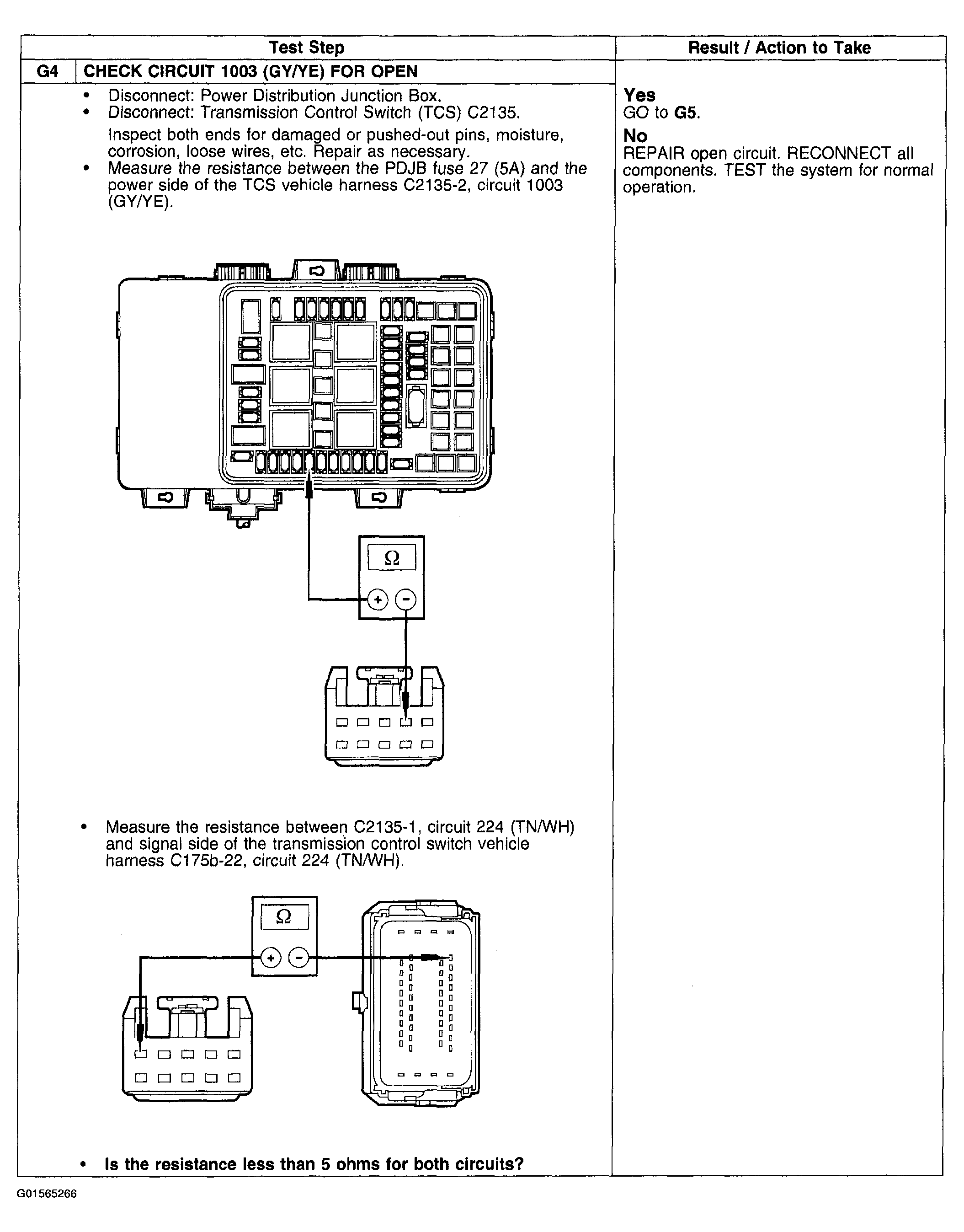

Fig 2: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G4)
G01565266Courtesy of FORD MOTOR CO.

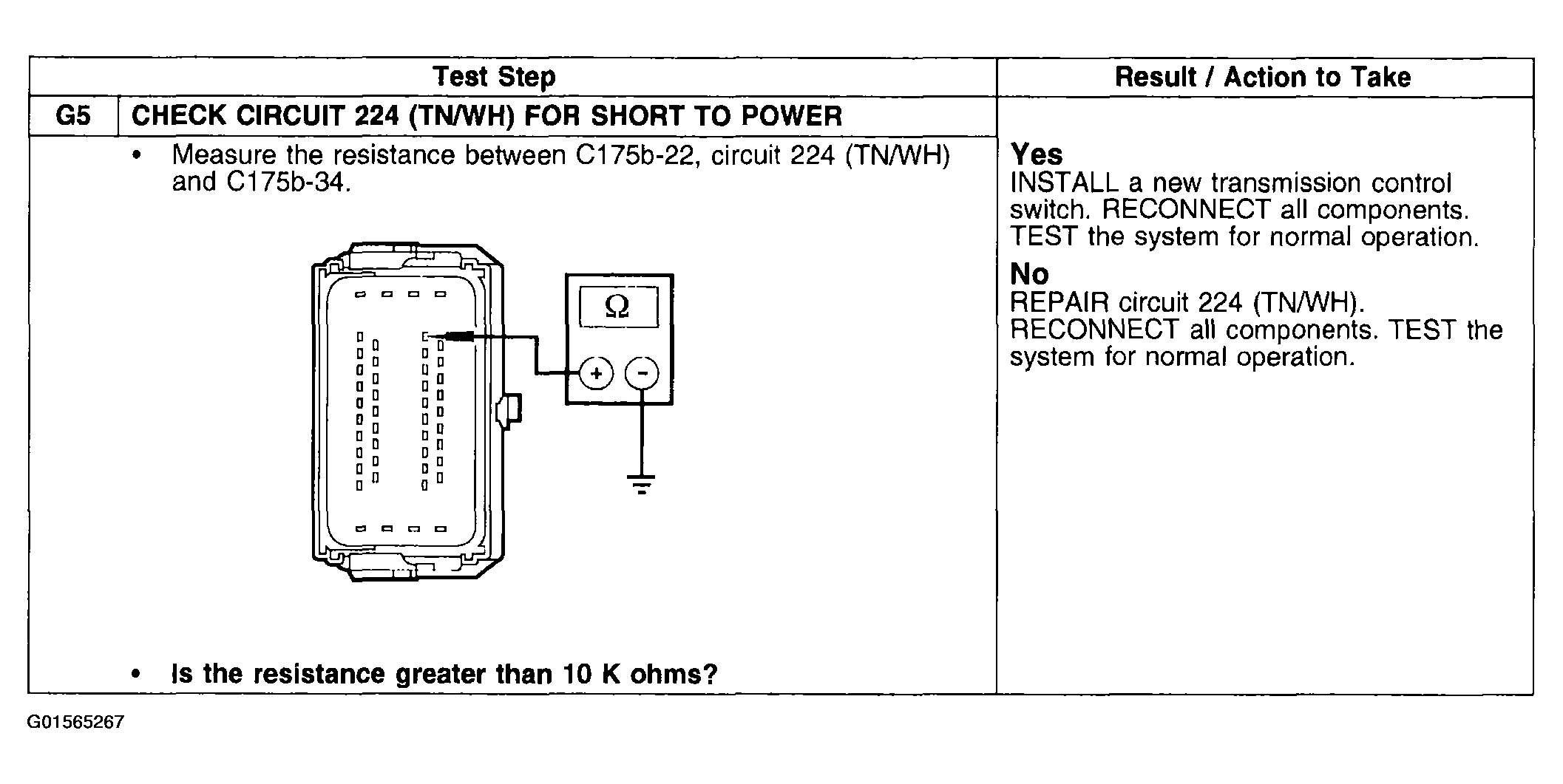

Fig 3: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G5)
G01565267Courtesy of FORD MOTOR CO.
