Pinpoint Test A: No Communication With The 4WAS Module/Unable To Enter Self-Test

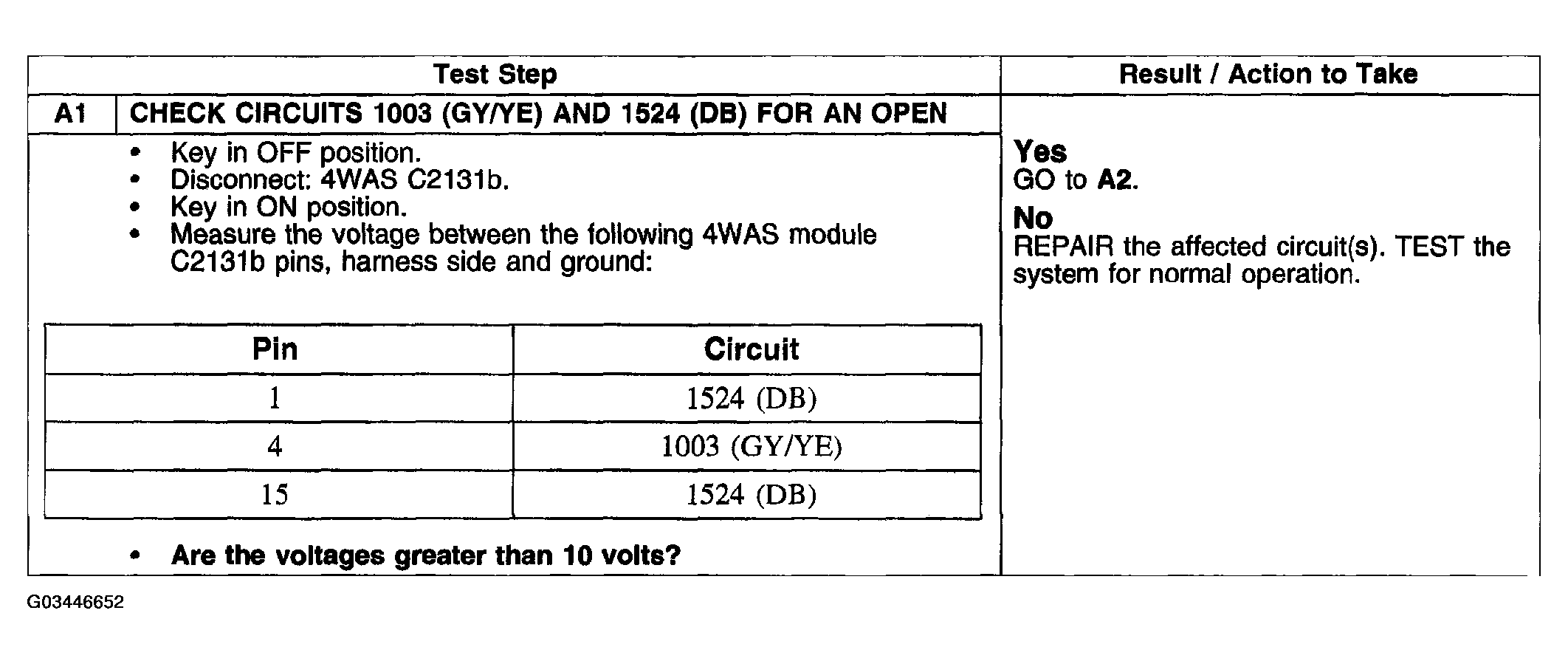

Fig 1: Pinpoint Test A: No Communication With 4WAS Module/Unable To Enter Self-Test (Step A1)
G03446652Courtesy of FORD MOTOR CO.

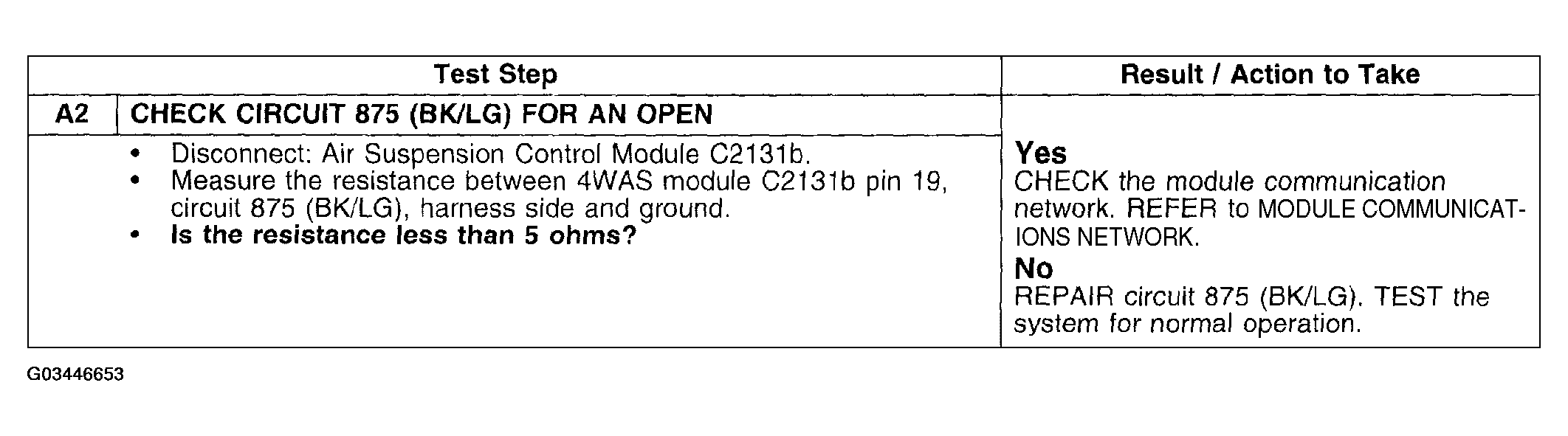

Fig 2: Pinpoint Test A: No Communication With 4WAS Module/Unable To Enter Self-Test (Step A2)
G03446653Courtesy of FORD MOTOR CO.
