Pinpoint Test G Chart: Flash Code 3-Deactivator Switch Circuit Failure

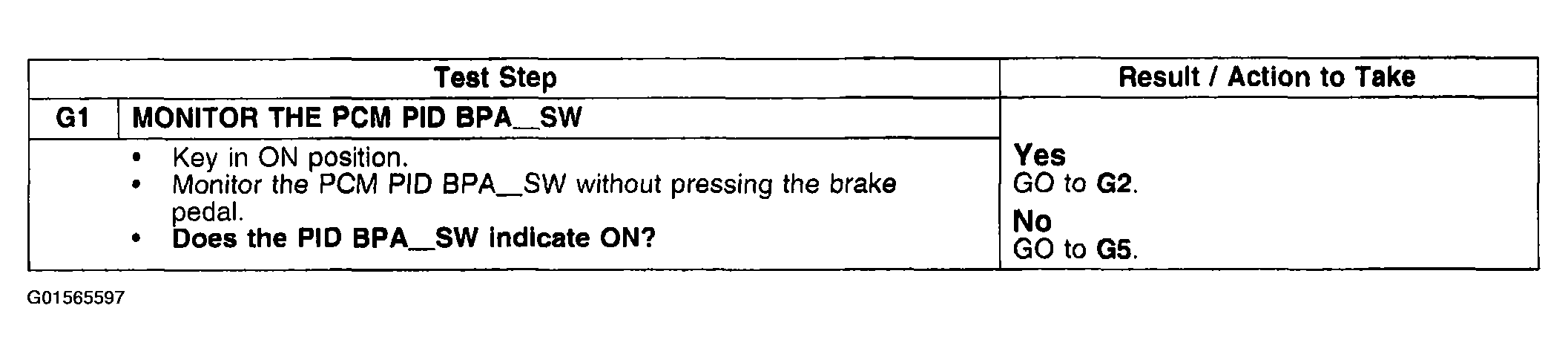

Fig 1: Pinpoint Test G Chart: Flash Code 3- Deactivator Switch Circuit Failure (G1)
G01565597Courtesy of FORD MOTOR CO.

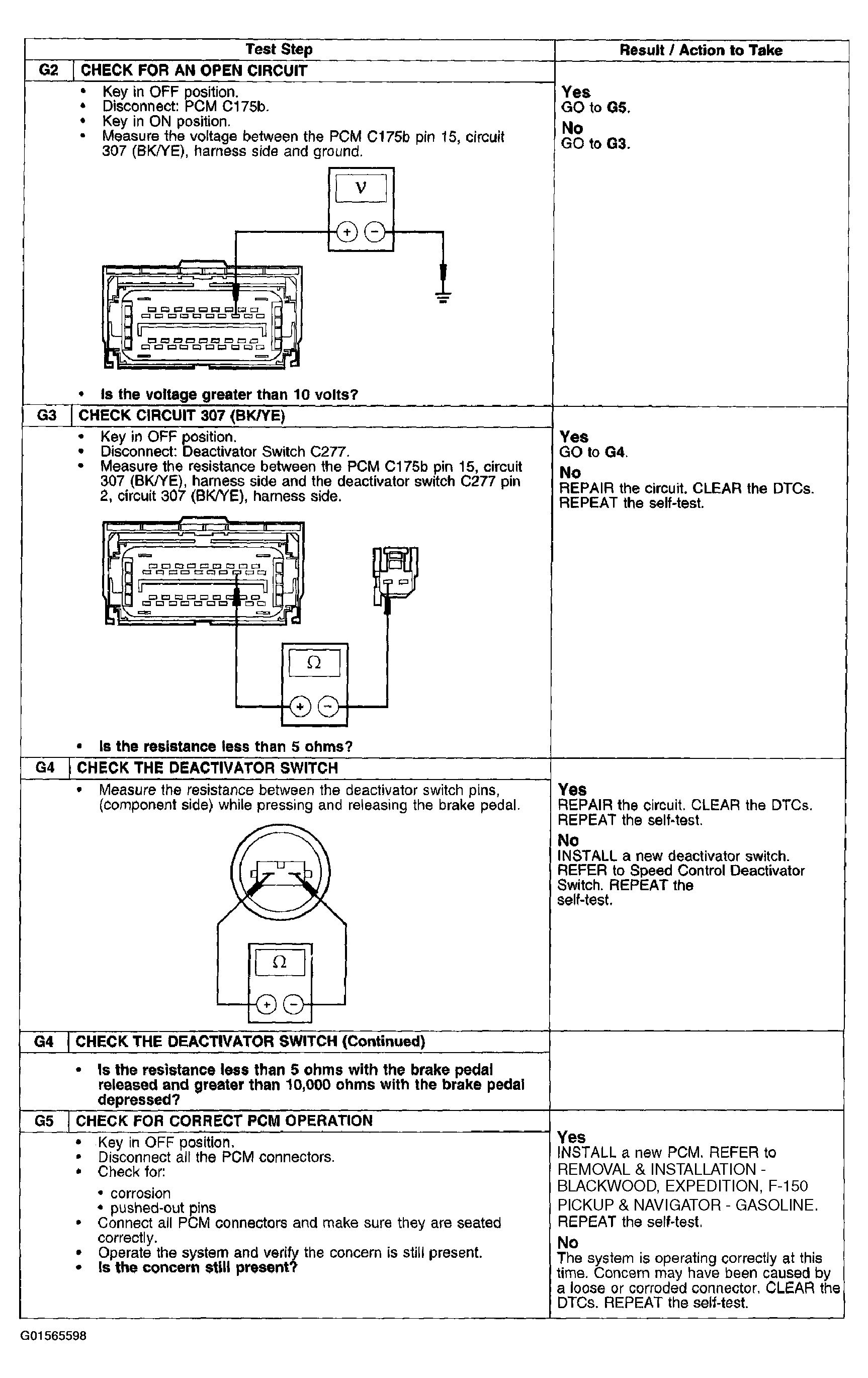

Fig 2: Pinpoint Test G Chart: Flash Code 3- Deactivator Switch Circuit Failure (G2-G4)
G01565598Courtesy of FORD MOTOR CO.
