Pinpoint Test B: No Communication With Driver Seat Module (DSM)

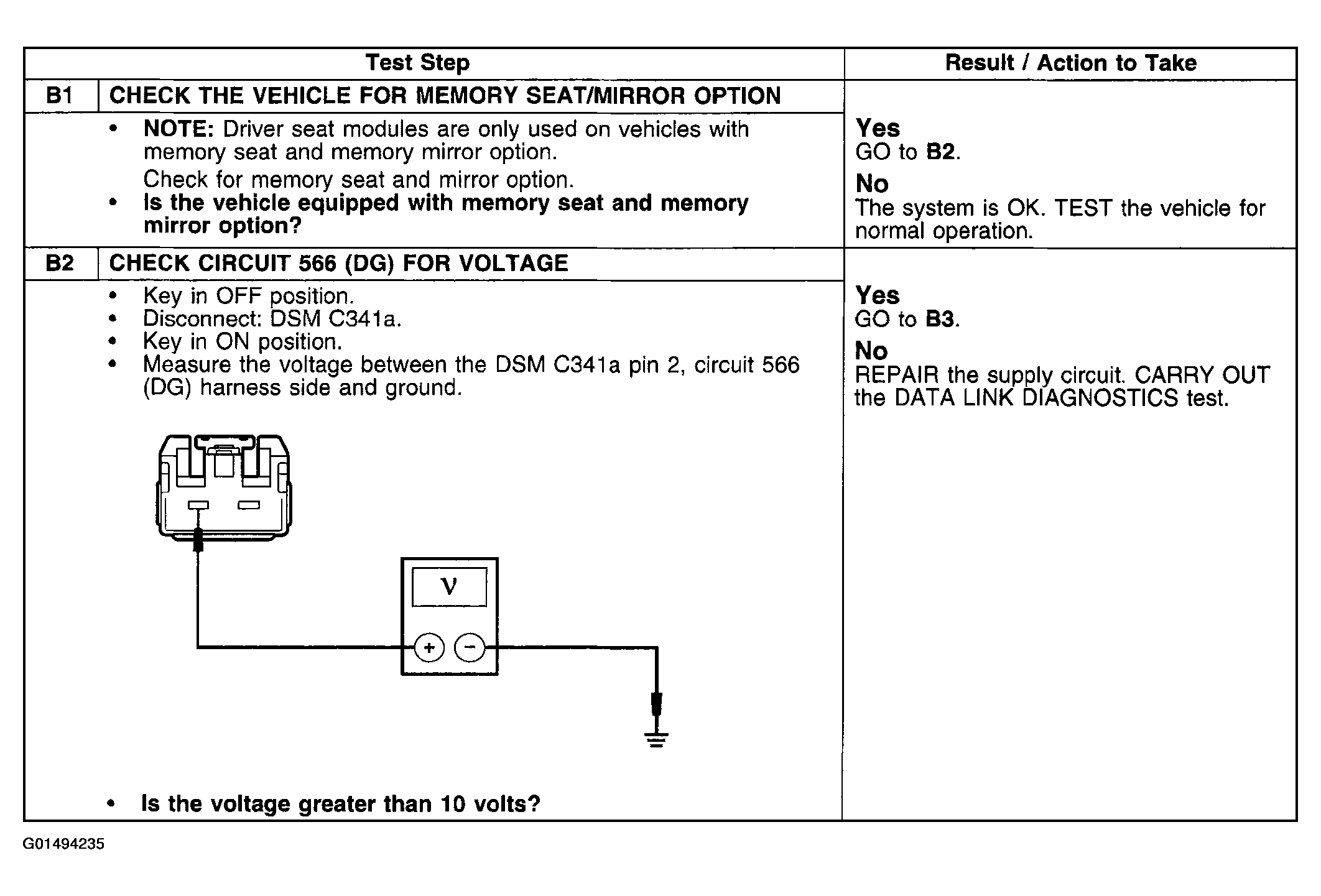

Fig 1: Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B1-B2)
G01494235Courtesy of FORD MOTOR CO.

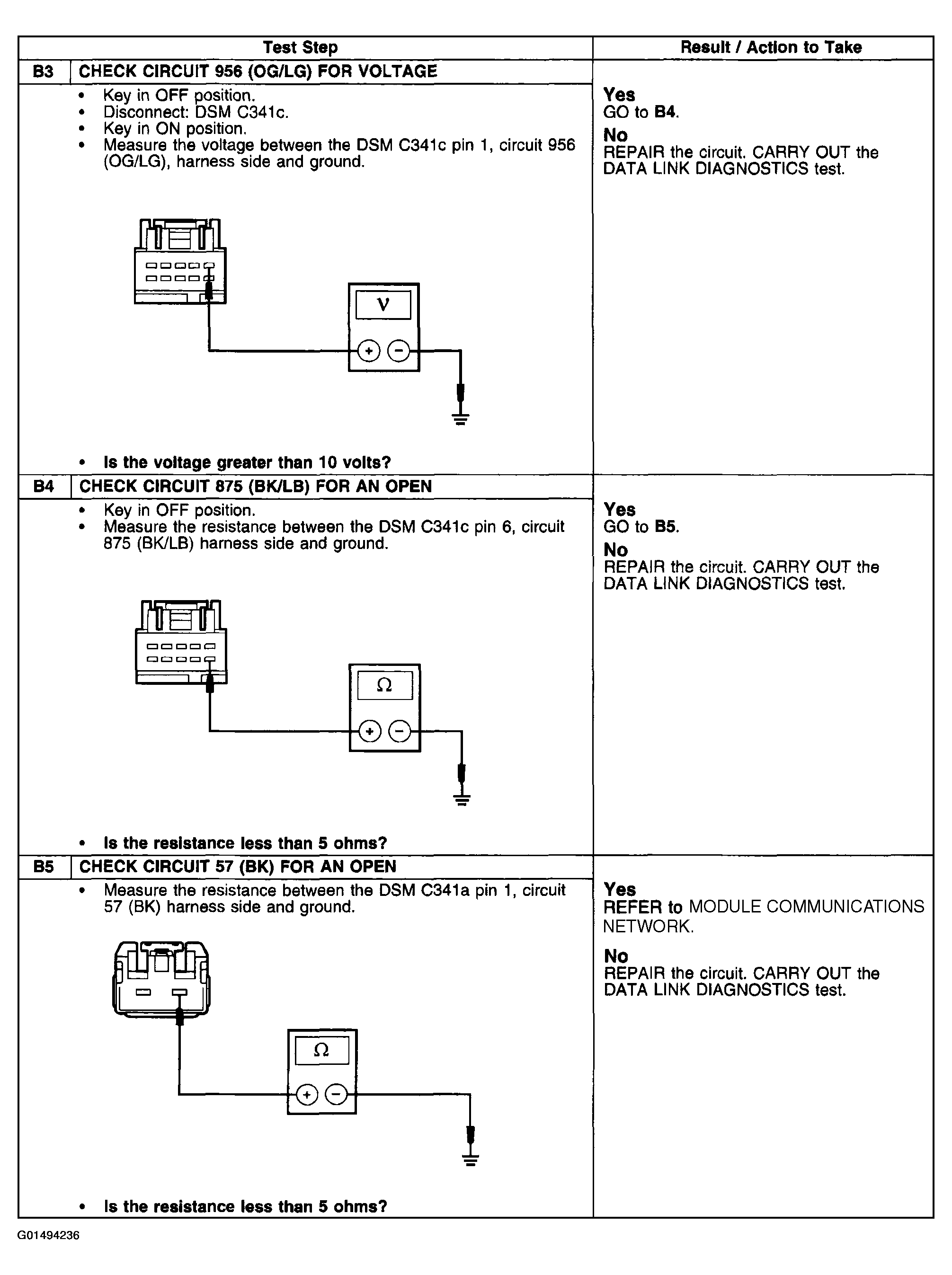

Fig 2: Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B3-B5)
G01494236Courtesy of FORD MOTOR CO.
