Automatic Transmission - LS
>>
Specifications
>>
Selective Snap Rings
Selective Snap Rings

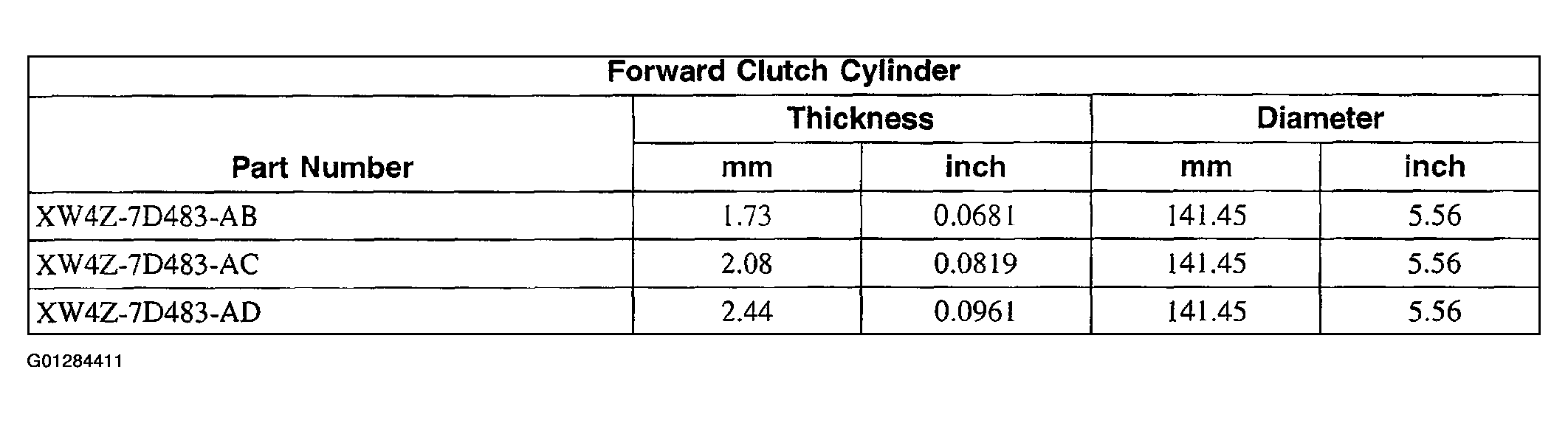

Fig 1: Snap Rings Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

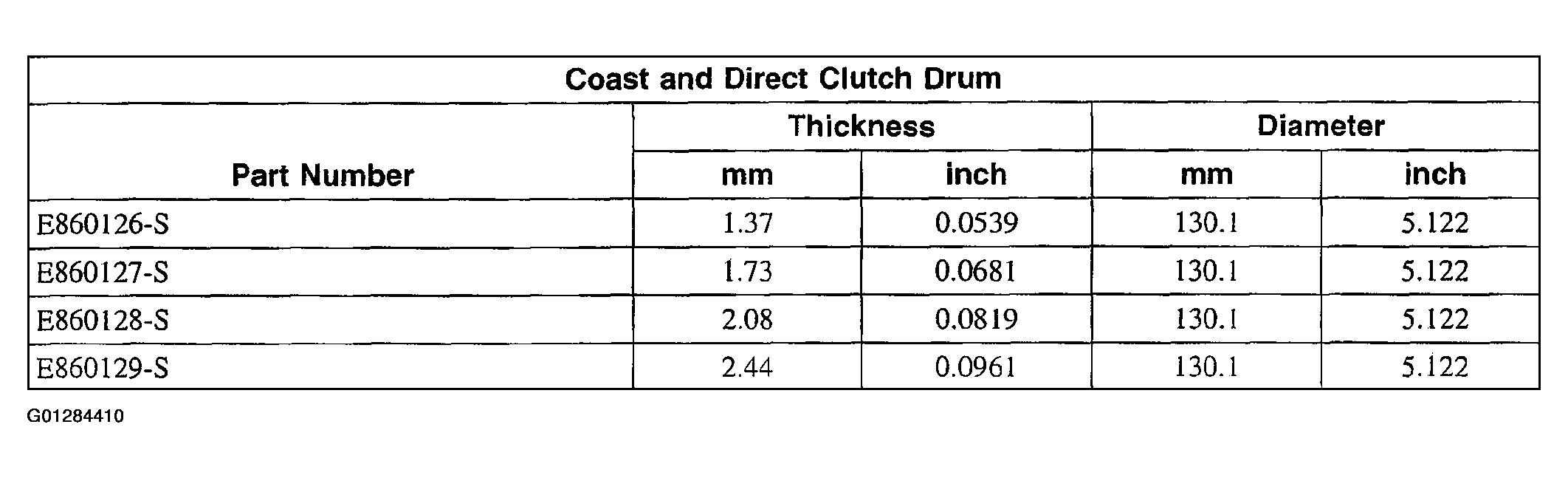

Fig 1: Snap Rings Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
