Automatic Transmission - LS
>>
Specifications
>>
Band/Clutch Application Chart B
Band/Clutch Application Chart B

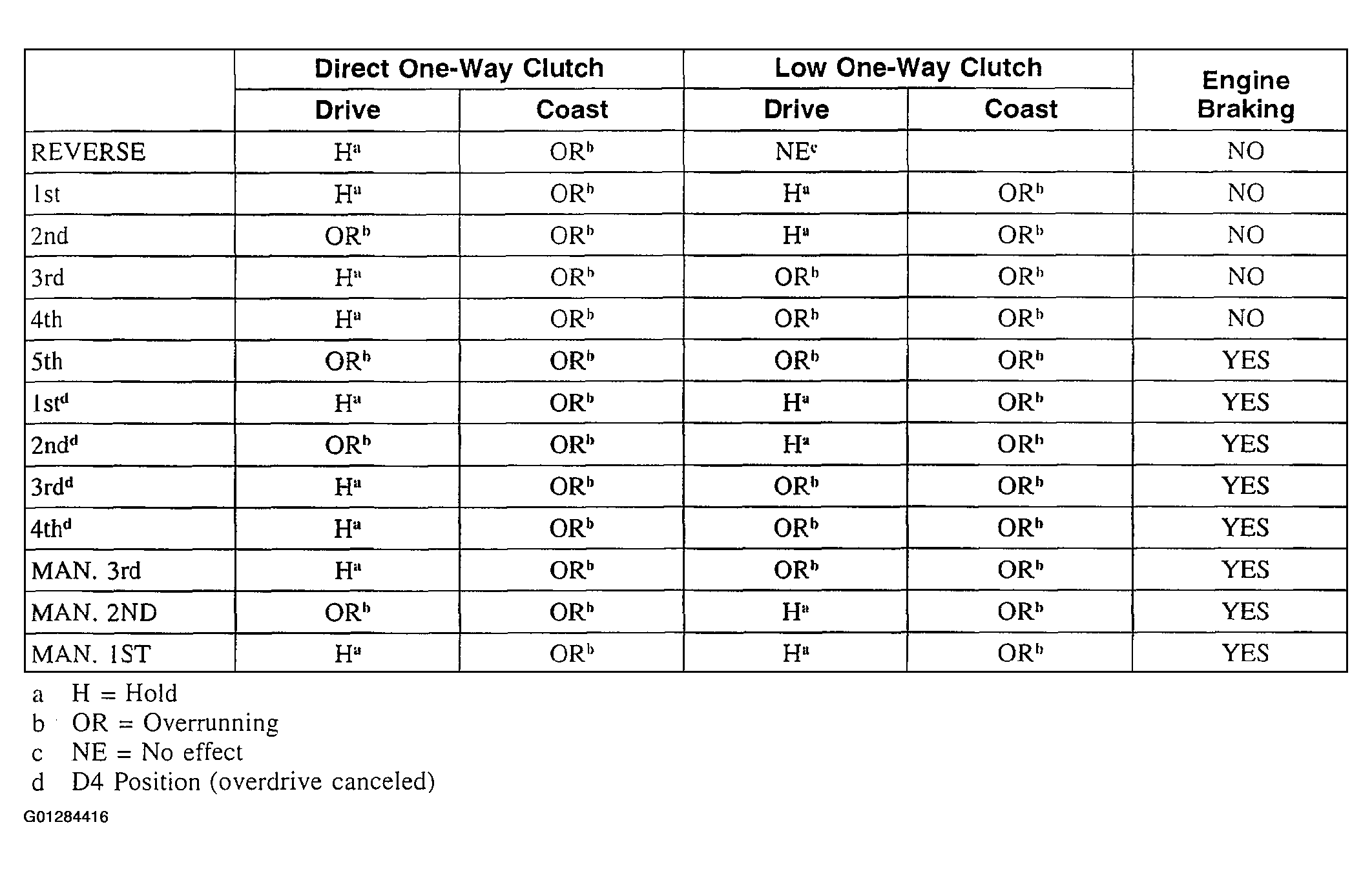

Fig 1: Band/Clutch Application Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
