Park System: Removal

NOTE: If damage to the park gear is found, the transmission must be removed and disassembled to install a new park gear.
NOTE: The park pawl, park pawl return spring and the park pawl shaft may fall out when removing the extension housing.
NOTE: The transmission fluid pan gasket is reusable. Clean and inspect. If damage to the gasket is found, a new gasket must be installed.
  1. With the vehicle in NEUTRAL, position it on a hoist.
  2. Illustration 1 of 2. Remove the components in the order indicated in the following 3 illustration and table.

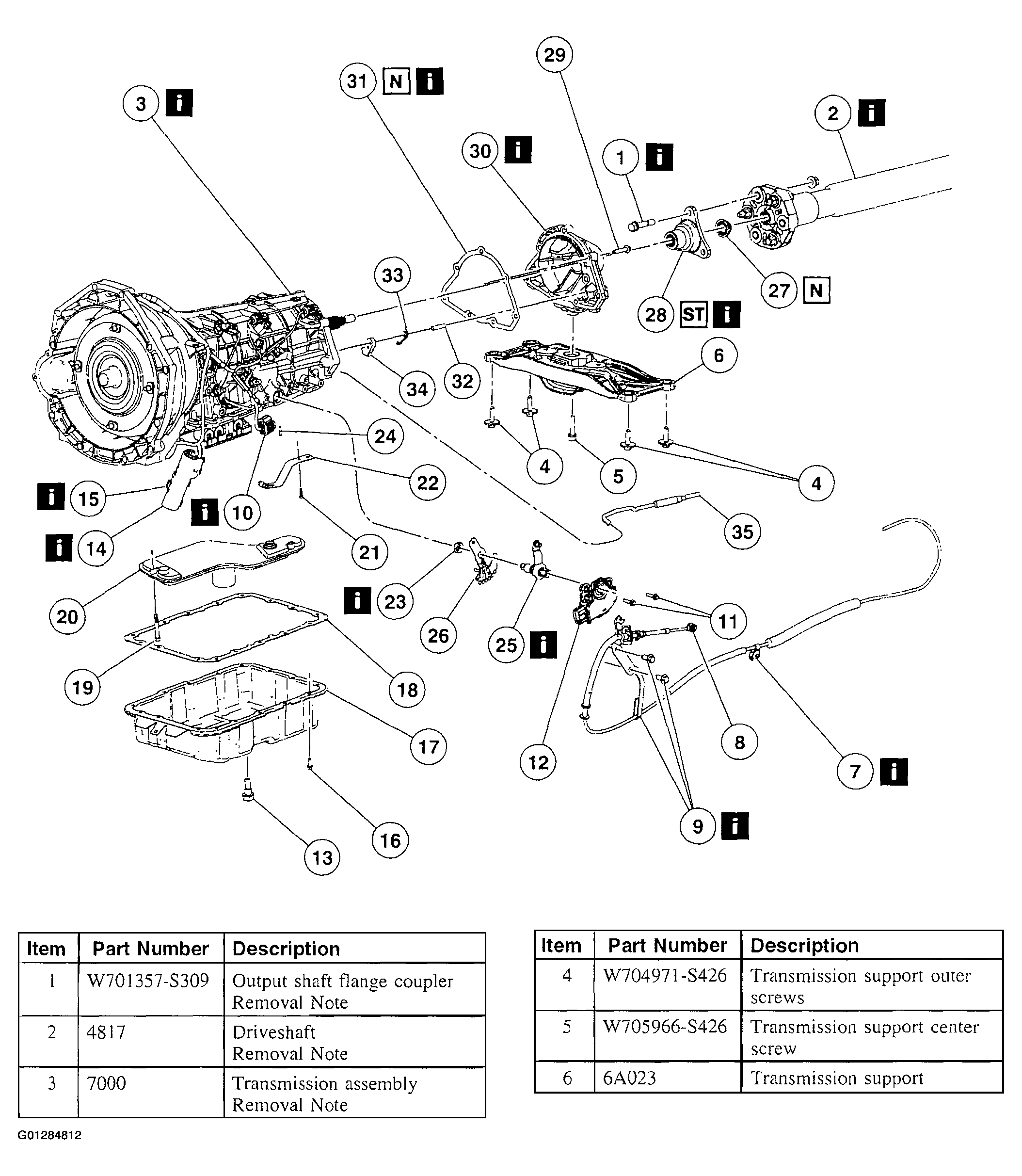

    Fig 1: Identifying Transmission Support Component
    G01284812Courtesy of FORD MOTOR CO.
    Fig 2: Parts Description Chart (1 Of 2)
    G01284813Courtesy of FORD MOTOR CO.

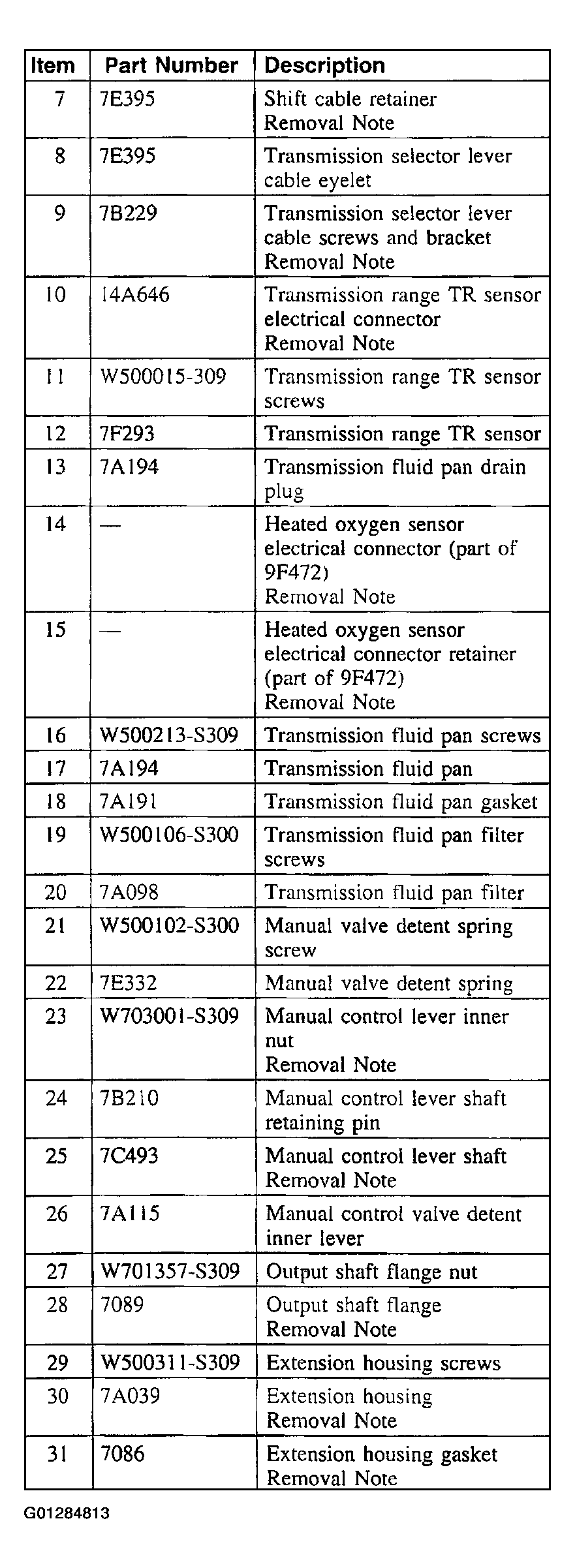

    Fig 3: Parts Description Chart (2 Of 2)
    G01284814Courtesy of FORD MOTOR CO.
