Automatic Transmission - LS
>>
Description And Operation
>>
Disassembled Views
Disassembled Views

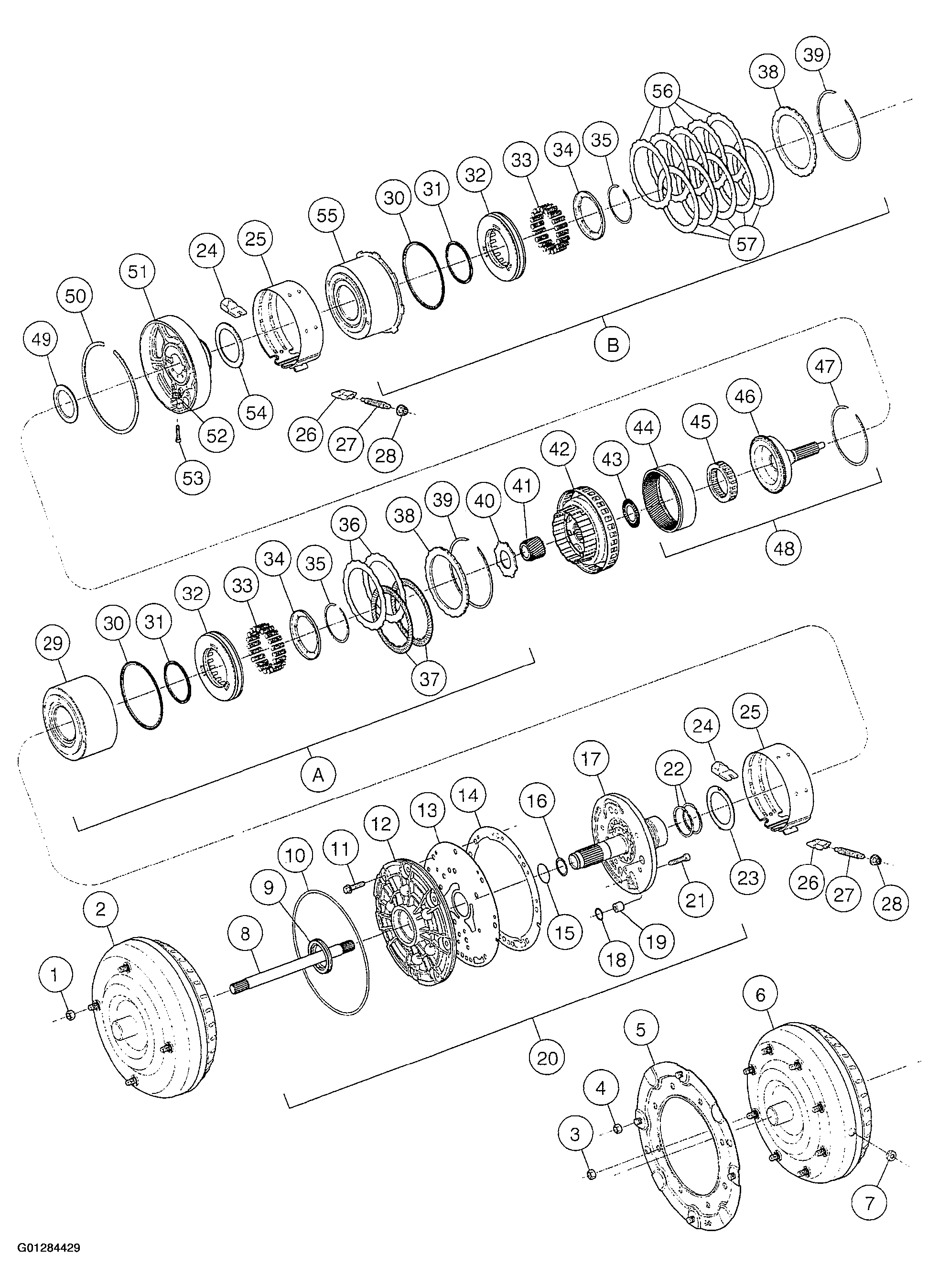

Fig 1: Exploded View Of Automatic Transmission Components (1 Of 3)
Courtesy of FORD MOTOR CO.

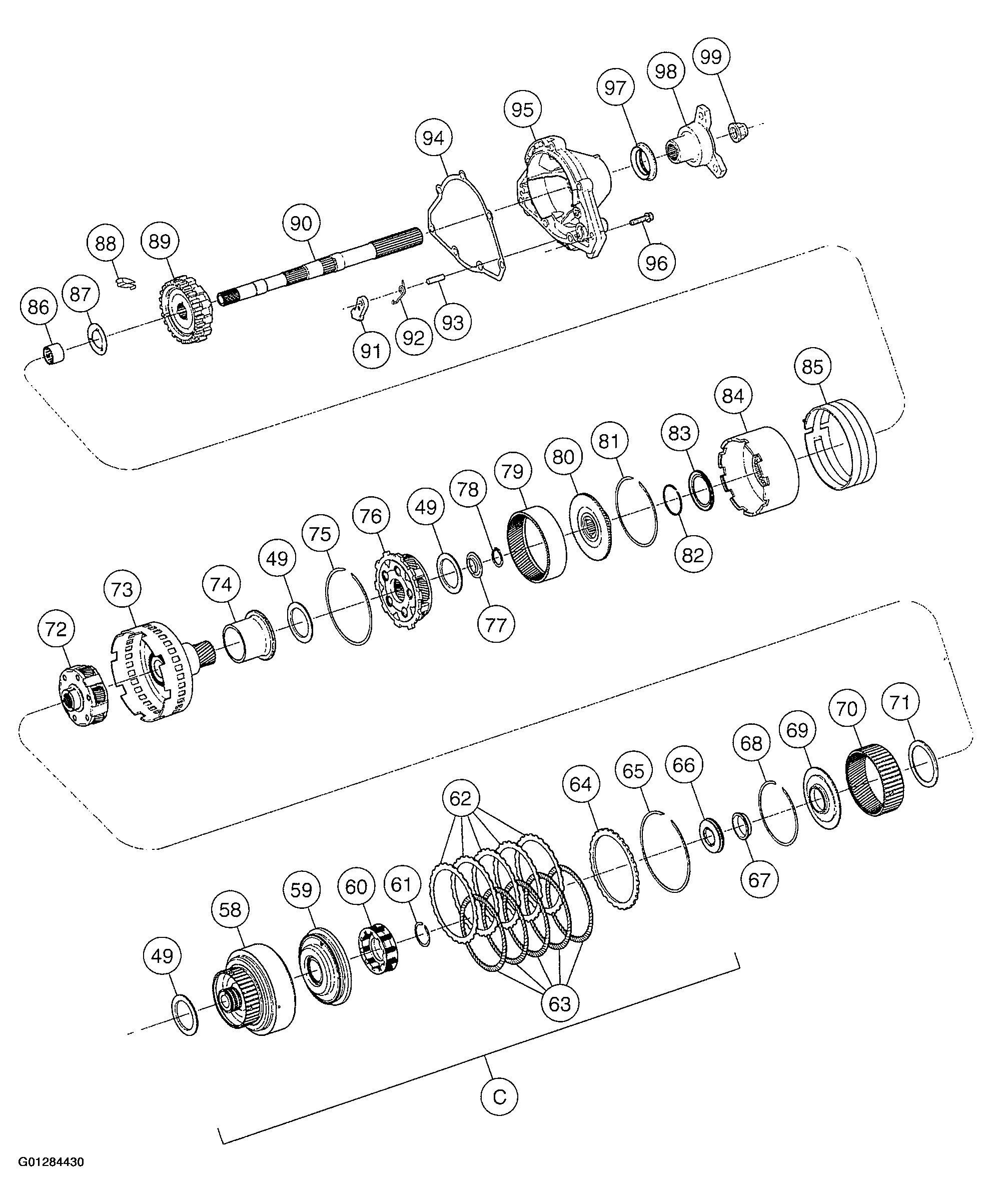

Fig 2: Exploded View Of Automatic Transmission Components (2 Of 3)
Courtesy of FORD MOTOR CO.

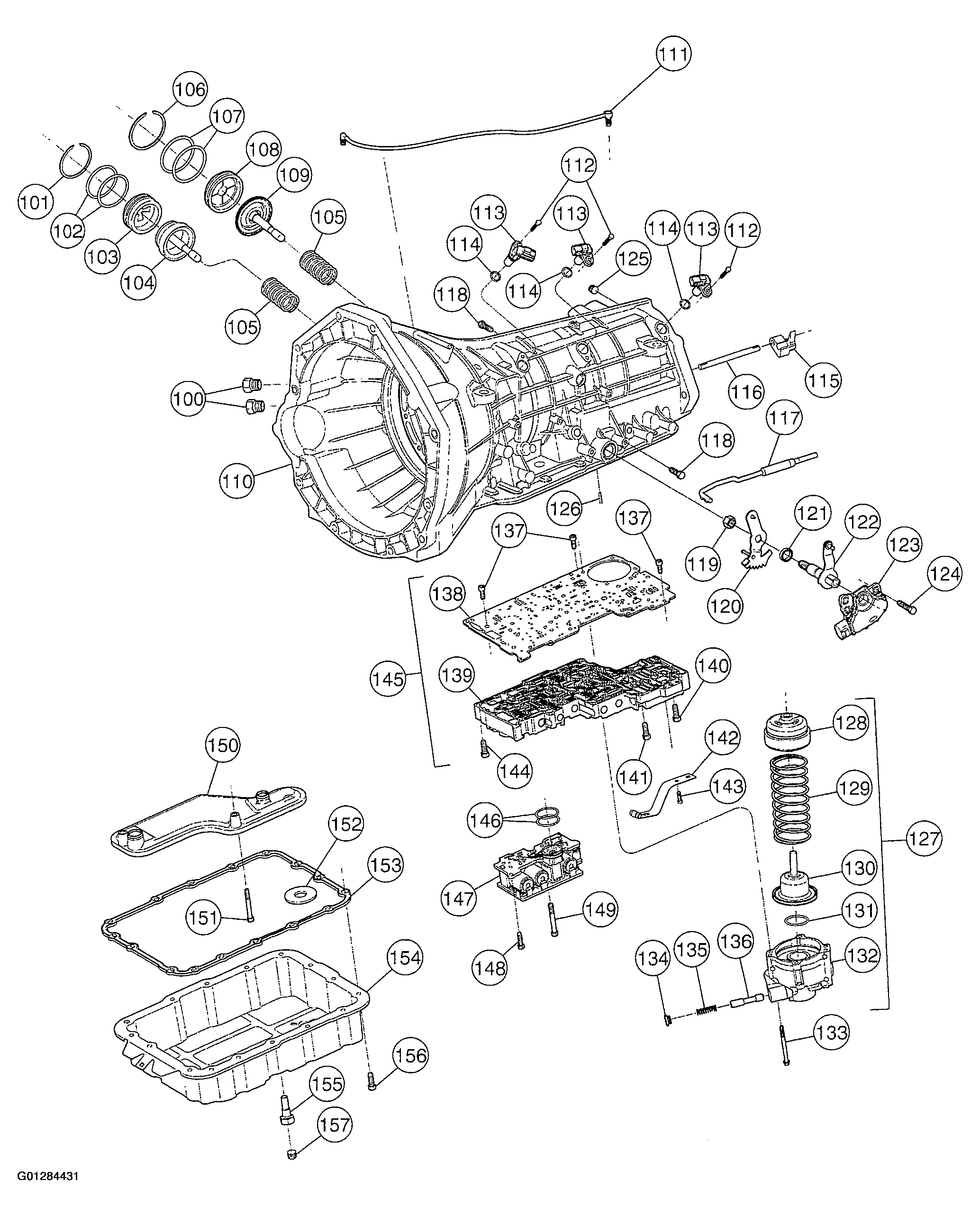

Fig 3: Exploded View Of Automatic Transmission Components (3 Of 3)
Courtesy of FORD MOTOR CO.

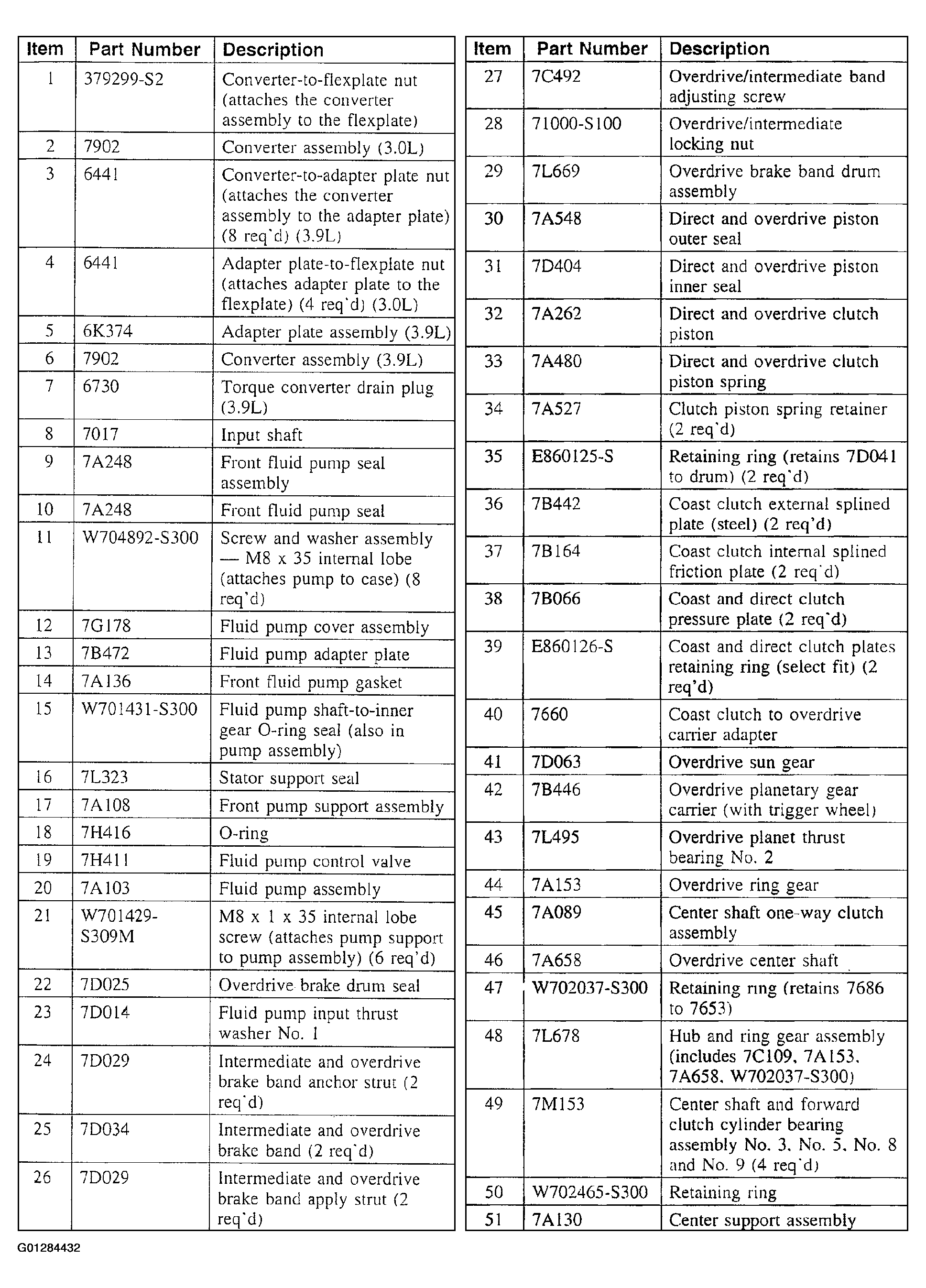

Fig 4: Automatic Transmission Components Description Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

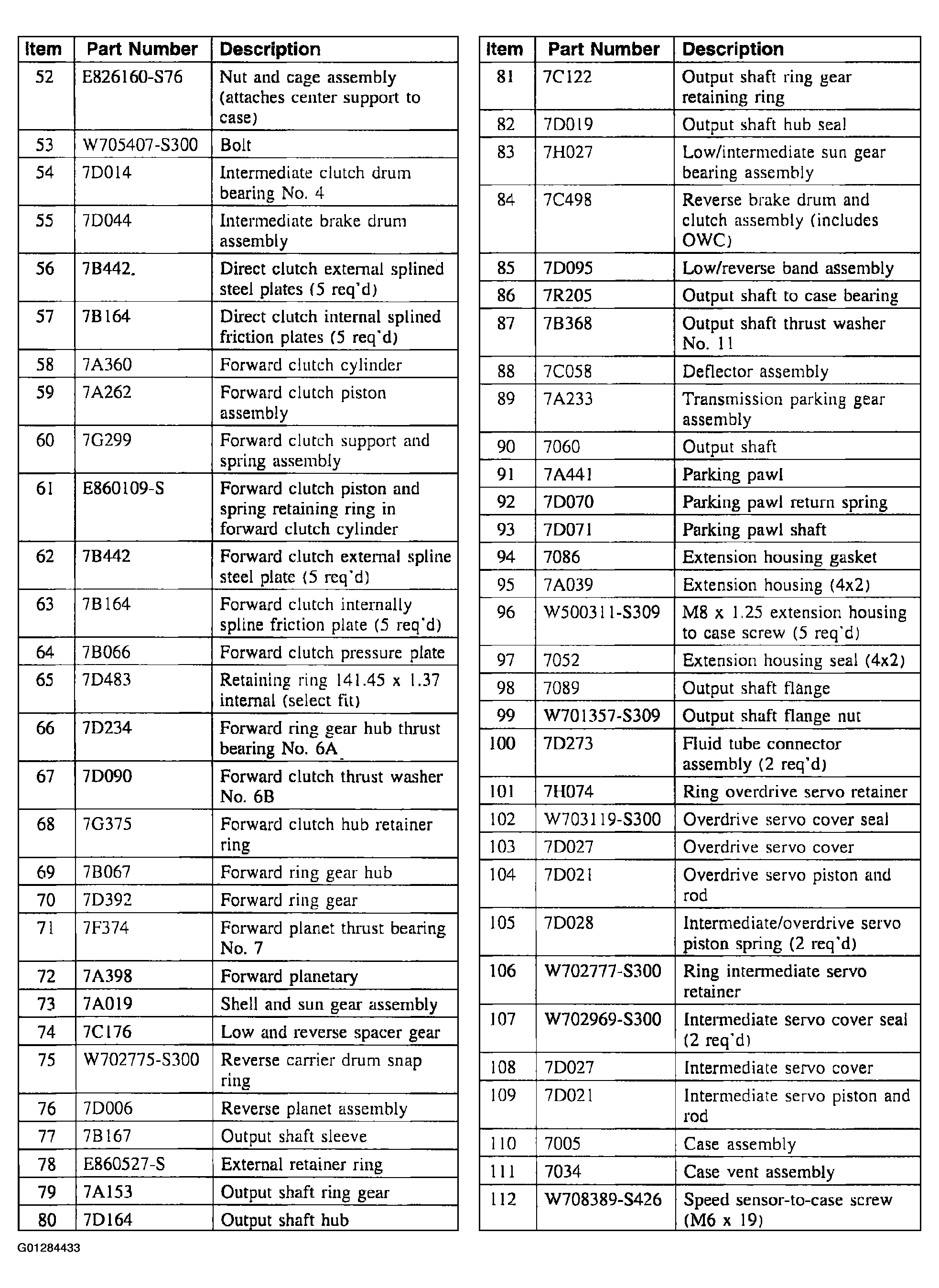

Fig 5: Automatic Transmission Components Description Chart (2 Of 3)
Courtesy of FORD MOTOR CO.

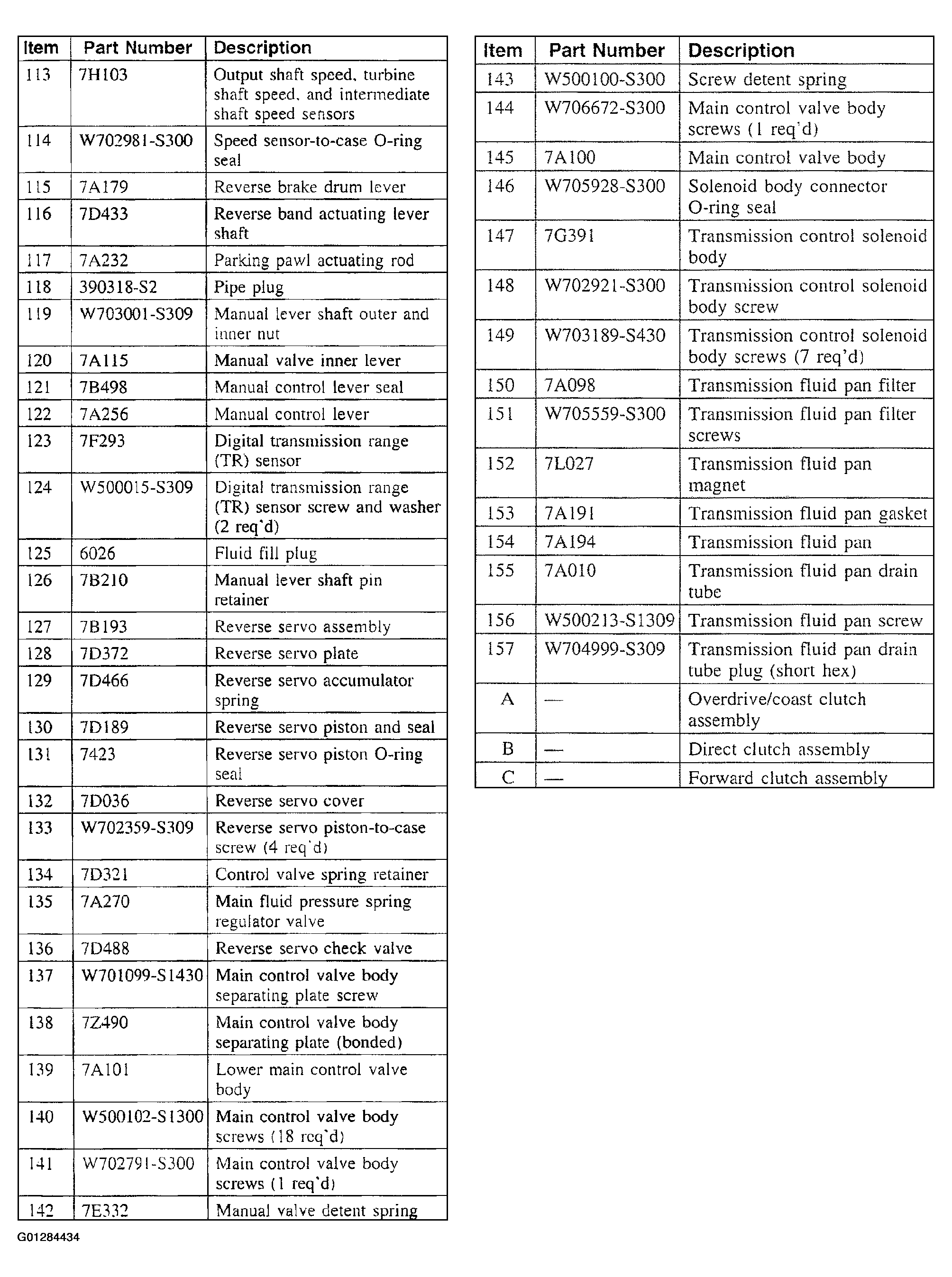

Fig 6: Automatic Transmission Components Description Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
