Transmission Component Index

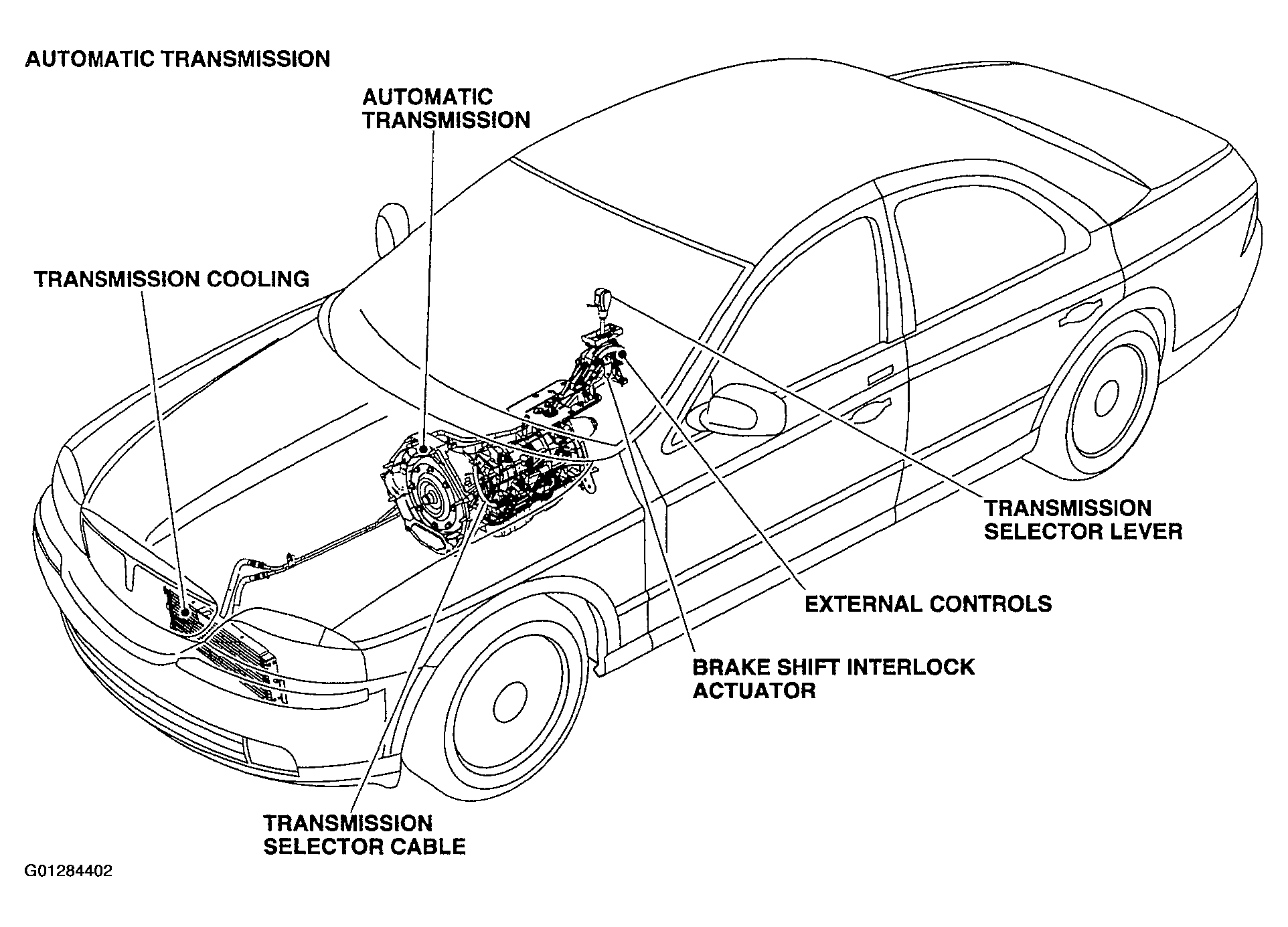

Fig 1: Locating Transmission Component (1 Of 2)

G01284402

Courtesy of FORD MOTOR CO.

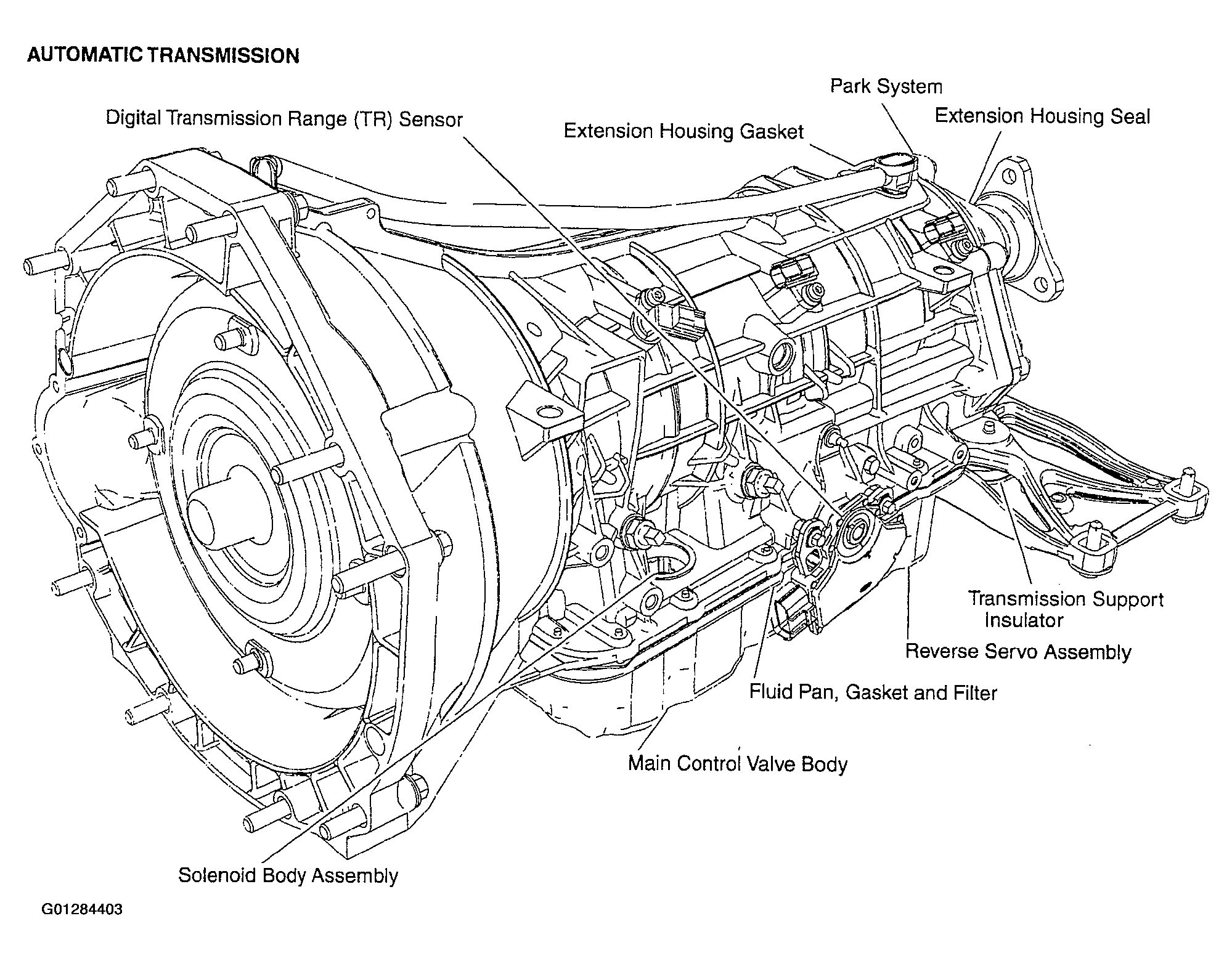

Fig 2: Locating Transmission Component (2 Of 2)

G01284403

Courtesy of FORD MOTOR CO.
