Power Steering Reservoir: Notes

  1. Remove the components in the order indicated in Fig 1.
  2. To install, reverse the removal procedure.

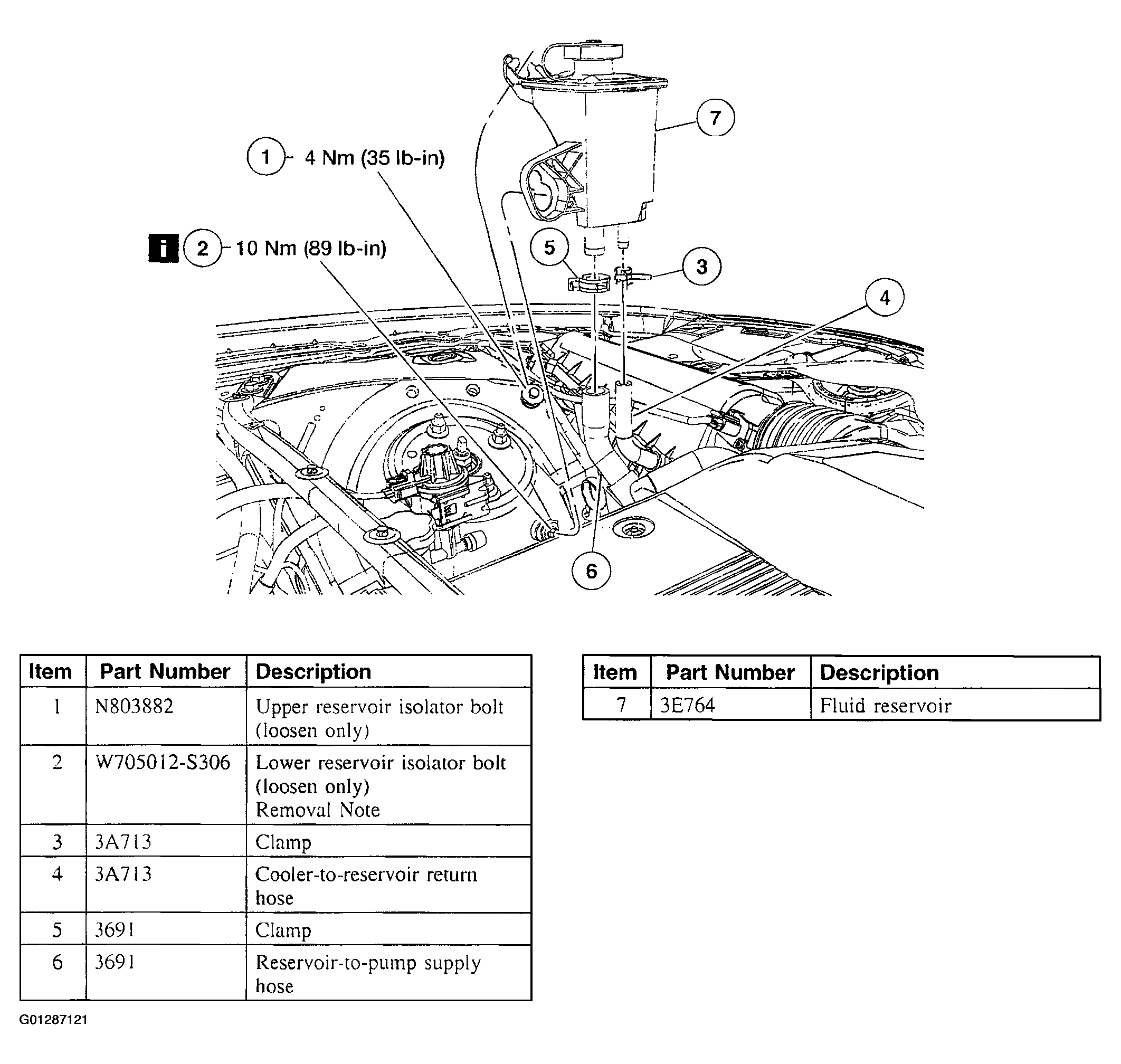

    Fig 1: Removing Power Steering Reservoir And Parts Description Chart
    G01287121Courtesy of FORD MOTOR CO.
  3. Fill, purge and leak test the system. For additional information, Refer to POWER STEERING SYSTEM PURGING  and POWER STEERING SYSTEM FILLING .
