Power Steering Fluid Cooler: Notes

Special Tool(s)

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the air conditioning condenser. For additional information, Refer to CLIMATE CONTROL SYSTEM .
2. Remove the components in the order indicated in the following 2 figures.
3. To install, reverse the removal procedure.

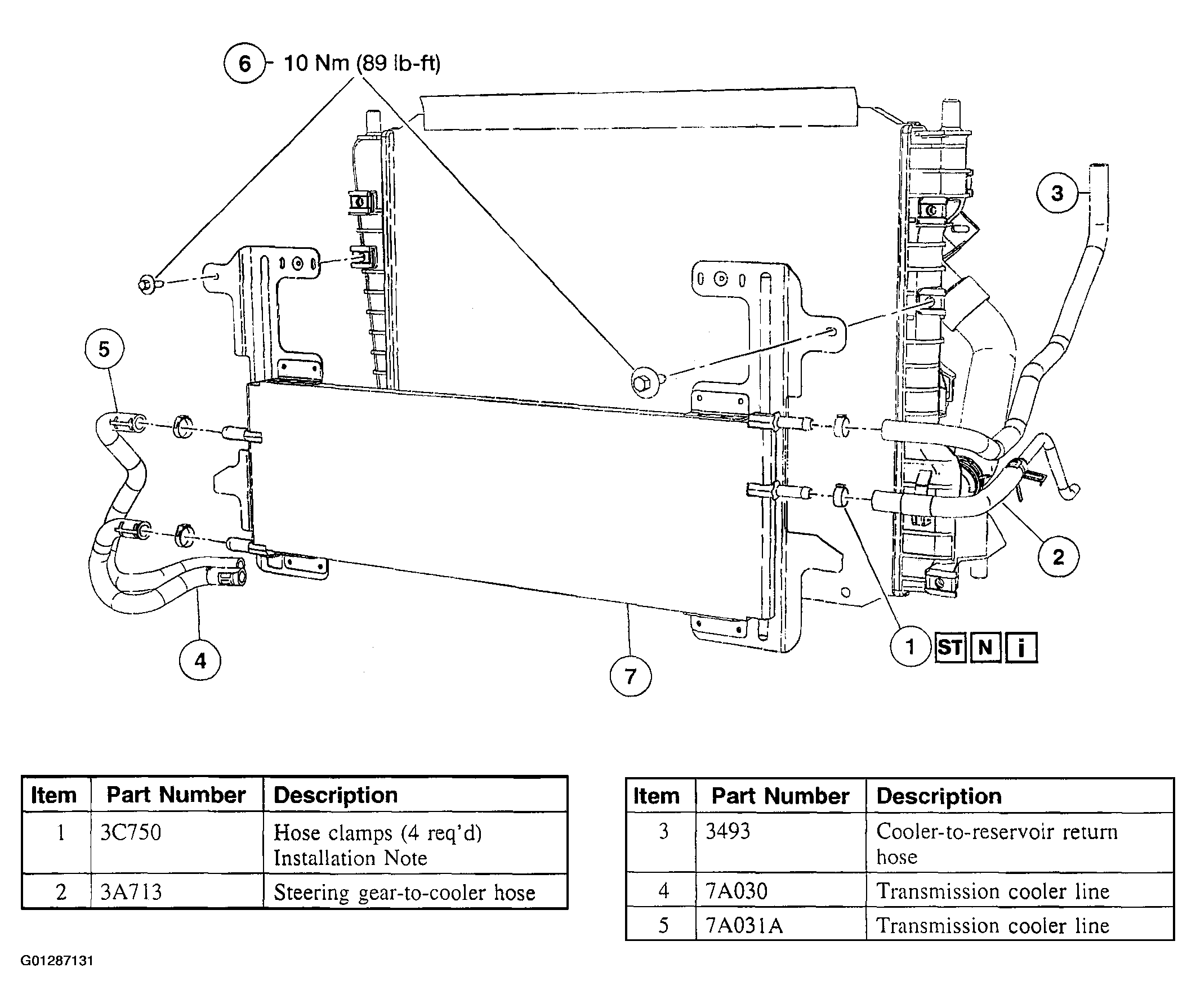

   Fig 2: Removing Air Conditioning Condenser And Parts Description Chart

   Courtesy of FORD MOTOR CO.
   Fig 3: Air Conditioning Condenser And Parts Description Chart

   Courtesy of FORD MOTOR CO.
4. Fill, purge and leak test the system. For additional information, Refer to POWER STEERING SYSTEM PURGING  and POWER STEERING SYSTEM FILLING .
