Home >> Lincoln >> 2003 >> LS 3.0 S >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control - LS >> Removal And Installation >> Yaw Rate Sensor

Yaw Rate Sensor

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the front floor console cup holder. For additional information, refer to BODY SYSTEM - INTERIOR .
  3. Remove the components in the order indicated in Fig 1.

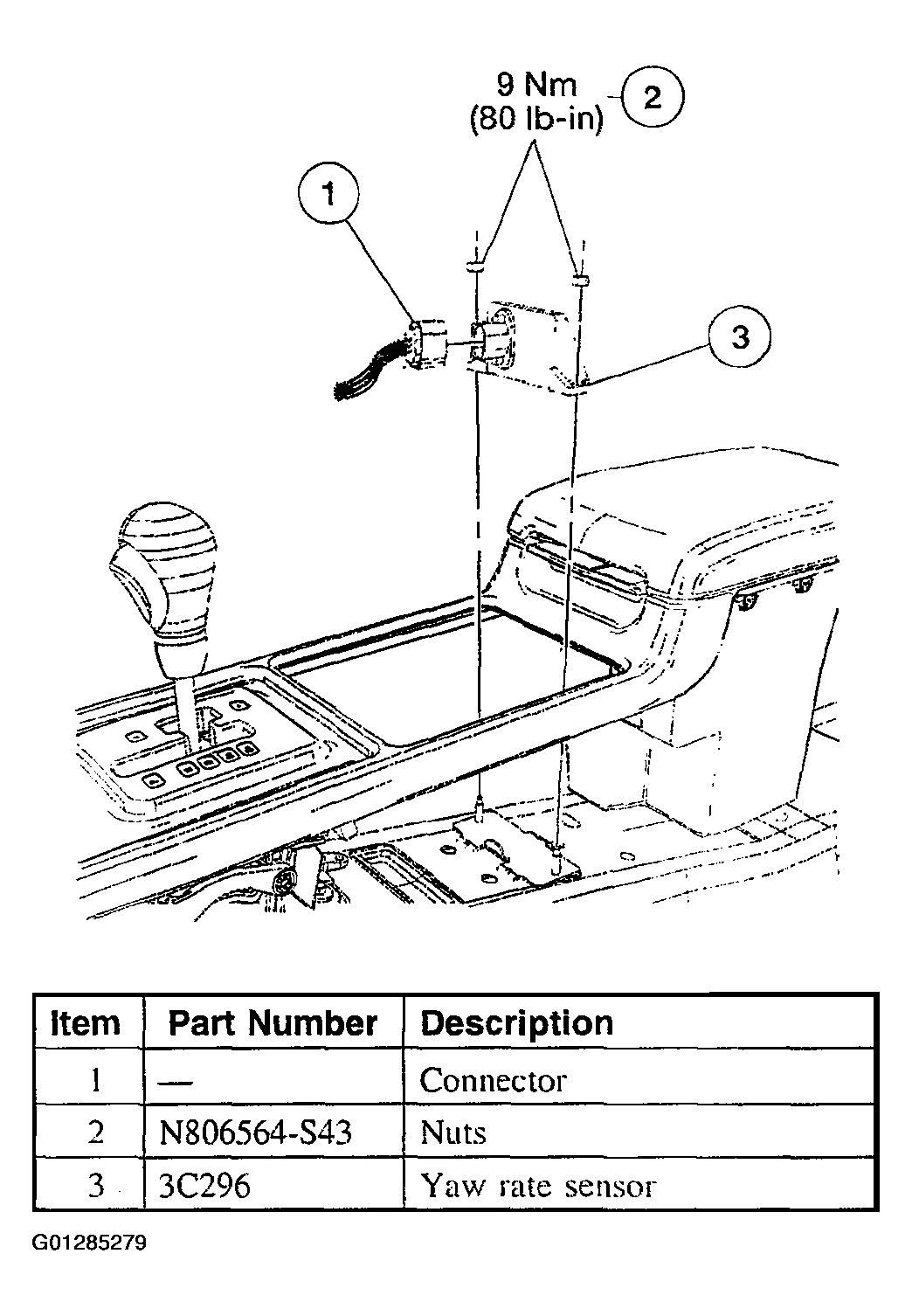

    Fig 1: Identifying Removing Sequence Of Yaw Rate Sensor
    G01285279Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
