Traction Control Actuator

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
  2. Remove the components in the order indicated in Fig 1.

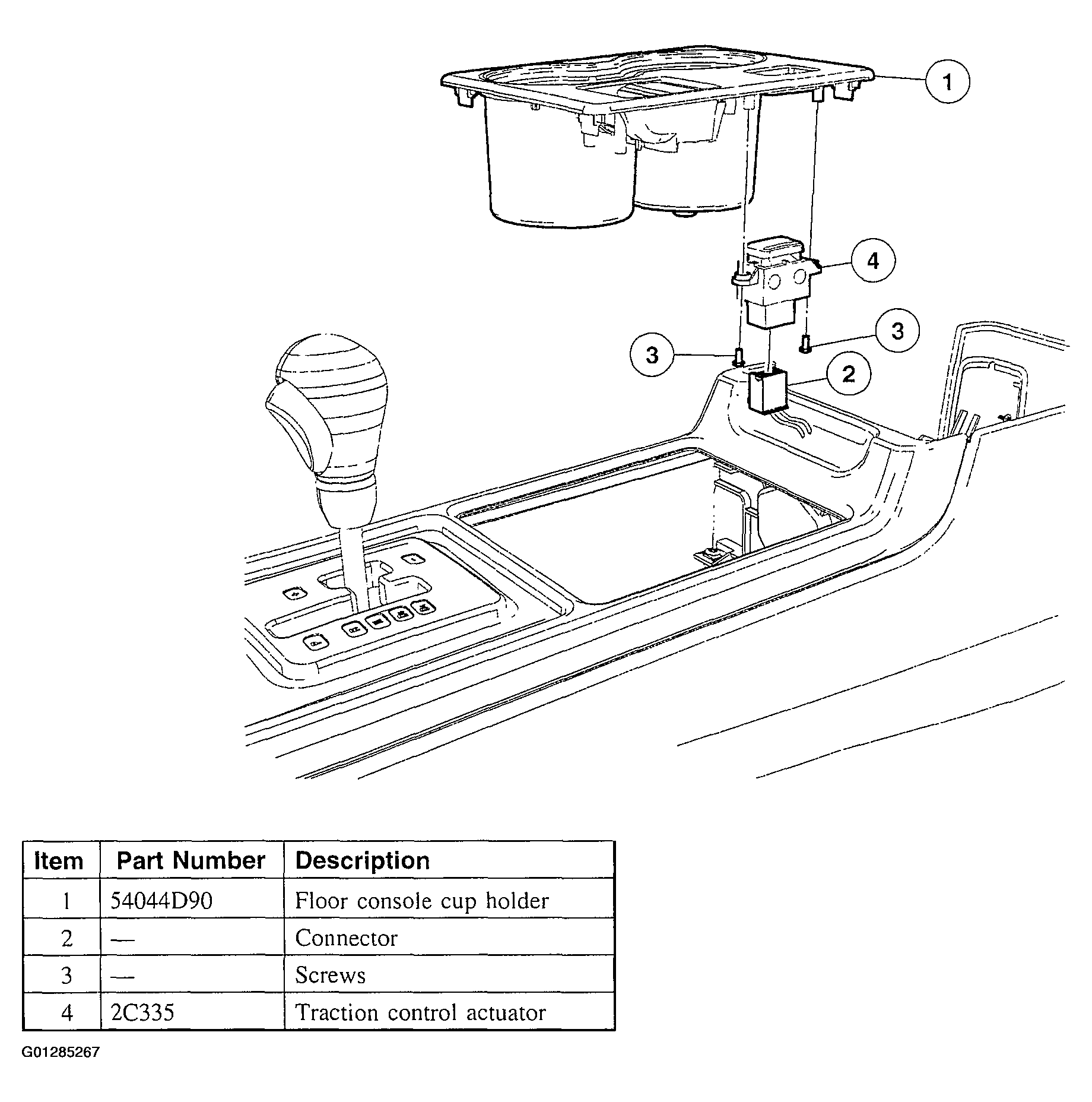

    Fig 1: Identifying Removing Sequence Of Components Of Traction Control Actuator
    G01285267Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
