Steering Wheel Rotation Sensor
Steering Wheel Rotation Sensor
Remove the components in the order indicated in
Fig 1
.

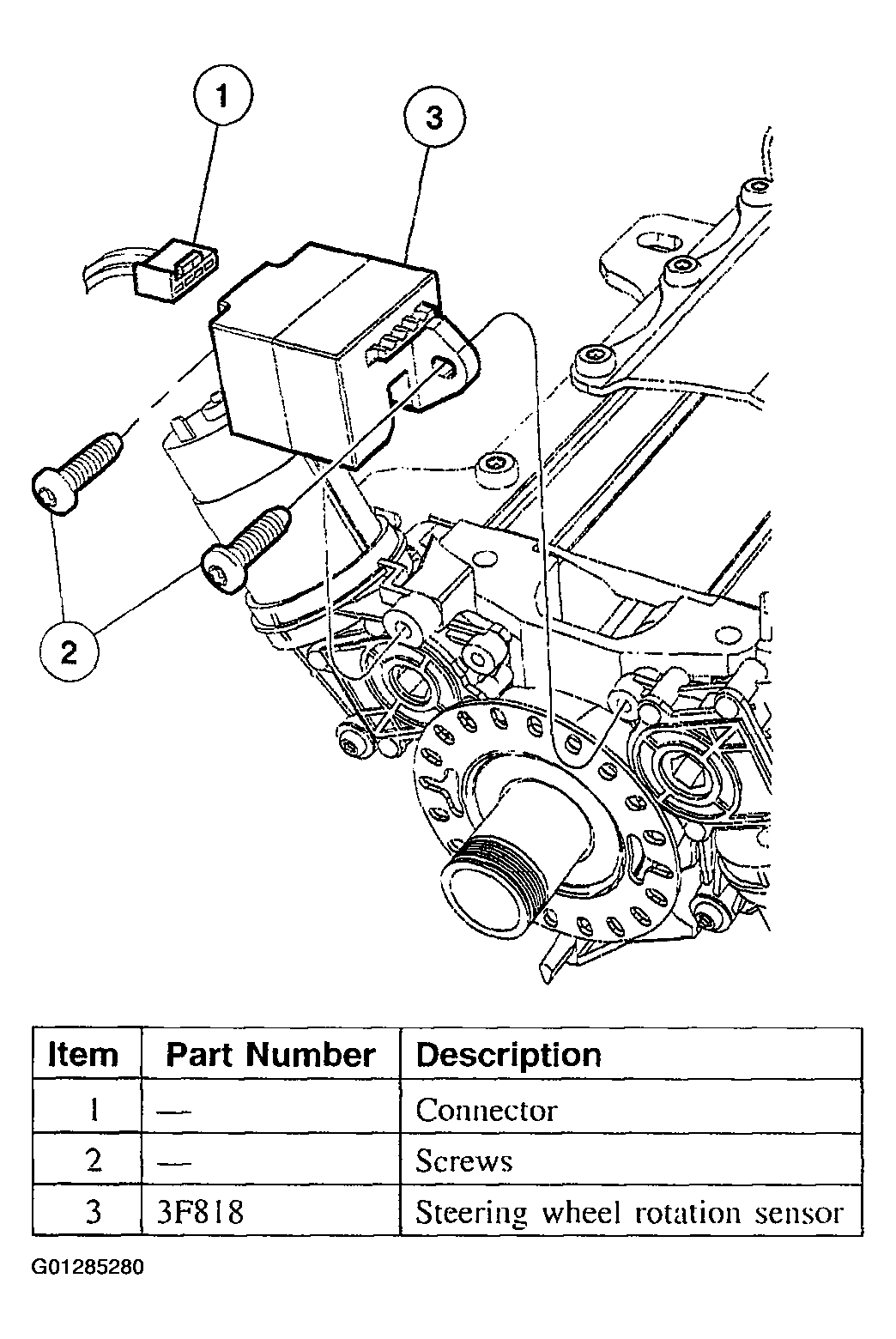

Fig 1: Identifying Removing Sequence Of Steering Wheel Rotation Sensor
Courtesy of FORD MOTOR CO.
