Rear Wheel Speed Sensor and Sensor Ring: Notes

NOTE: Clean off all dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.
  1. With the vehicle in NEUTRAL, position on a hoist.
  2. Remove the components in the order indicated in Fig 1.

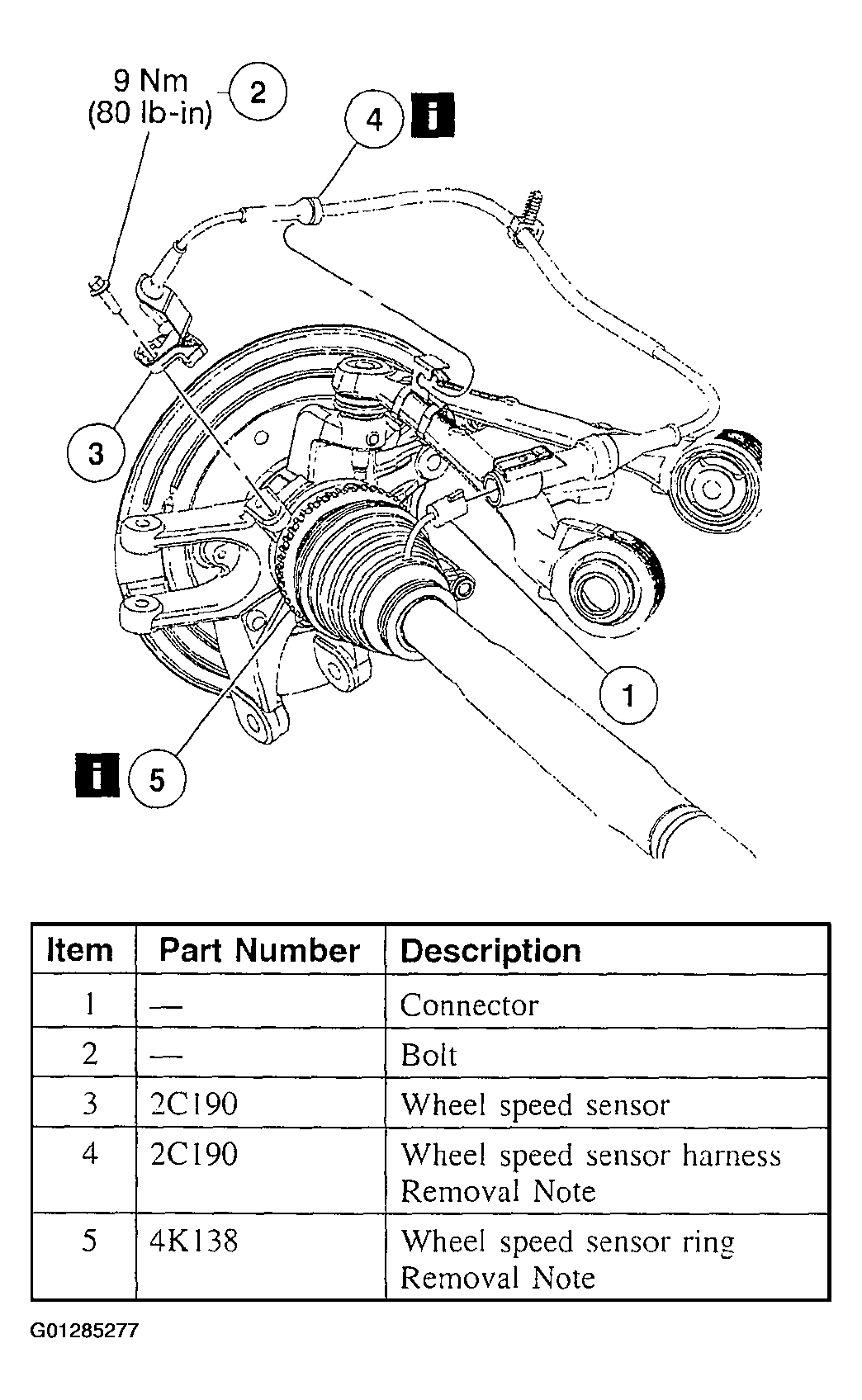

    Fig 1: Identifying Removing Sequence Of Rear Wheel Speed Sensor And Sensor Ring
    G01285277Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
