Front Wheel Speed Sensor and Sensor Ring: Material

Fig 1: Material Specification - Front Wheel Speed Sensor And Sensor Ring

Courtesy of FORD MOTOR CO.

1. With the vehicle in NEUTRAL, position on a hoist.
2. Remove the components in the order indicated in Fig 2.

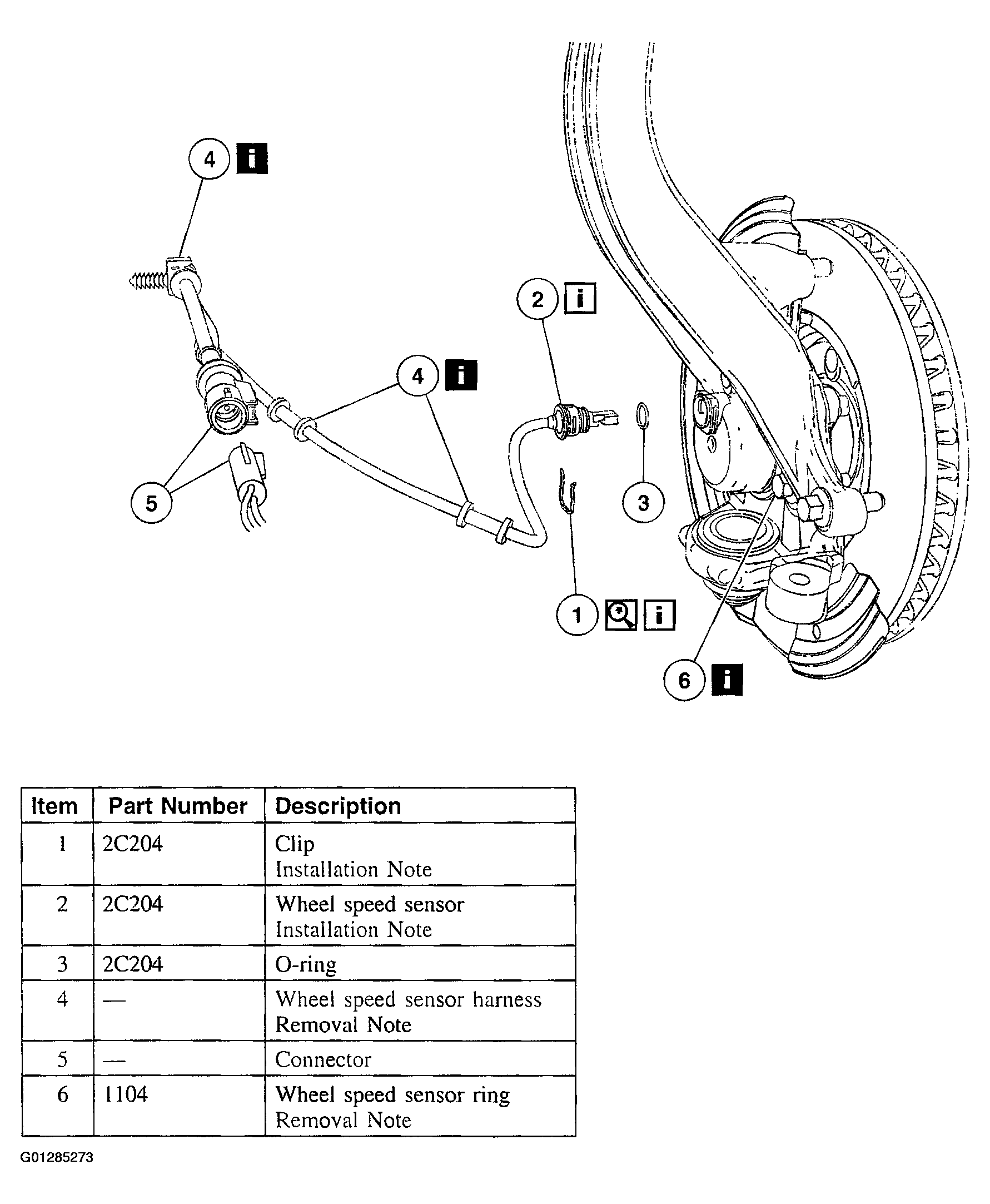

   Fig 2: Identifying Removing Sequence Of Components Of Front Wheel Speed Sensor And Sensor Ring

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
