Front Bumper: Notes

  1. Remove the headlamps. For additional information, Refer to EXTERIOR LIGHTING .
  2. To remove individual components, only carry out the listed steps.
    Fig 1: Components Stepping Chart
    G02239034Courtesy of FORD MOTOR CO.
  3. Remove the components in the order listed in Fig 2.

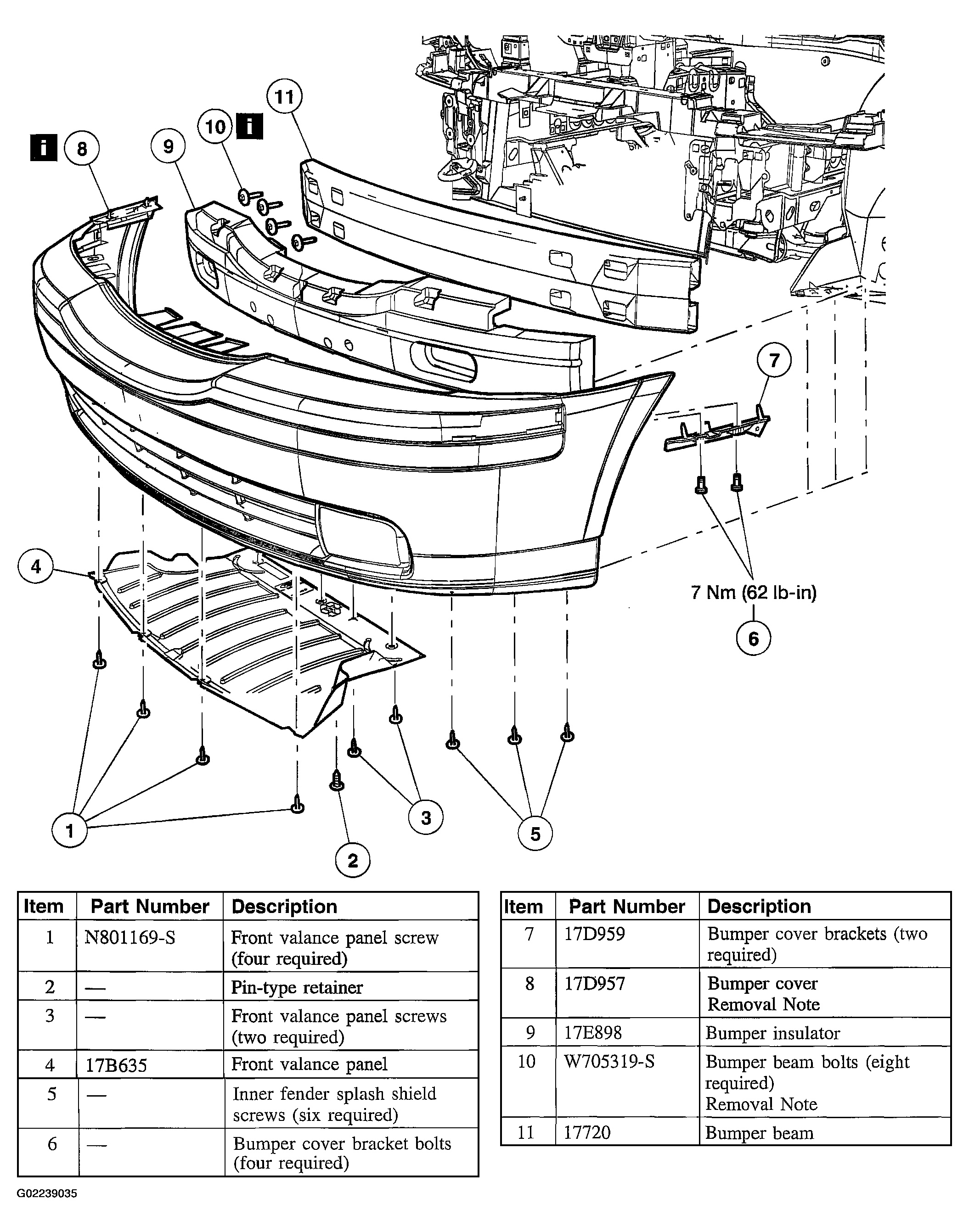

    Fig 2: Identifying Front Bumper Components And Specifications
    G02239035Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
