Engine Mechanical: Mechanical: Engine-3.0L: Installation: Engine: Material

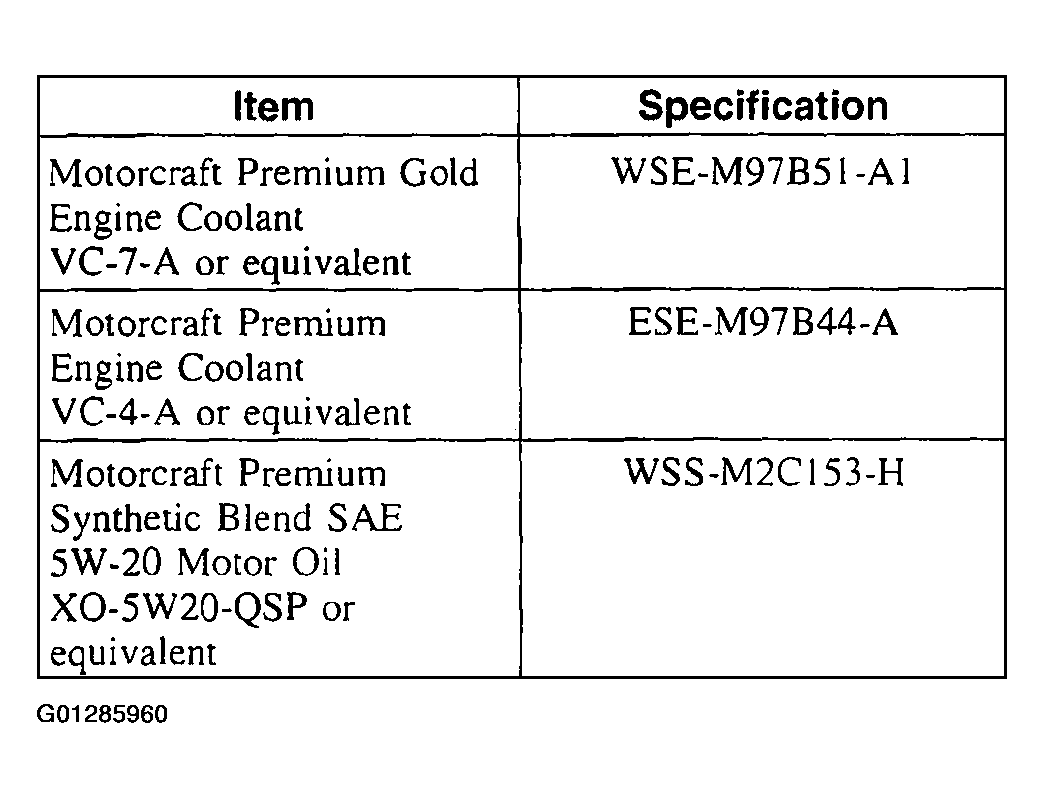

Fig 1: Specification Material

Courtesy of FORD MOTOR CO.

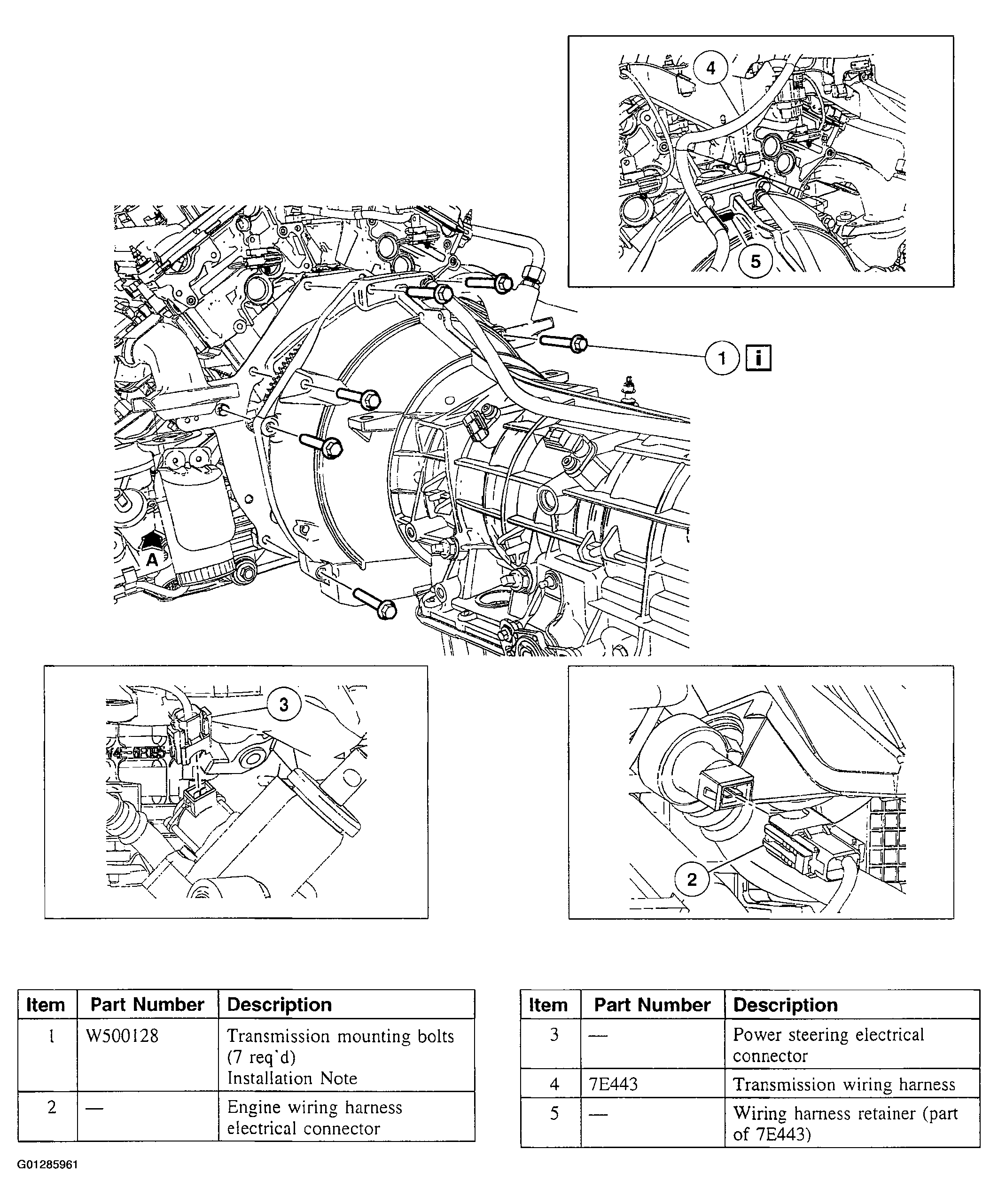

1. Illustration 1 of 17. Install the components in the order indicated in the following illustration and table.

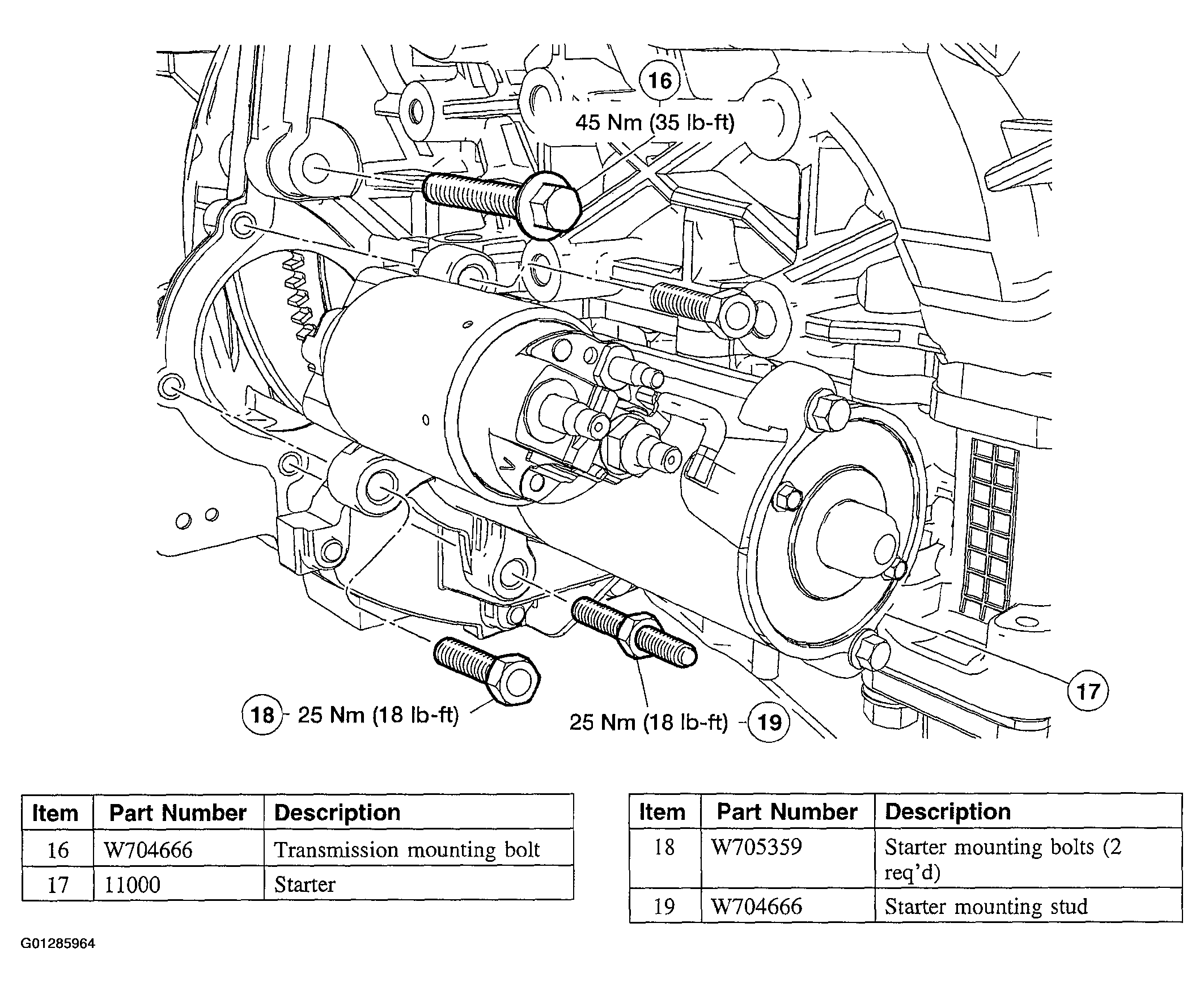

   Fig 2: Installing Transmission Bolts

   Courtesy of FORD MOTOR CO.
2. Illustration 2 of 17. Install the components in the order indicated in the following illustration and table.

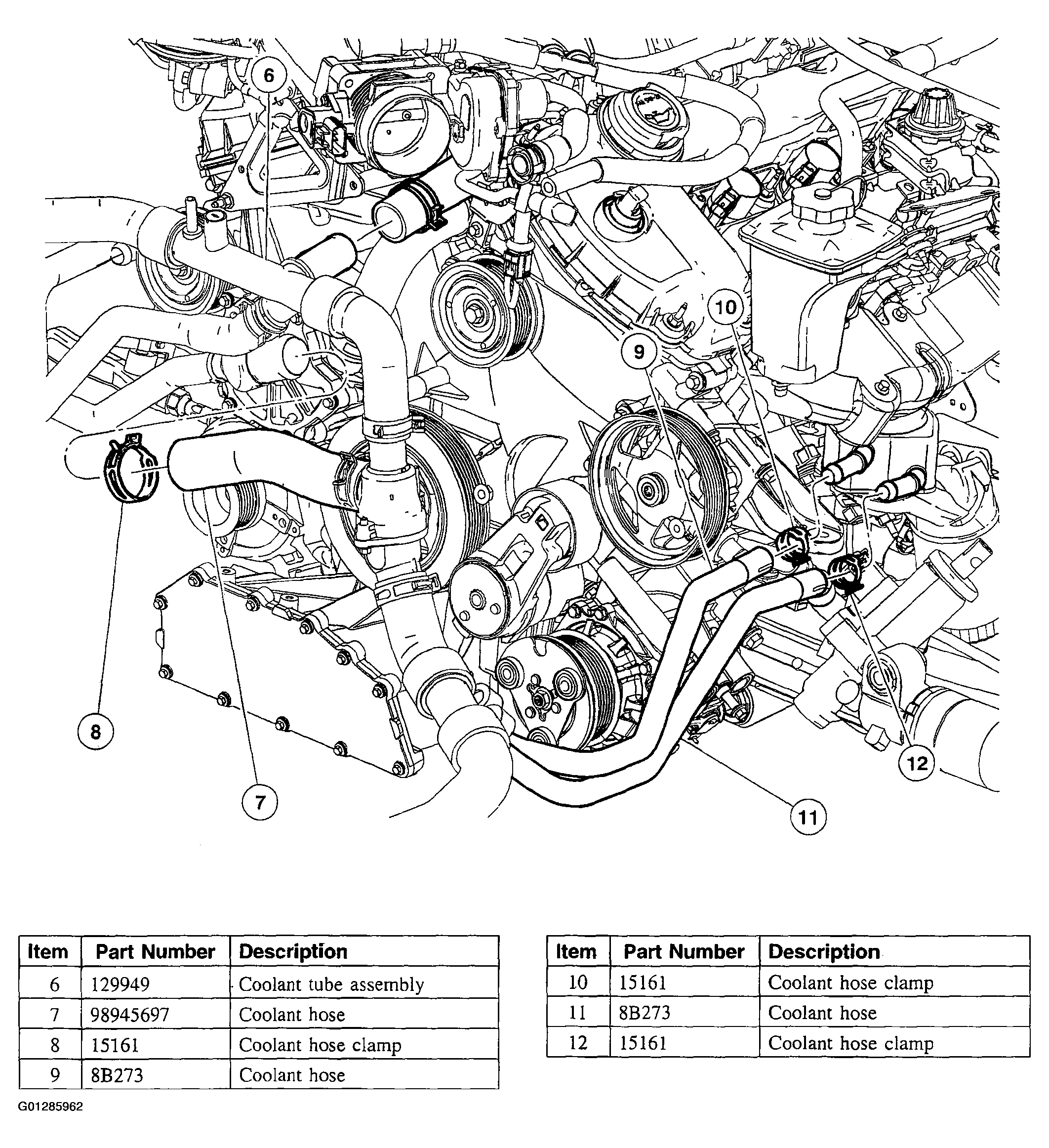

   Fig 3: Installing Coolant Tube Assembly

   Courtesy of FORD MOTOR CO.
3. Illustration 3 of 17. Install the components in the order indicated in the following illustration and table.

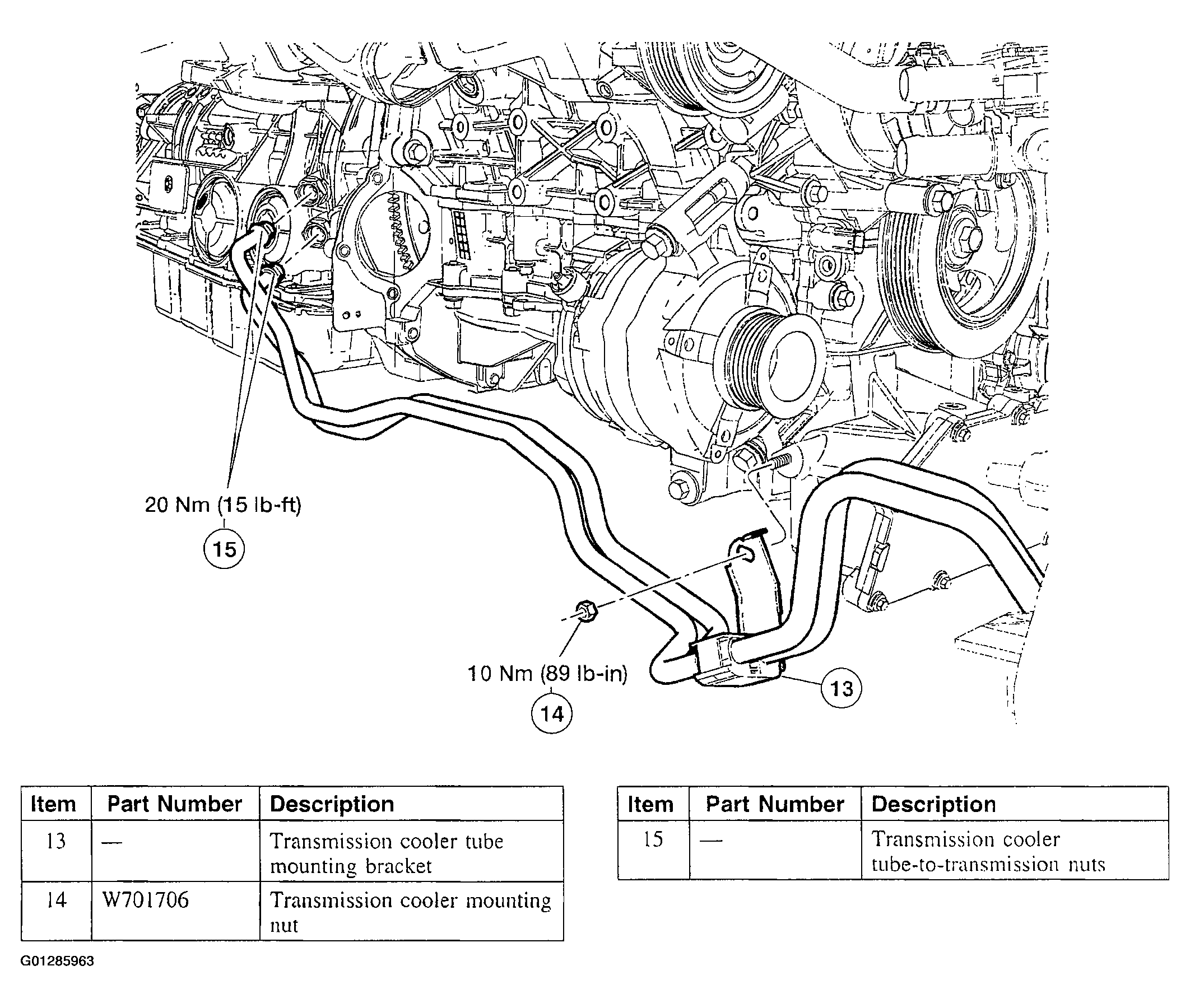

   Fig 4: Installing Transmission Cooler Tube Mounting Bracket

   Courtesy of FORD MOTOR CO.
4. Illustration 4 of 17. Install the components in the order indicated in the following illustration and table.
   Fig 5: Installing Transmission Mounting Bolt

   Courtesy of FORD MOTOR CO.
5. Illustration 5 of 17. Install the components in the order indicated in the following illustration and table.

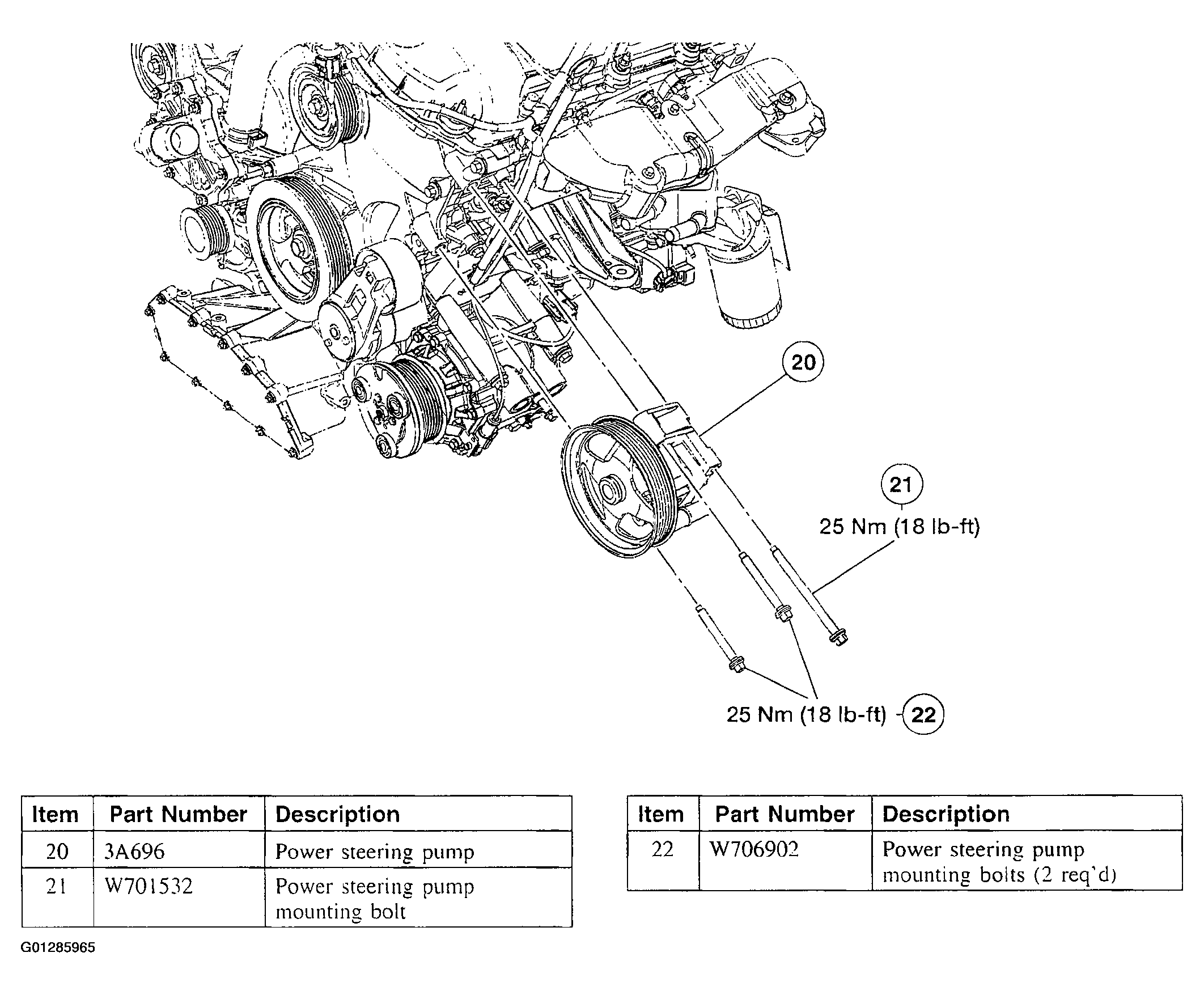

   Fig 6: Installing Power Steering Pump

   Courtesy of FORD MOTOR CO.
6. Illustration 6 of 17. Install the components in the order indicated in the following illustration and table.

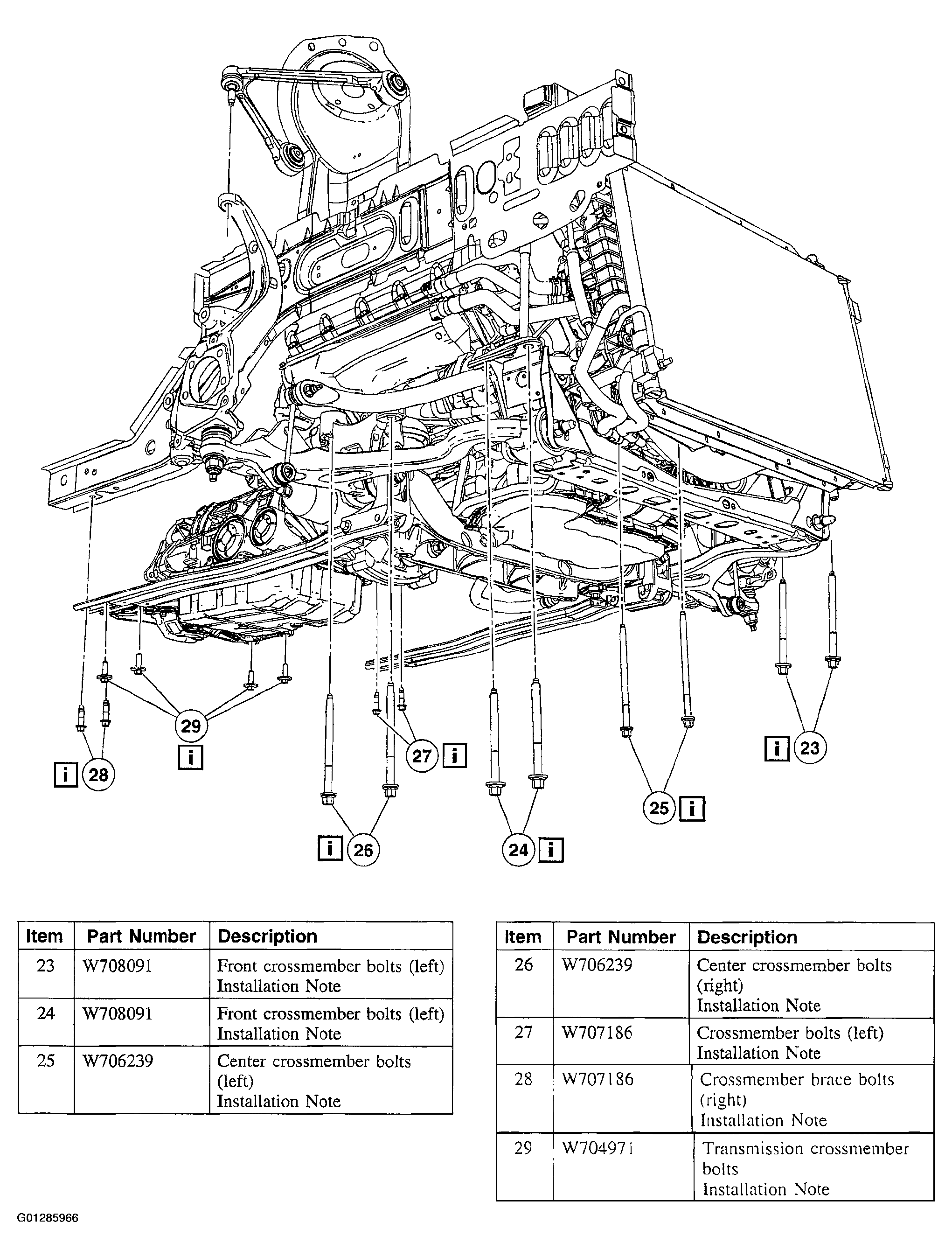

   Fig 7: Installing Front Crossmember Bolt

   Courtesy of FORD MOTOR CO.
7. Illustration 7 of 17. Install the components in the order indicated in the following illustration and table.

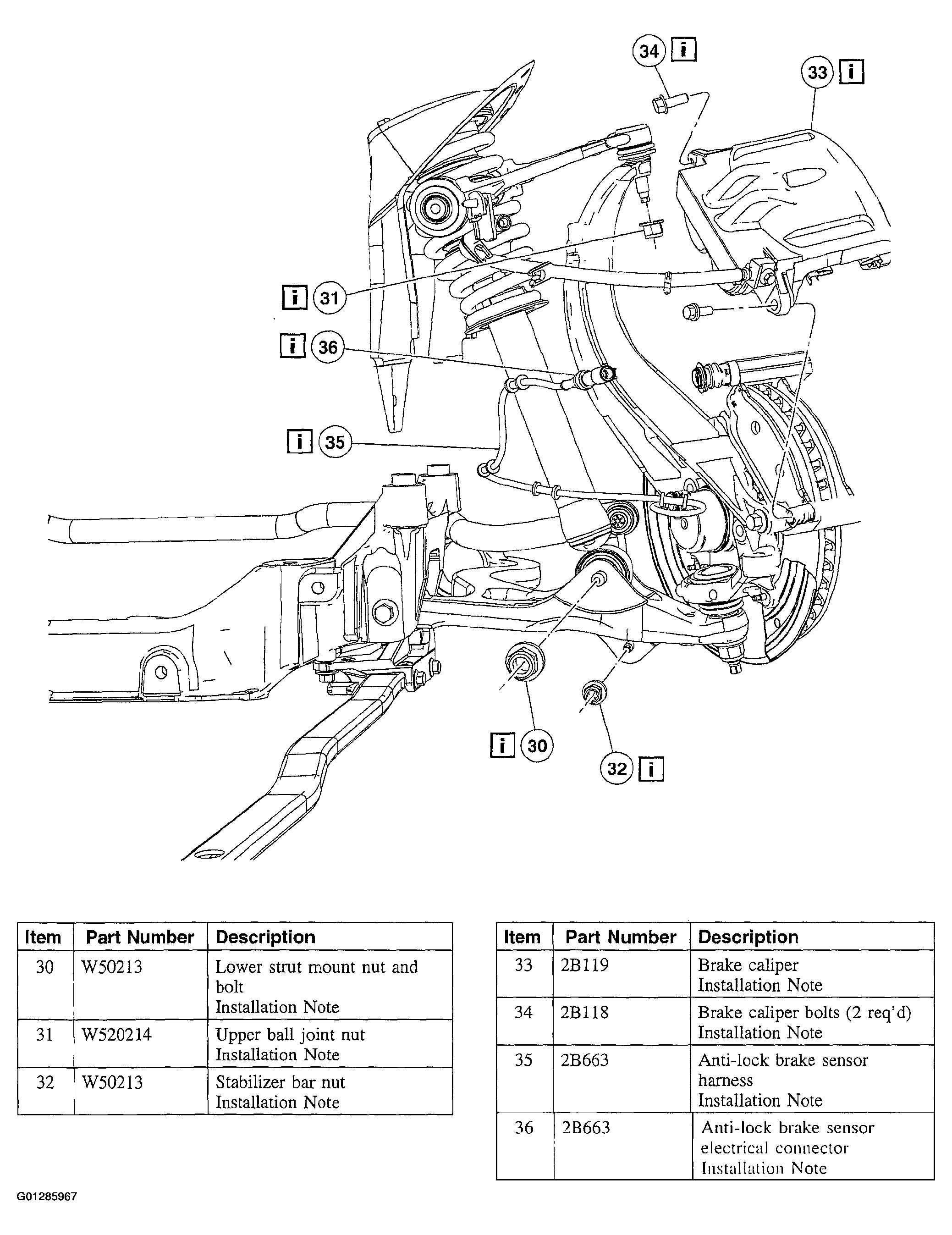

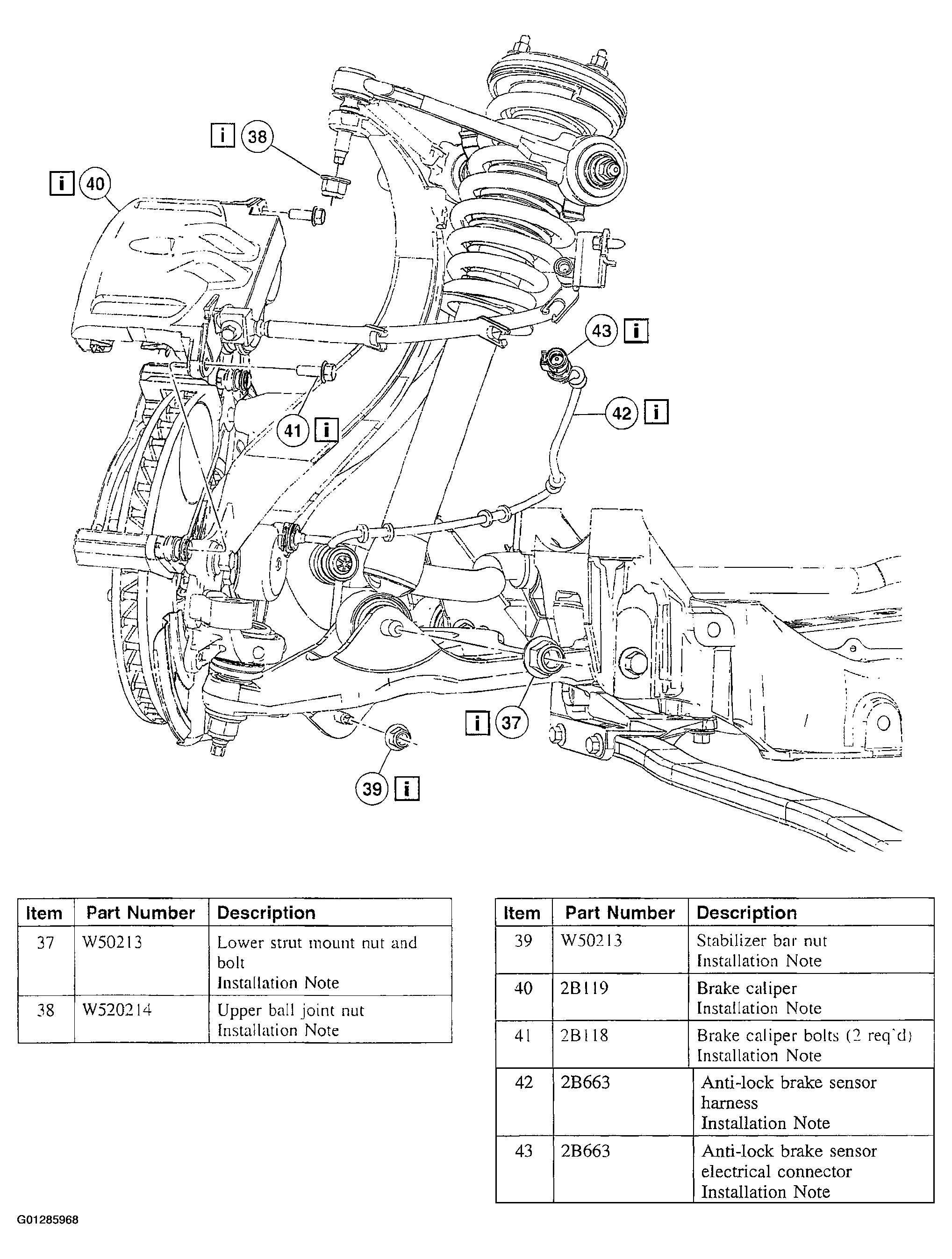

   Fig 8: Installing Lower Strut Mounting And Bolts

   Courtesy of FORD MOTOR CO.
8. Illustration 8 of 17. Install the components in the order indicated in the following illustration and table.
   Fig 9: Installing Lower Strut Mounting Bolt

   Courtesy of FORD MOTOR CO.
9. Illustration 9 of 17. Install the components in the order indicated in the following illustration and table.

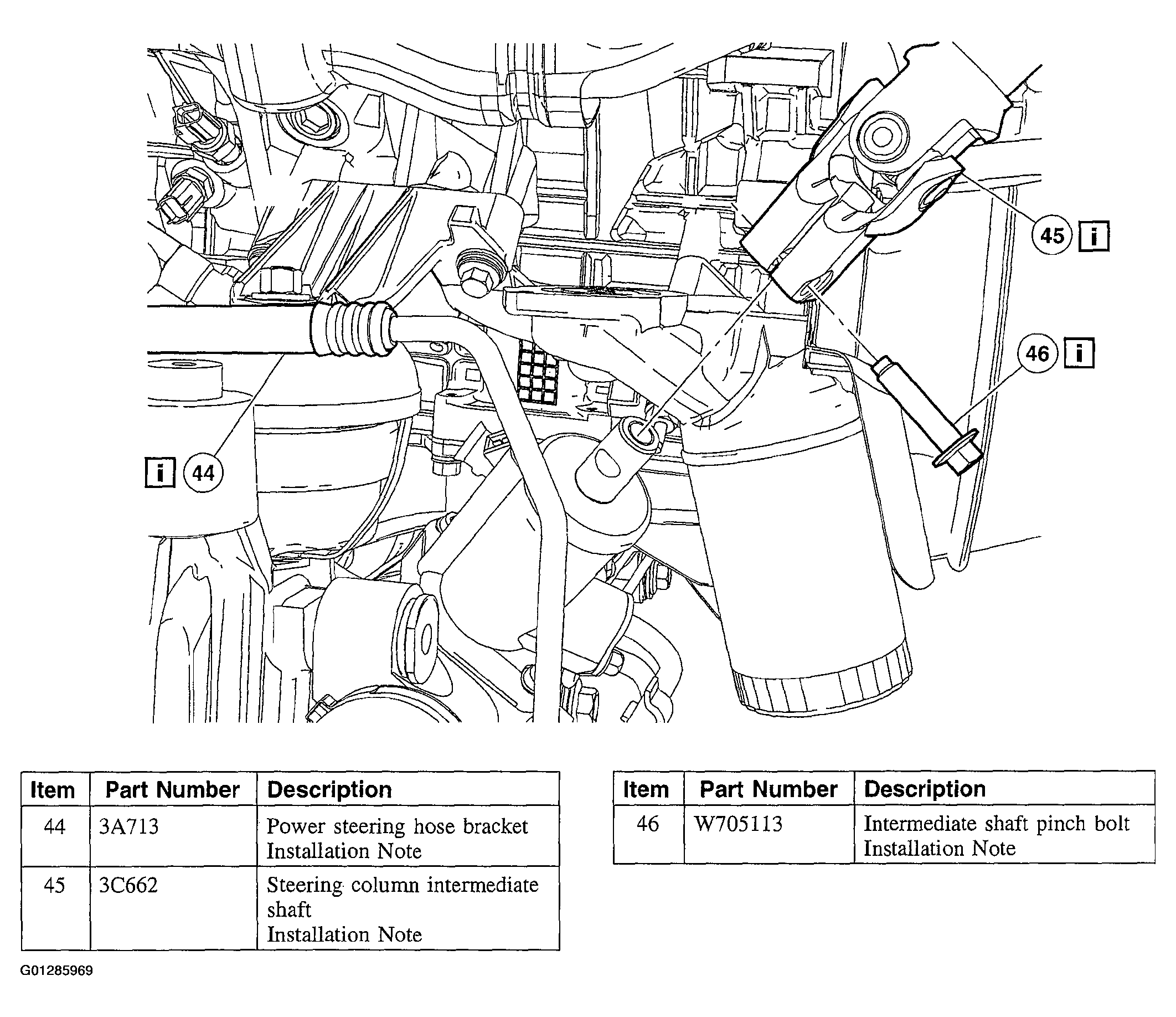

   Fig 10: Installing Power Steering Hose Bracket

   Courtesy of FORD MOTOR CO.
10. Illustration 10 of 17. Install the components in the order indicated in the following illustration and table.

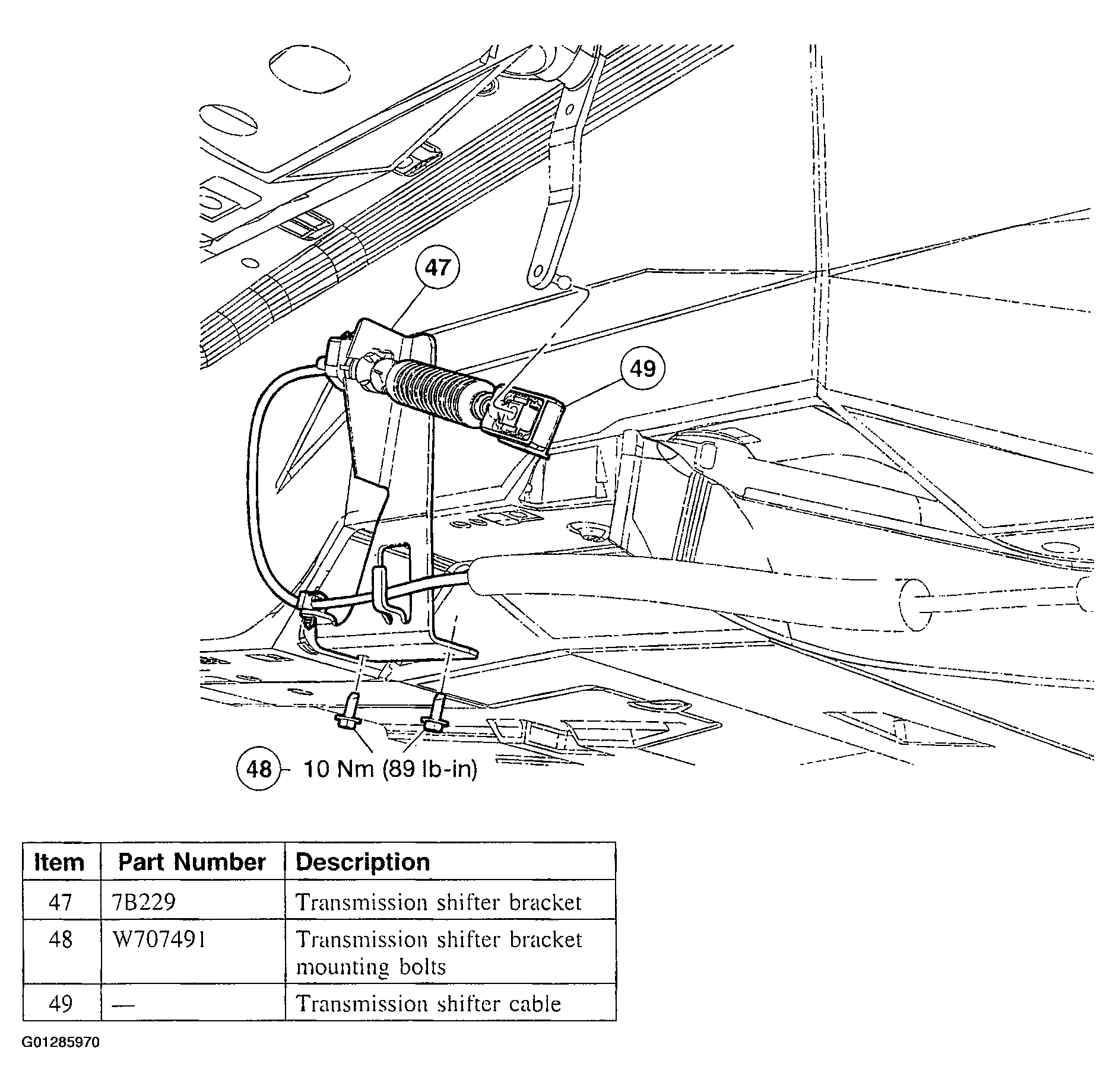

    Fig 11: Installing Transmission Bracket

    Courtesy of FORD MOTOR CO.
11. Illustration 11 of 17. Install the components in the order indicated in the following illustration and table.

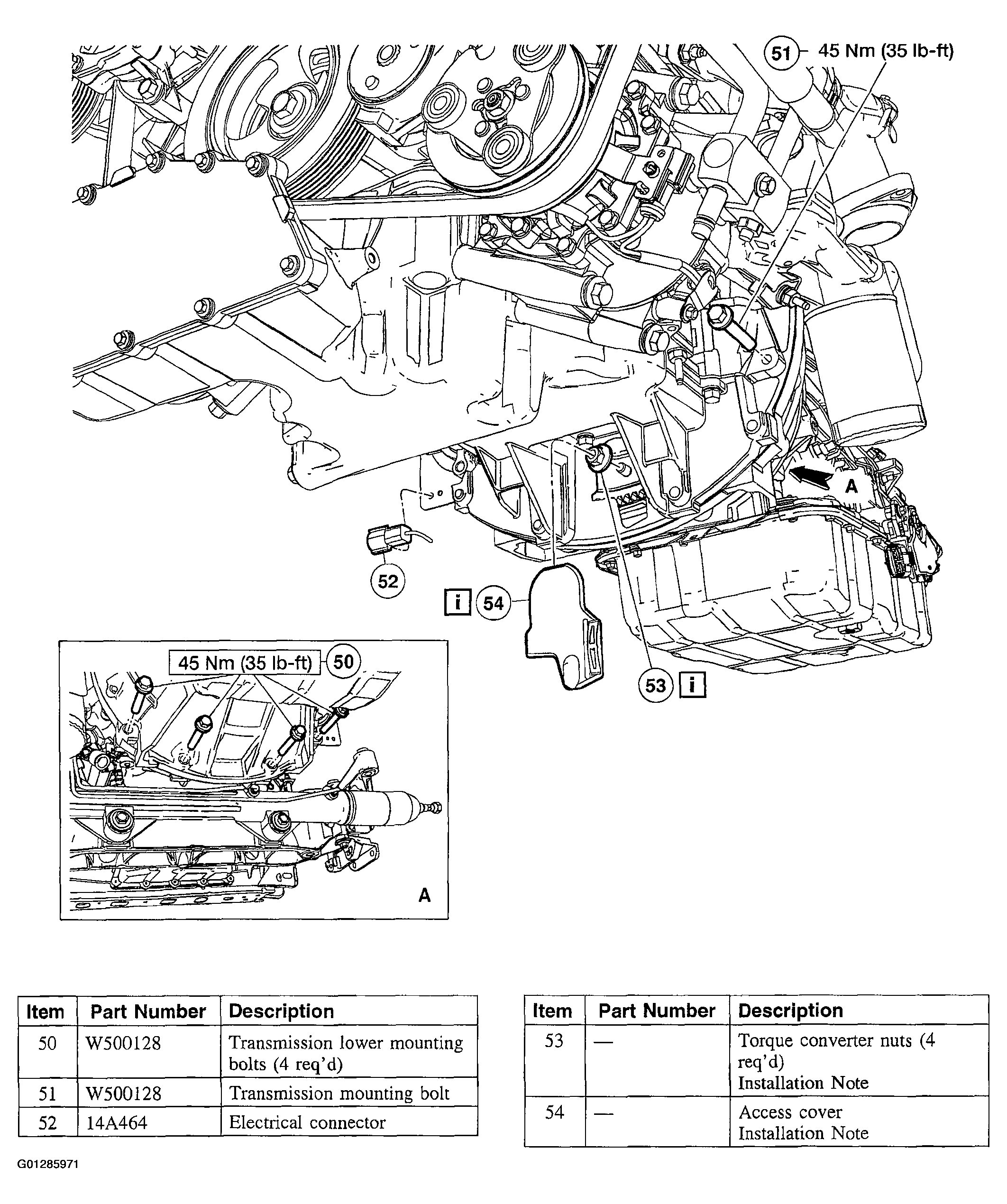

    Fig 12: Installing Transmission Lower Mounting Bolts

    Courtesy of FORD MOTOR CO.
12. Illustration 12 of 17. Install the components in the order indicated in the following illustration and table.

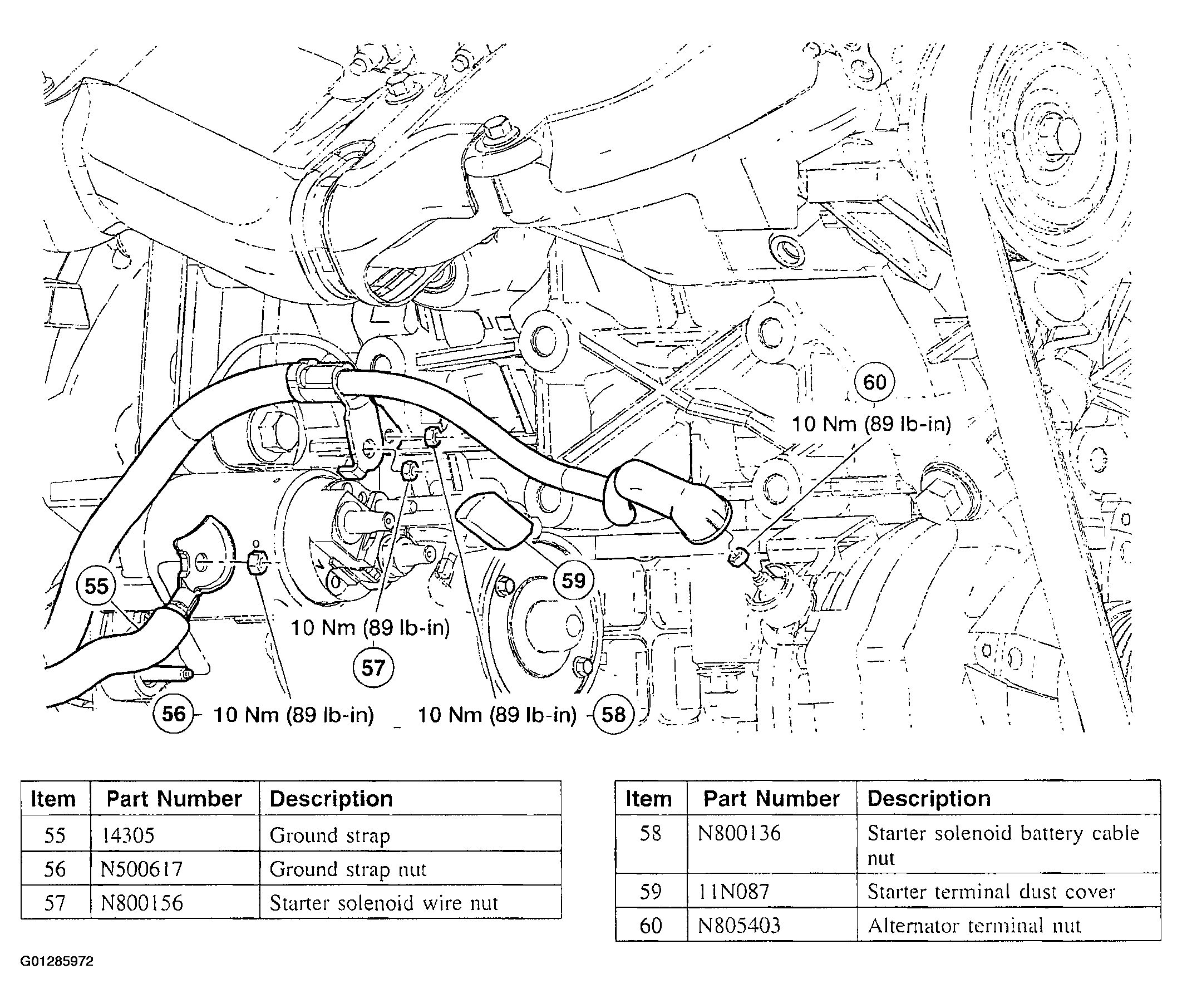

    Fig 13: Installing Ground Strap

    Courtesy of FORD MOTOR CO.
13. Illustration 13 of 17. Install the components in the order indicated in the following illustration and table.

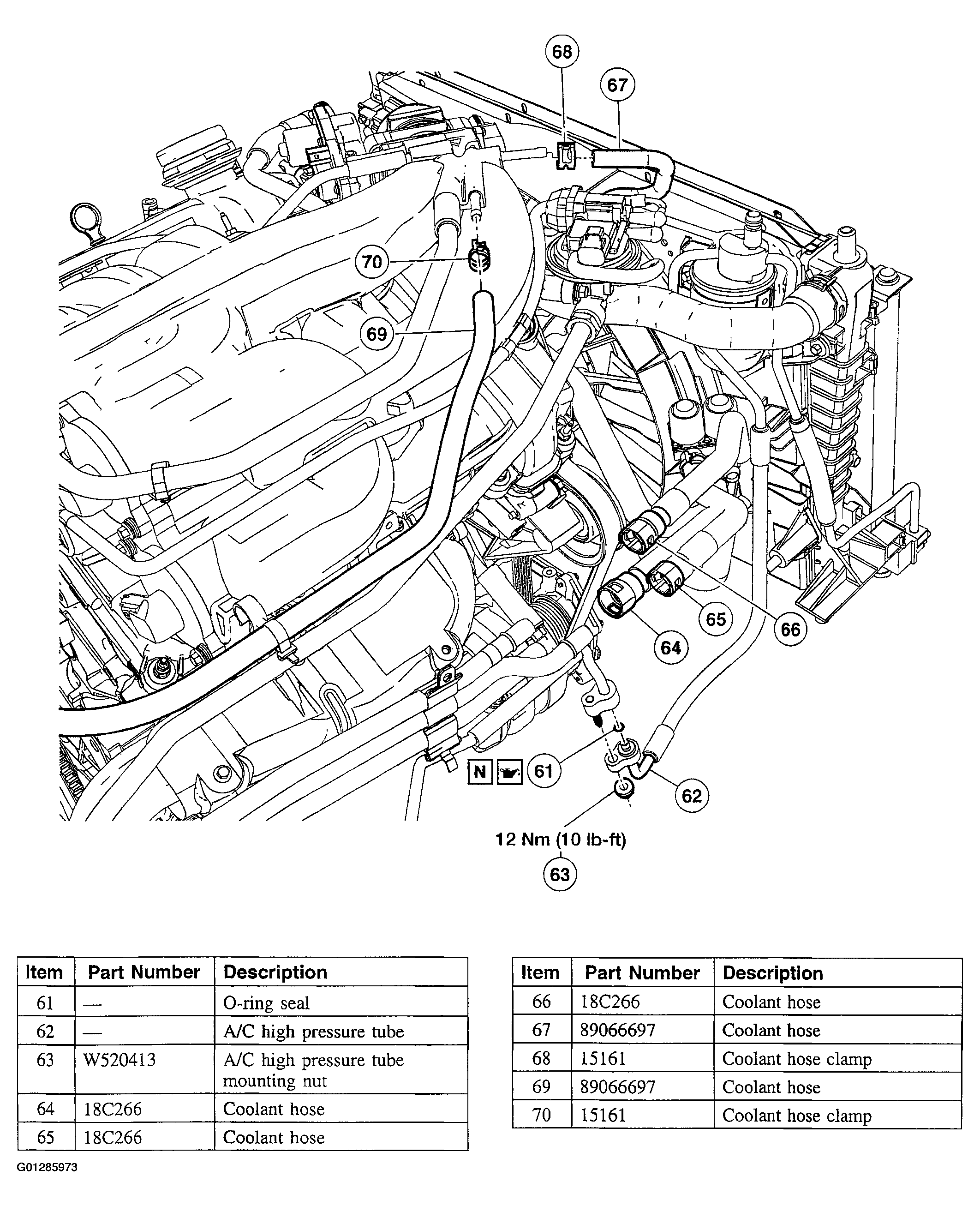

    Fig 14: Installing O-Ring

    Courtesy of FORD MOTOR CO.
14. Illustration 14 of 17. Install the components in the order indicated in the following illustration and table.

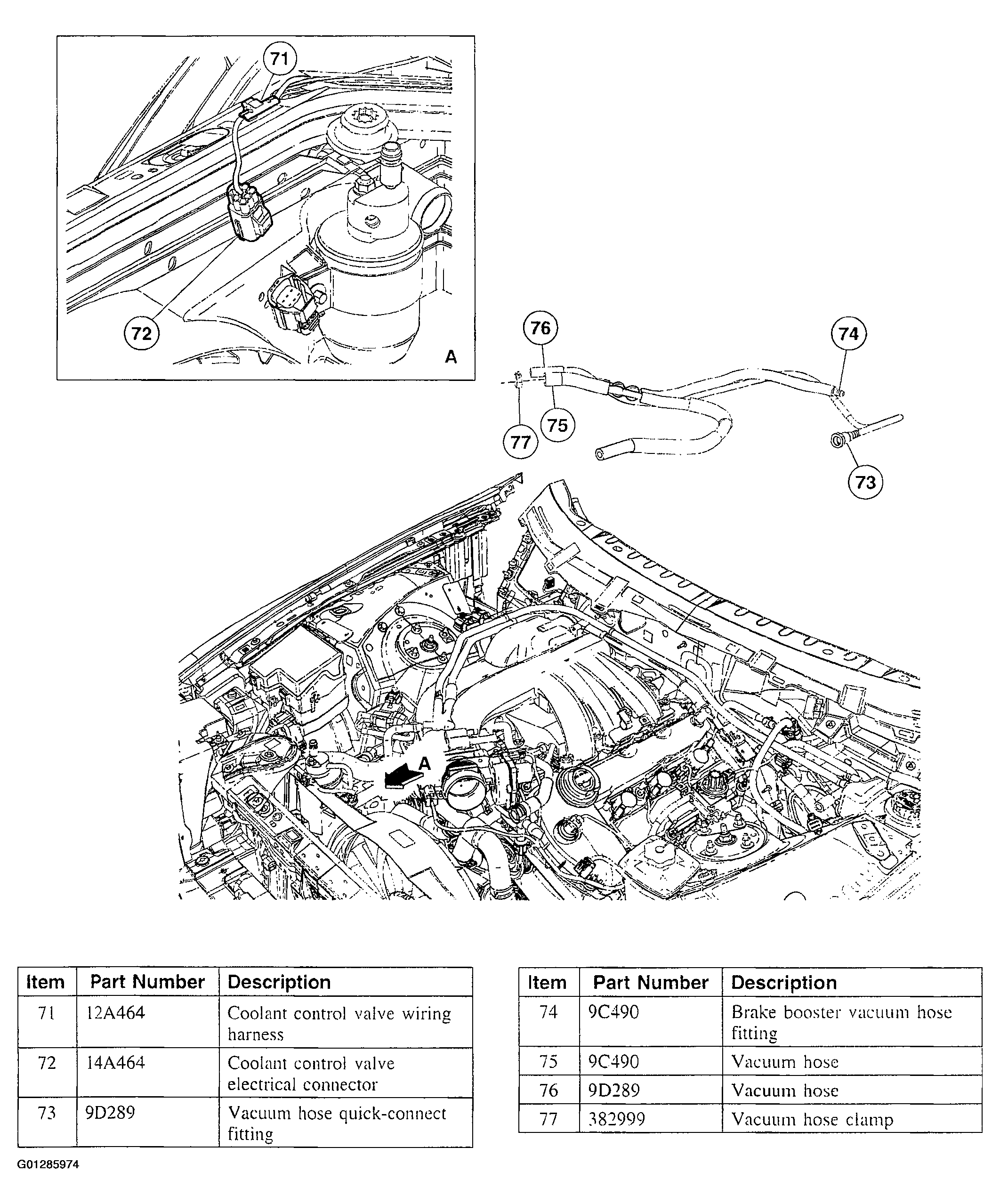

    Fig 15: Installing Coolant Control Valve Wiring Harness

    Courtesy of FORD MOTOR CO.
15. Illustration 15 of 17. Install the components in the order indicated in the following illustration and table.

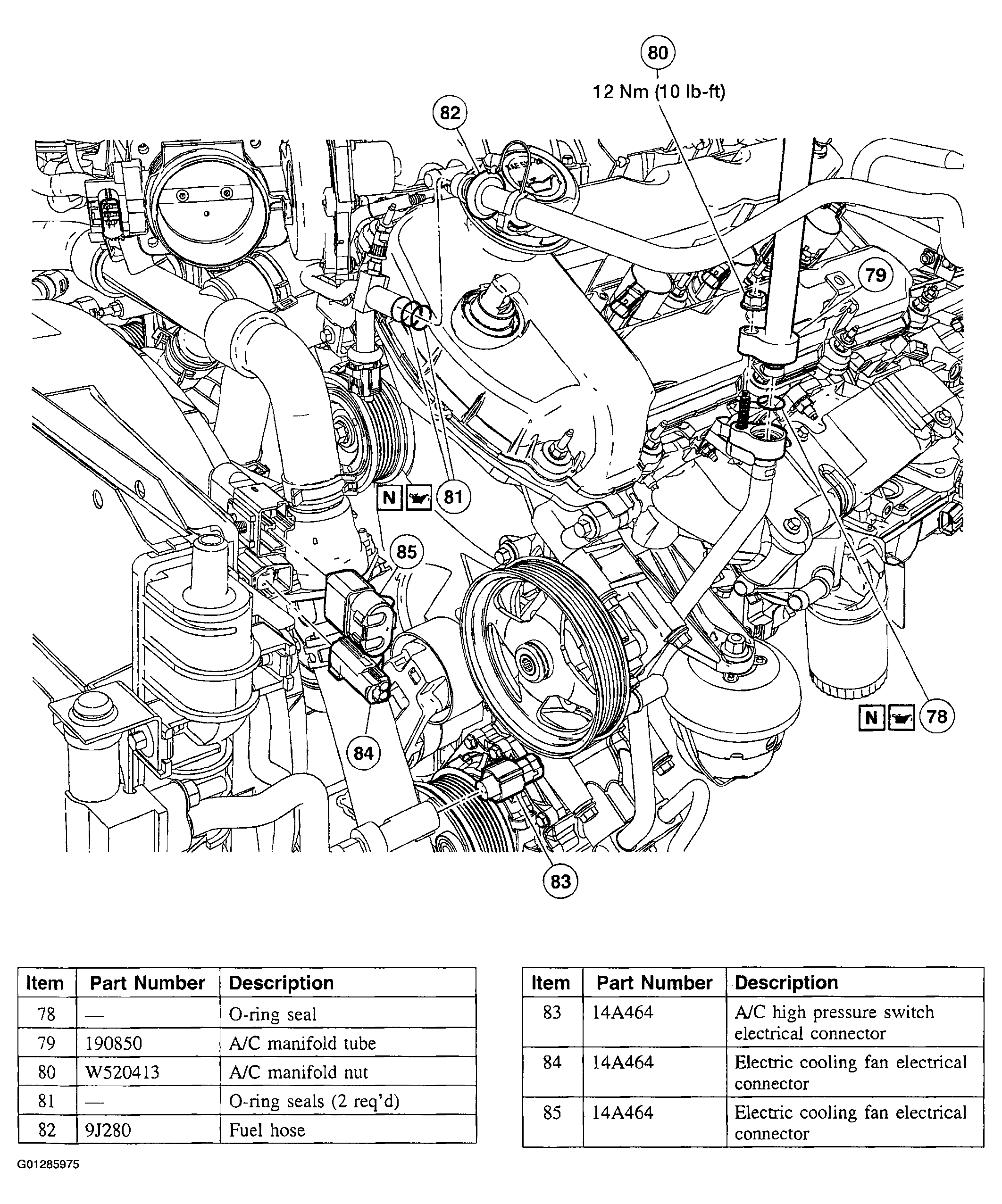

    Fig 16: Installing O-Ring Seal

    Courtesy of FORD MOTOR CO.
16. Illustration 16 of 17. Install the components in the order indicated in the following illustration and table.

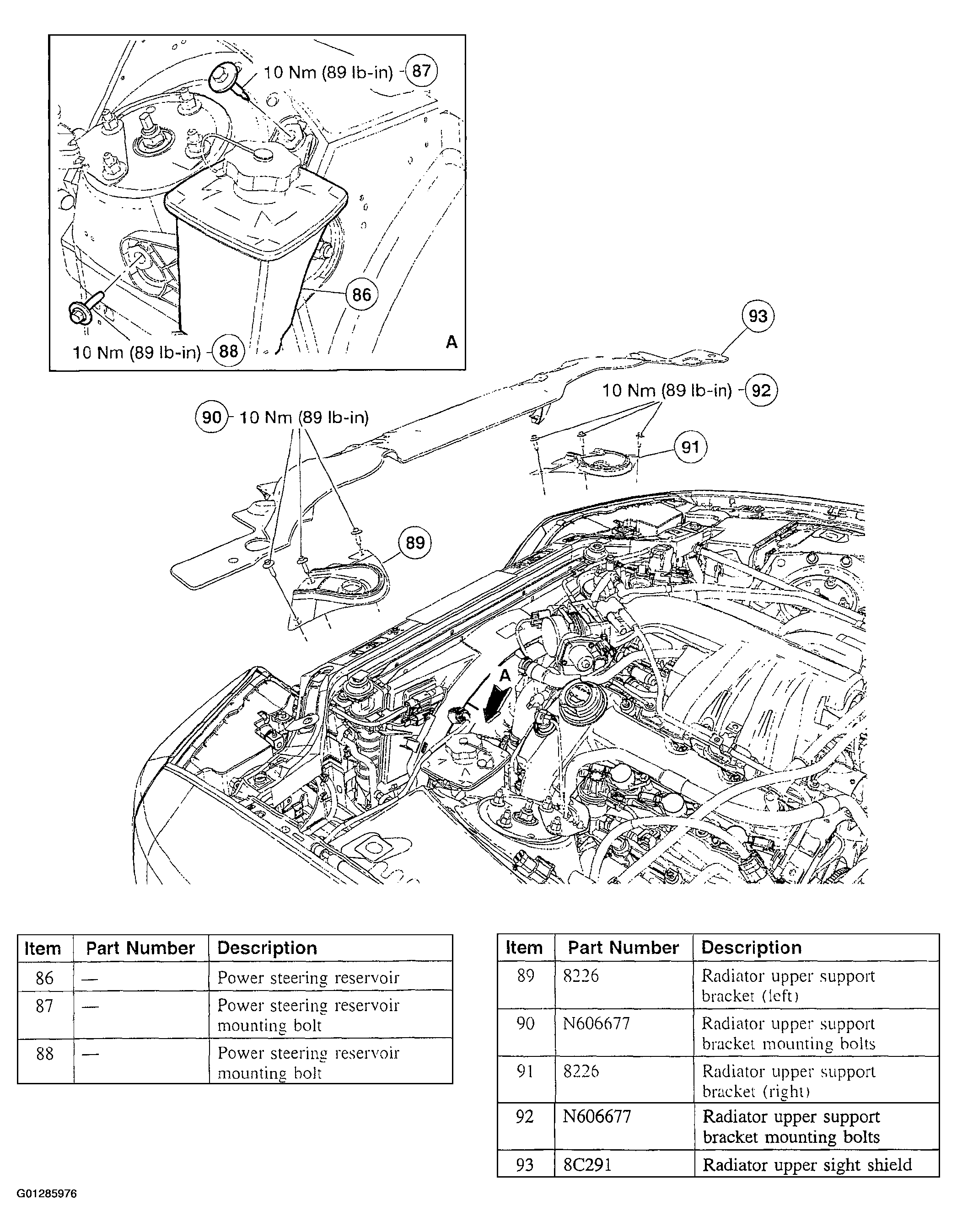

    Fig 17: Installing Power Steering Reservoir

    Courtesy of FORD MOTOR CO.
17. Illustration 17 of 17. Install the components in the order indicated in the following illustration and table.

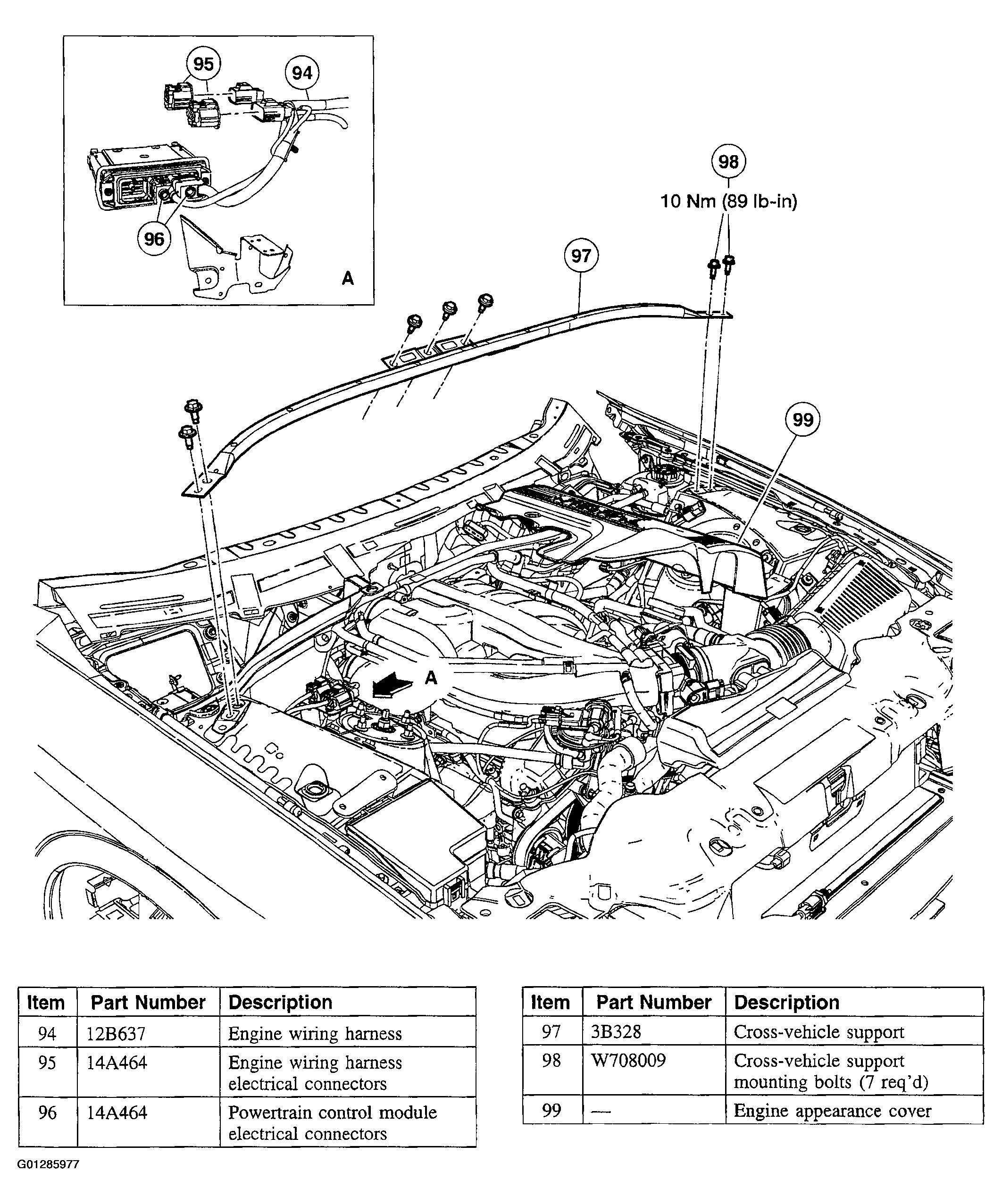

    Fig 18: Installing Cross Vehicle Support

    Courtesy of FORD MOTOR CO.
18. Install the RH and LH subframe splash shields.
19. Install the front splash shield.
20. Install the RH and LH inner fender splash shields.
21. Install the exhaust system. For additional information, Refer to EXHAUST SYSTEM .
22. Install the drive shaft. For additional information, Refer to DRIVELINE SYSTEM .
23. Install the clean air inlet duct. For additional information, Refer to CLIMATE CONTROL SYSTEM .
24. Charge the A/C system. For additional information, Refer to CLIMATE CONTROL SYSTEM .
25. Fill and bleed the engine cooling system. For additional information, Refer to ENGINE COOLING .
26. Install the air cleaner assembly. .
27. Connect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
