Communications Network: Notes

WARNING: This page is about a different car, the 2004 Ford Explorer Sport Trac. However, it is still accessible from the selected car via links, so may be relevant.

Refer to SYSTEM WIRING DIAGRAMS article for schematic and connector information.

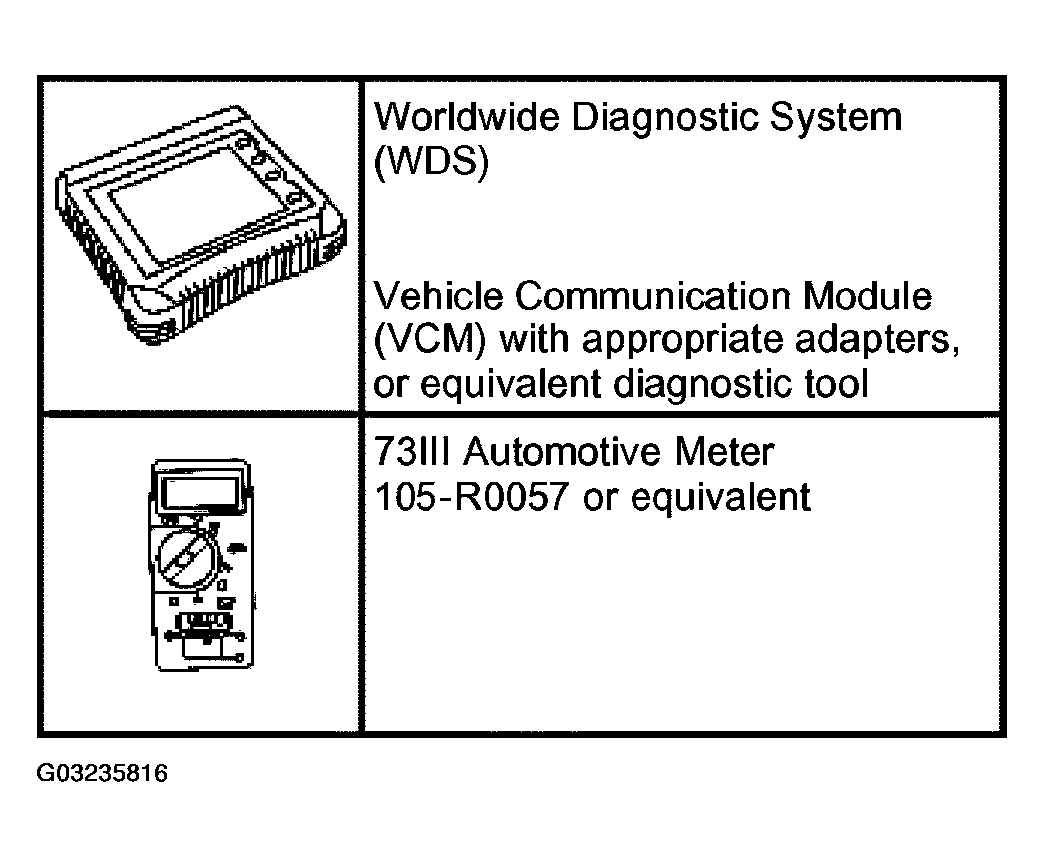

Fig 1: Identifying Special Tool(s)
G03235816Courtesy of FORD MOTOR CO.
