Digital Transmission Range Sensor
WARNING:
The electrical power to the air suspension system must be shut OFF prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the right kick panel area. Failure to do so may result in unexpected inflation or deflation of the air springs which may result in shifting of the vehicle during these operations.
NOTE:
Transmission Range Sensor Alignment Gauge (T97L-70010-A) is required for this procedure. See Fig 1.
- Turn air suspension switch to the OFF position. Raise and support vehicle. Disconnect manual shift control cable. Disconnect Digital Transmission Range (DTR) sensor harness connector. Remove manual control lever nut. Loosen DTR sensor bolts.

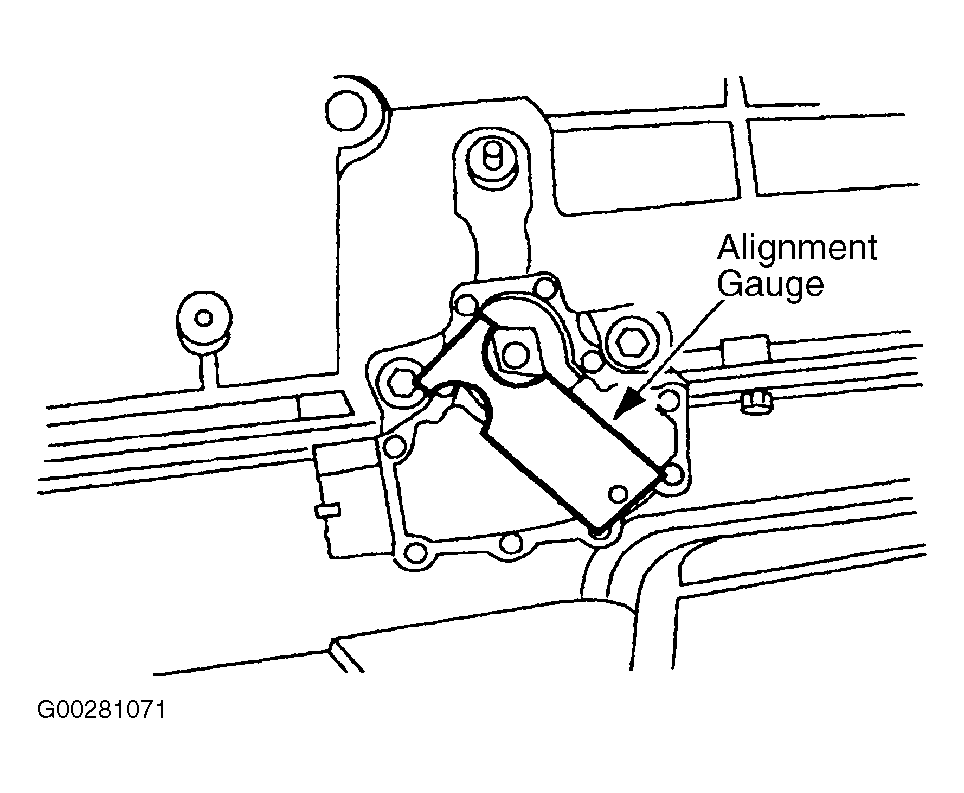

- Manual shift lever must be in Neutral. Using Transmission Range Sensor Alignment Gauge (T97L-70010-A), align DTR sensor slots. See Fig 2. Tighten DTR sensor bolts to specification. See TORQUE SPECIFICATIONS . With manual lever in Neutral, connect shift lever control cable. Connect DTR harness connector. Reactivate air suspension.
