Specifications
>>
Band and Clutch Application Chart A
Band and Clutch Application Chart A

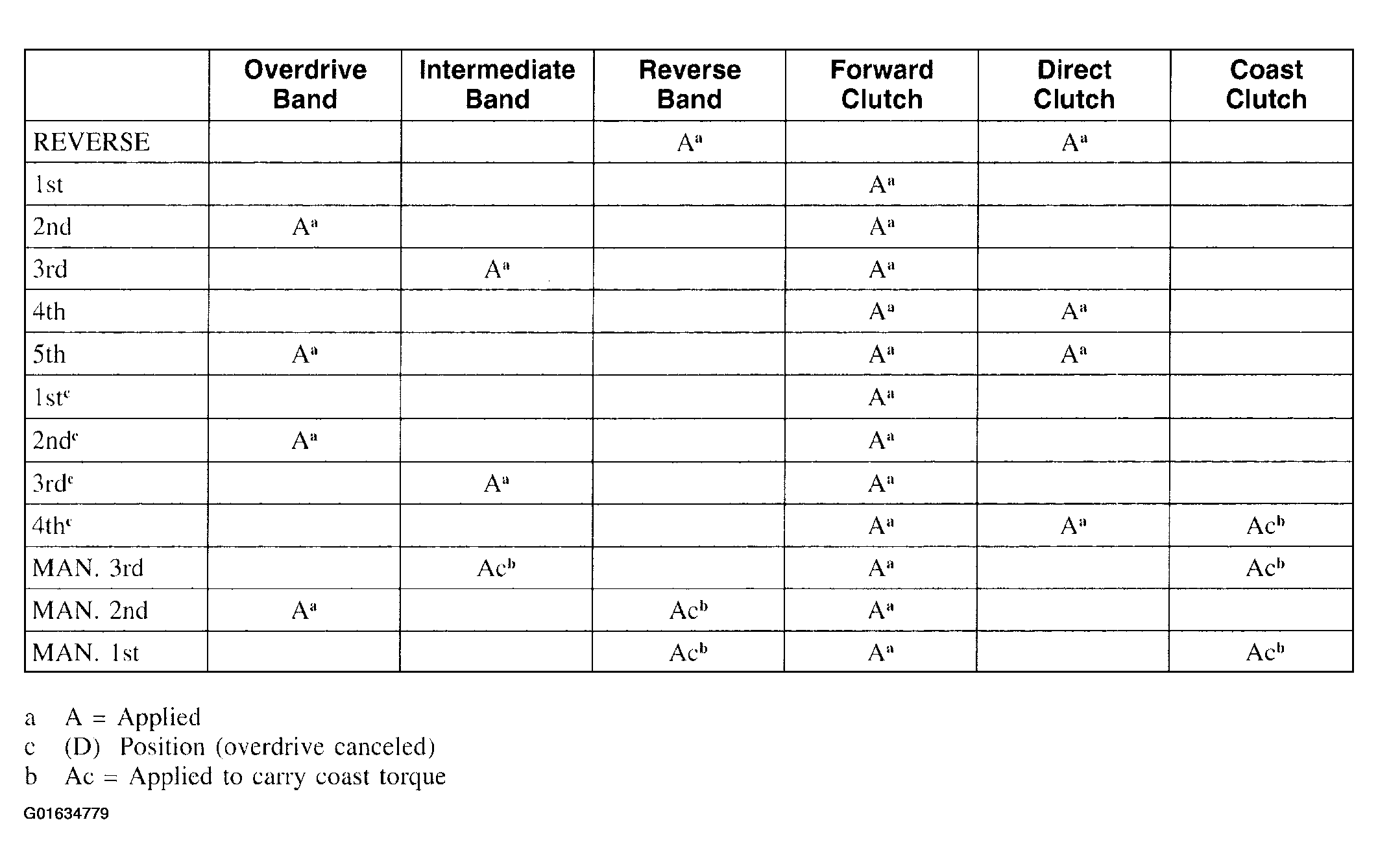

Fig 1: Band and Clutch Application Chart A
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
