Transmission Support Insulator - 4x4: Notes

1. With the vehicle in PARK, position on a hoist.
2. Support the transmission with a transmission jack.
3. Remove the components in the order indicated the following illustration.
4. To install, reverse the removal procedure.

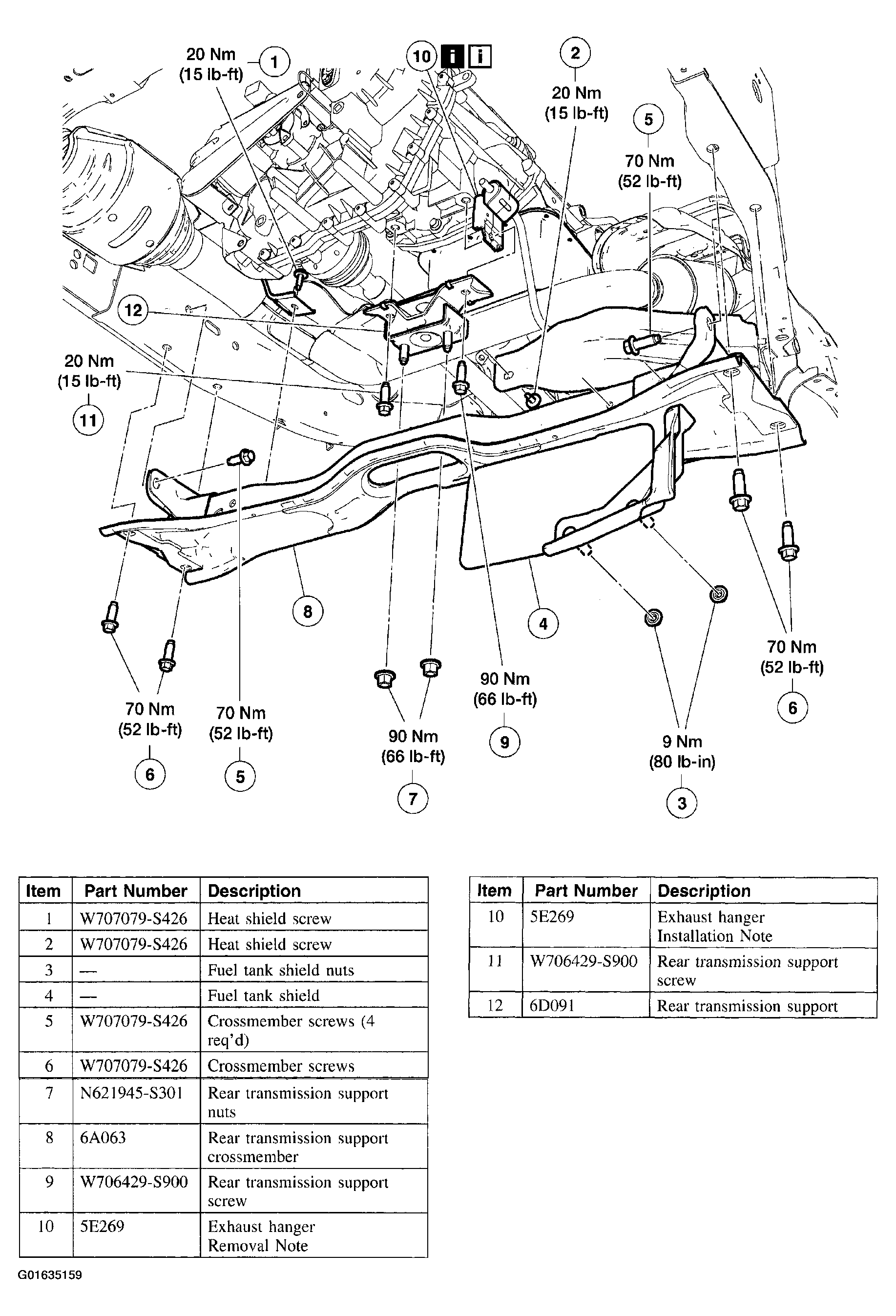

   Fig 1: Removal Sequence Of Transmission Support Insulator - 4x4

   Courtesy of FORD MOTOR CO.

Item 10: Exhaust Hanger Removal Note

1. Position the hanger out of the way.

Item 10: Exhaust Hanger Installation Note

1. Install the exhaust hanger prior to installing the screw for the rear support insulator.
