Solenoid Body Assembly: Material

Fig 1: Materials
G01635112Courtesy of FORD MOTOR CO.
NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts (either soft or firm) and this is a temporary condition and will eventually return to normal operating condition.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. With the vehicle in PARK, position on a hoist.
  3. Remove the components in the order indicated in the following illustration.
  4. To install, reverse the removal procedure.

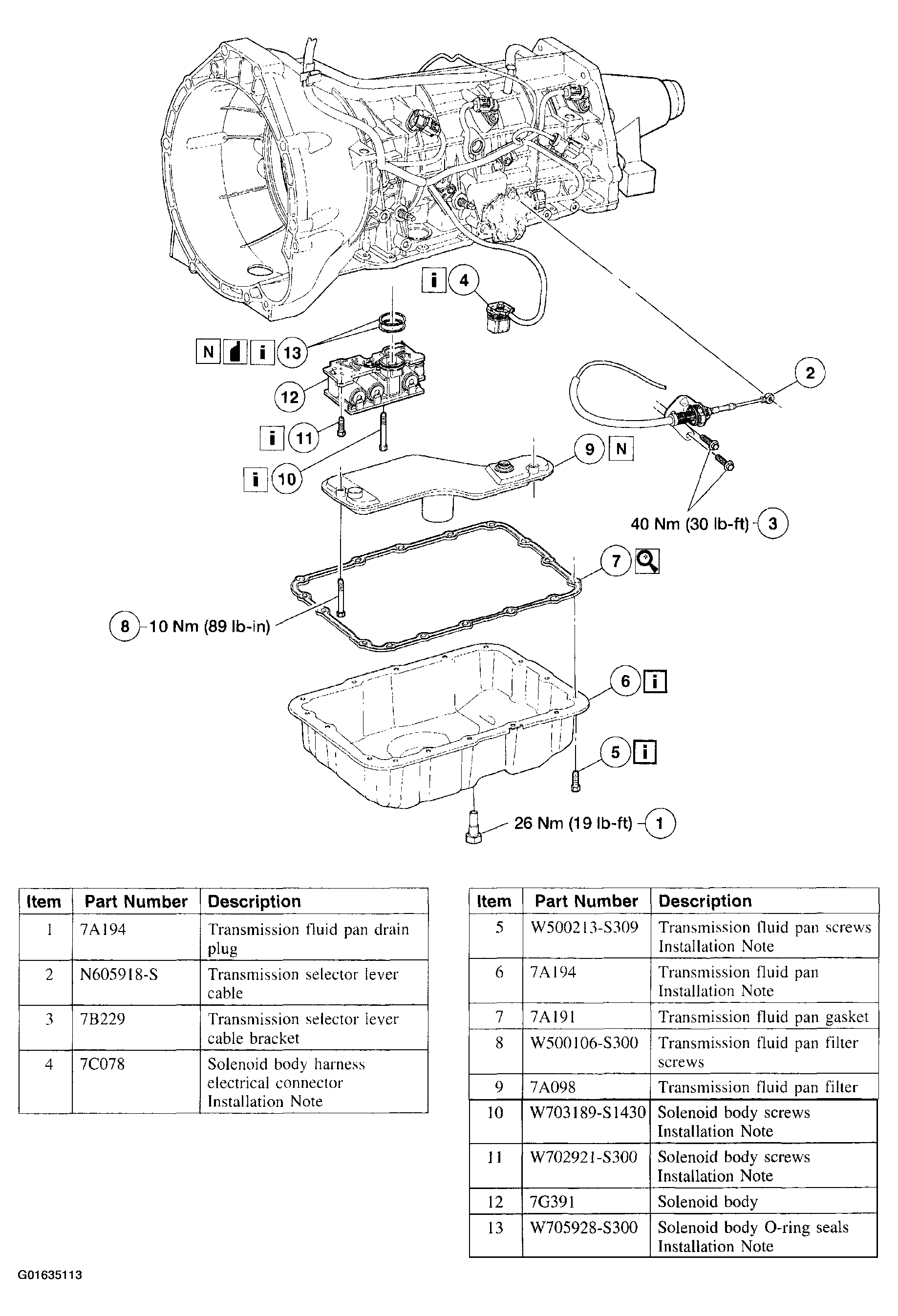

    Fig 2: Removal Sequence Of Solenoid Body Assembly
    G01635113Courtesy of FORD MOTOR CO.
  5. Verify that the shift cable is adjusted correctly. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .

Item 13: Solenoid Body O-Ring Seals Installation Note

  1. Install new O-ring seals on the solenoid body connector. Lubricate the O-ring seals with clean automatic transmission fluid.

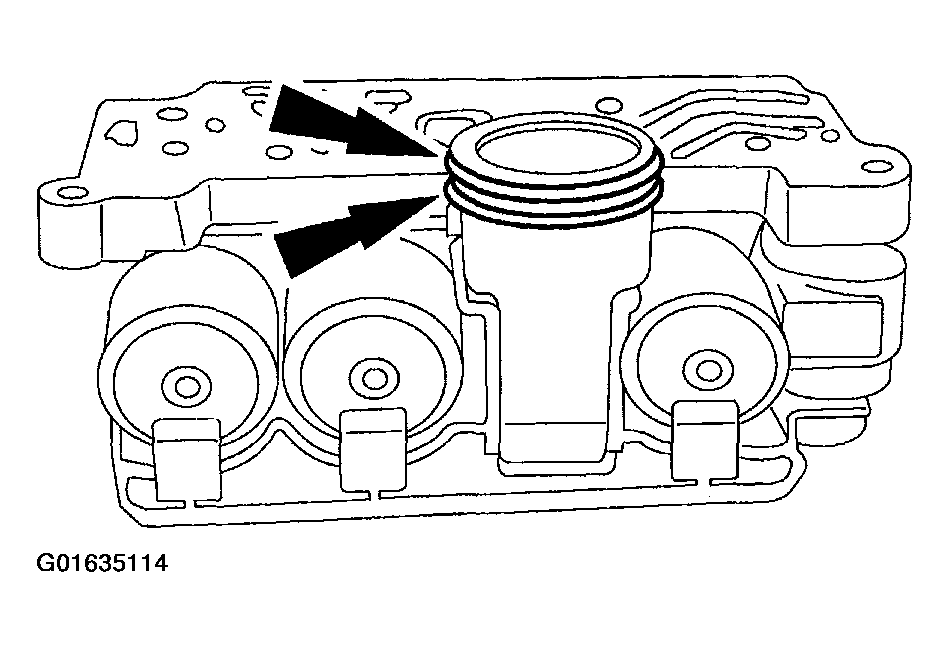

    Fig 3: Installing New O-Ring Seals On Solenoid Body Connector
    G01635114Courtesy of FORD MOTOR CO.

Item 10 and 11: Solenoid Body Screws Installation Note

    CAUTION: Inspect the transmission case bore to make sure it is free of foreign material and not damaged. If damaged, a transmission leak may occur.

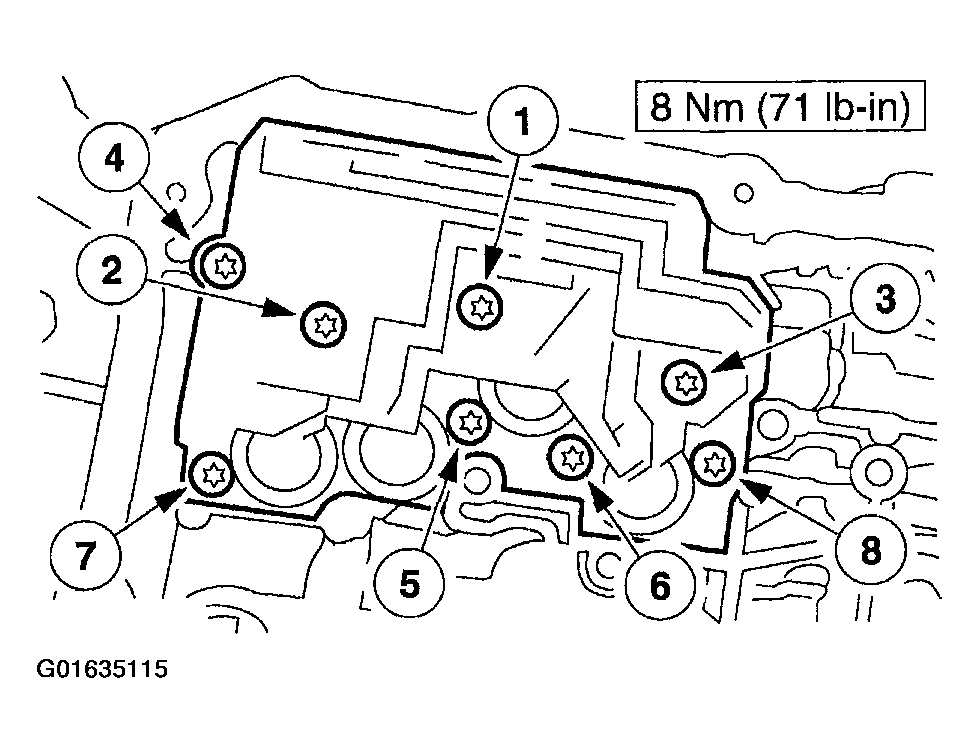

    Fig 4: Solenoid Body Screws Tightening Sequence
    G01635115Courtesy of FORD MOTOR CO.
  1. Install the solenoid body. Tighten the screws in the sequence shown.

Item 6: Transmission Fluid Pan Installation Note

  1. Install the transmission fluid pan and gasket and loosely install the screws.

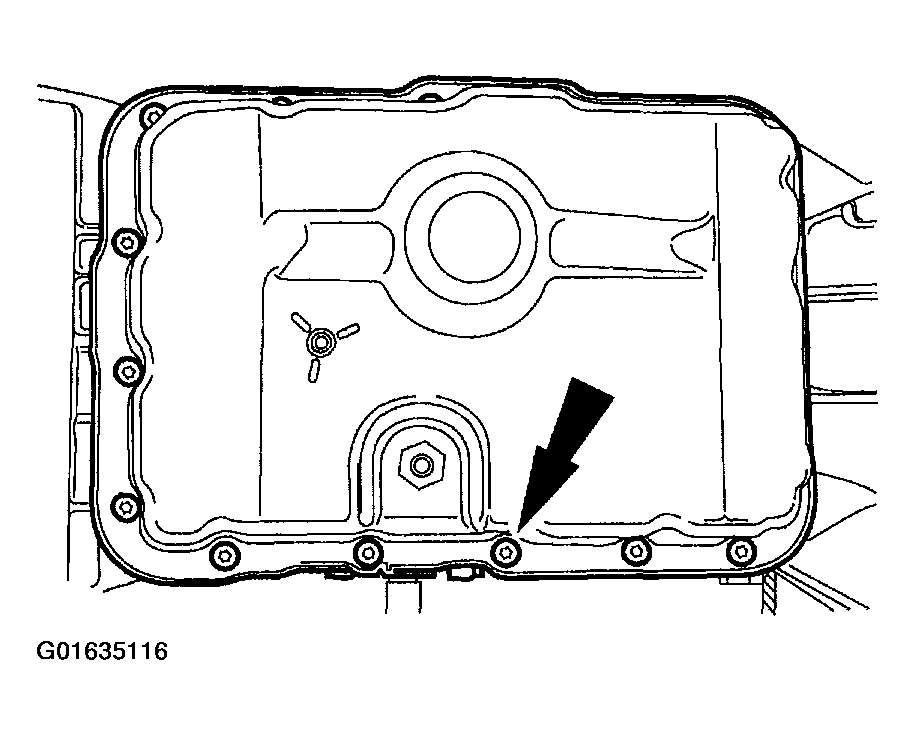

    Fig 5: Installing Transmission Fluid Pan And Gasket
    G01635116Courtesy of FORD MOTOR CO.

Item 5: Transmission Fluid Pan Screws Installation Note

  1. Tighten the screws in a crisscross sequence.

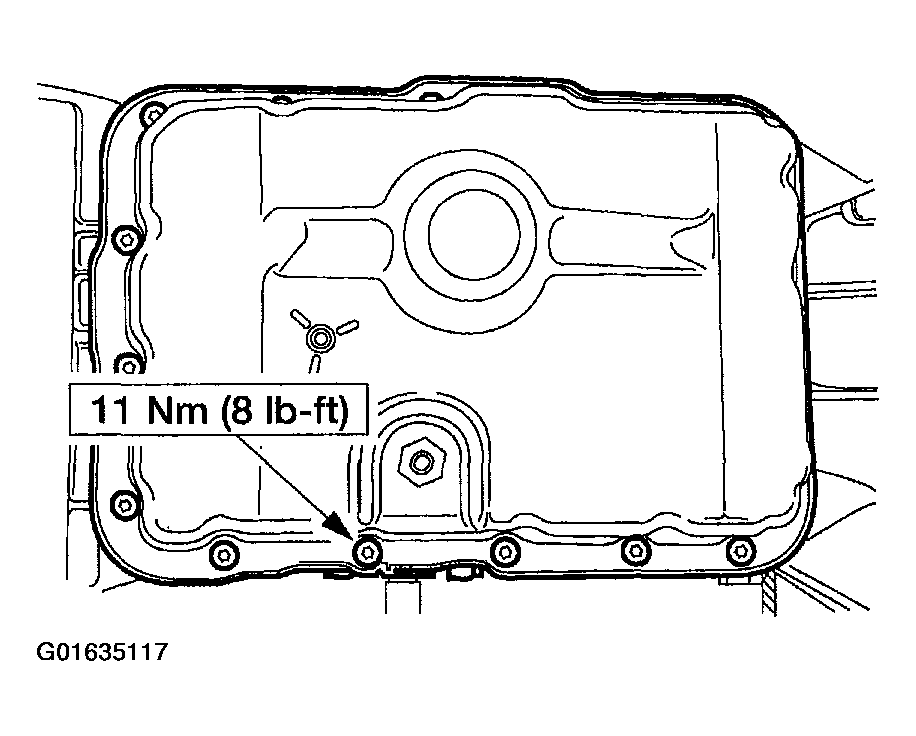

    Fig 6: Tightening Transmission Fluid Pan Screws In A Crisscross Sequence
    G01635117Courtesy of FORD MOTOR CO.

Item 4: Solenoid Body Harness Electrical Connector Installation Note

    CAUTION: Damage will occur to the solenoid body assembly if the screw is tightened above the specification.
    NOTE: Always install new O-ring seals on the vehicle harness connector.
    NOTE: Clean the area around the connector to prevent contamination of the solenoid body connector.
    NOTE: Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.

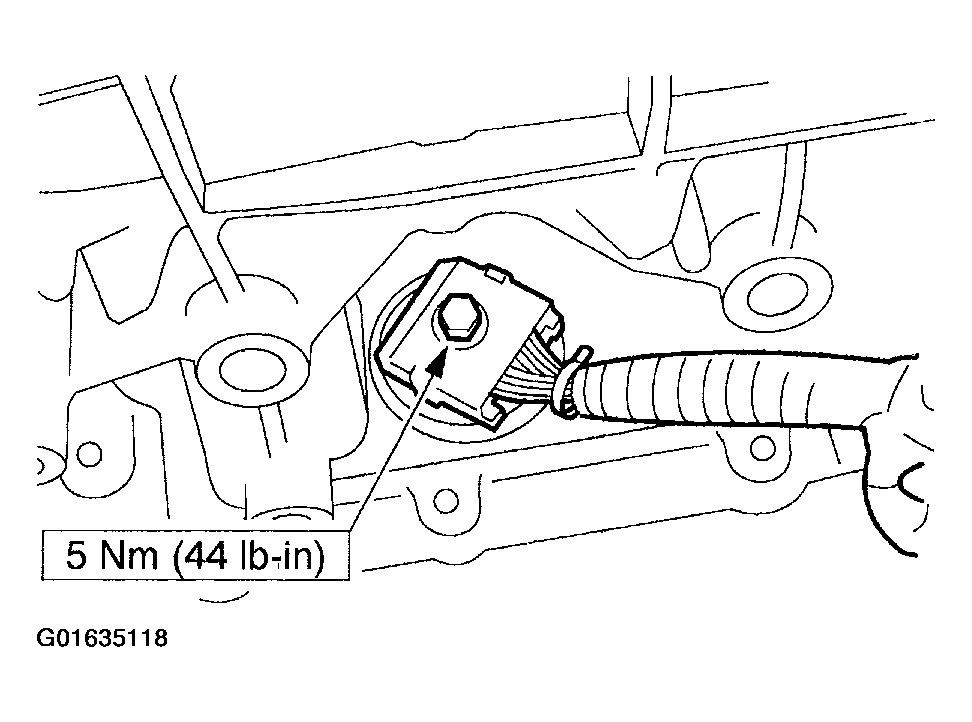

    Fig 7: Connecting Connector
    G01635118Courtesy of FORD MOTOR CO.
  1. Install and lubricate new O-ring seals on the transmission connector and connect the connector.
