Brake Shift Interlock Actuator

  1. Remove the components in the order indicated in the following illustration.
  2. To install, reverse the removal procedure.

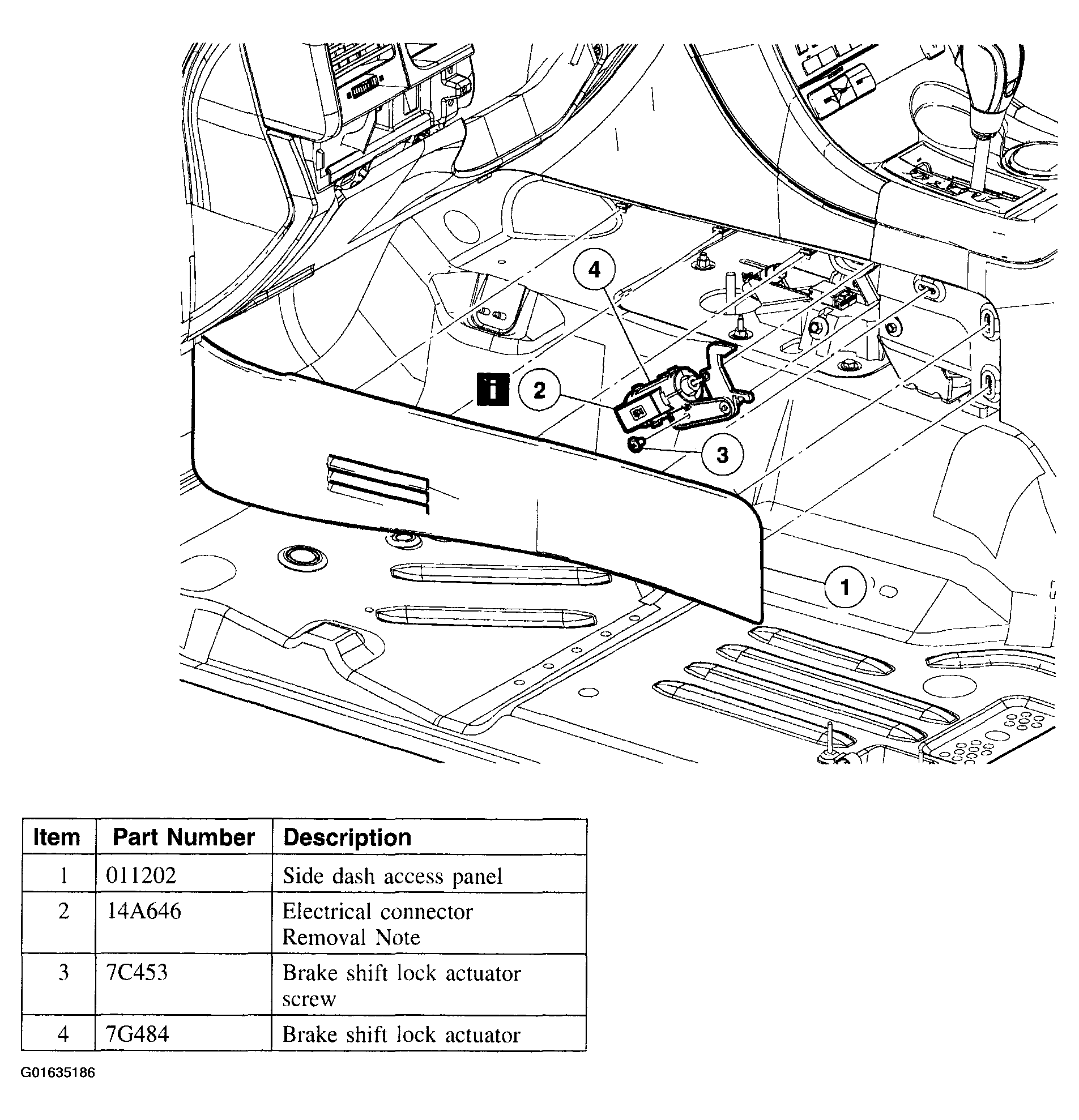

    Fig 1: Removal Sequence Of Brake Shift Interlock Actuator
    G01635186Courtesy of FORD MOTOR CO.

Item 2: Electrical Connector Removal Note

  1. Disconnect the electrical connector

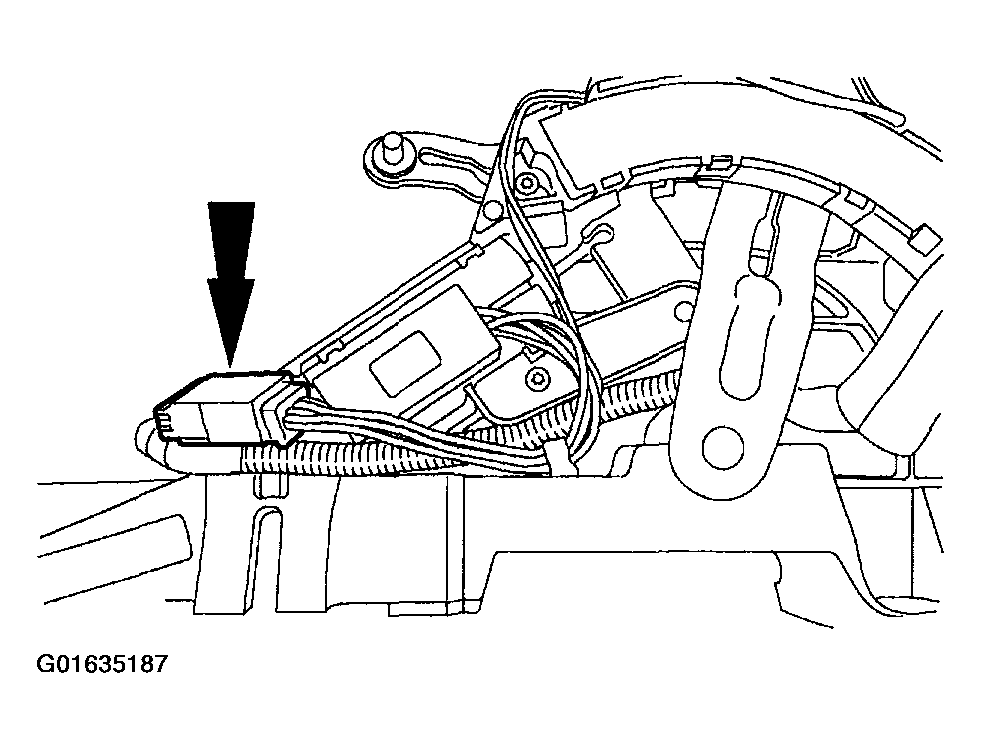

    Fig 2: Disconnecting Electrical Connector
    G01635187Courtesy of FORD MOTOR CO.
