Transmission Component Index
Transmission Component Index

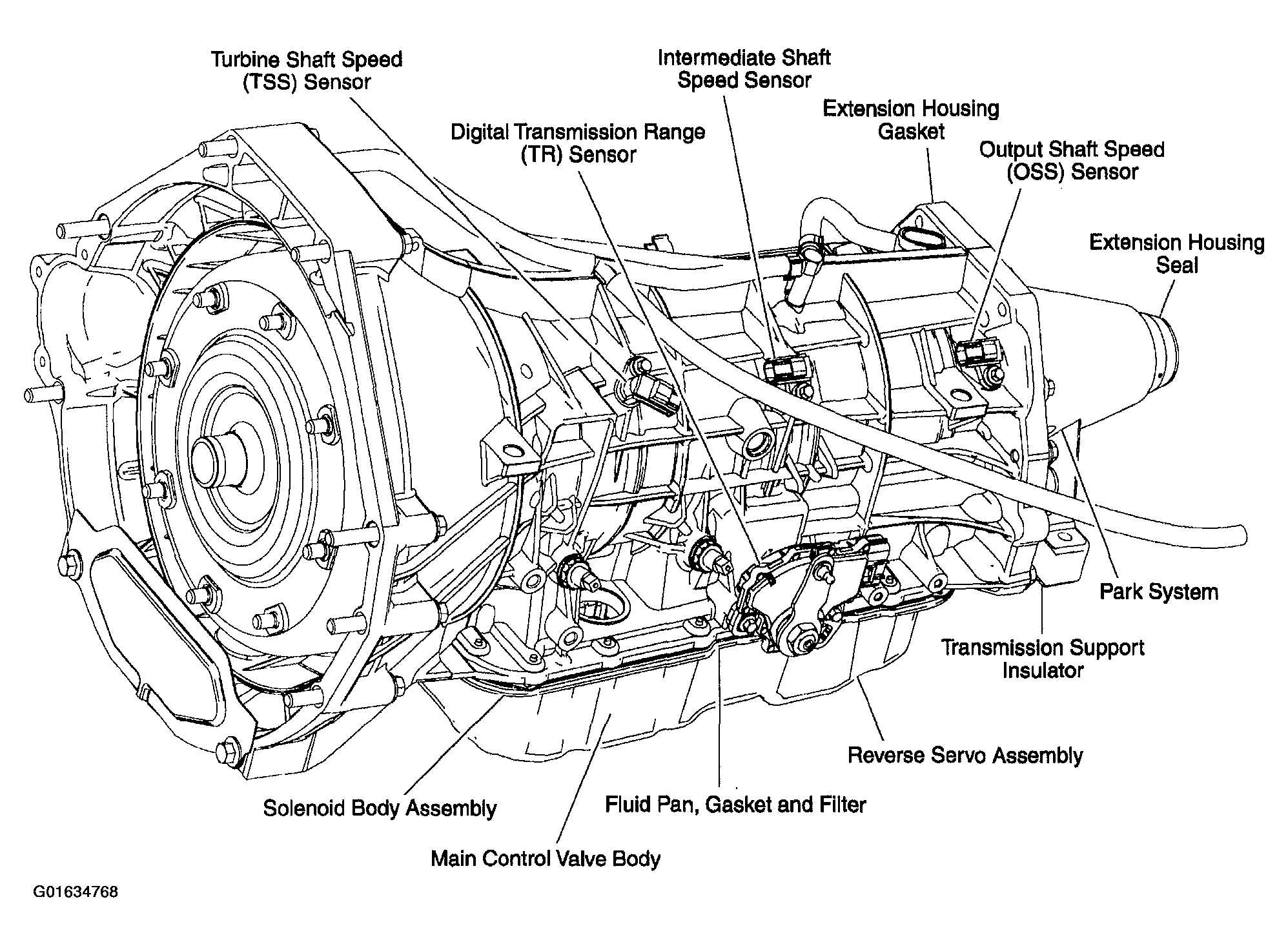

Fig 1: Identifying Transmission Components (1 Of 2)
Courtesy of FORD MOTOR CO.

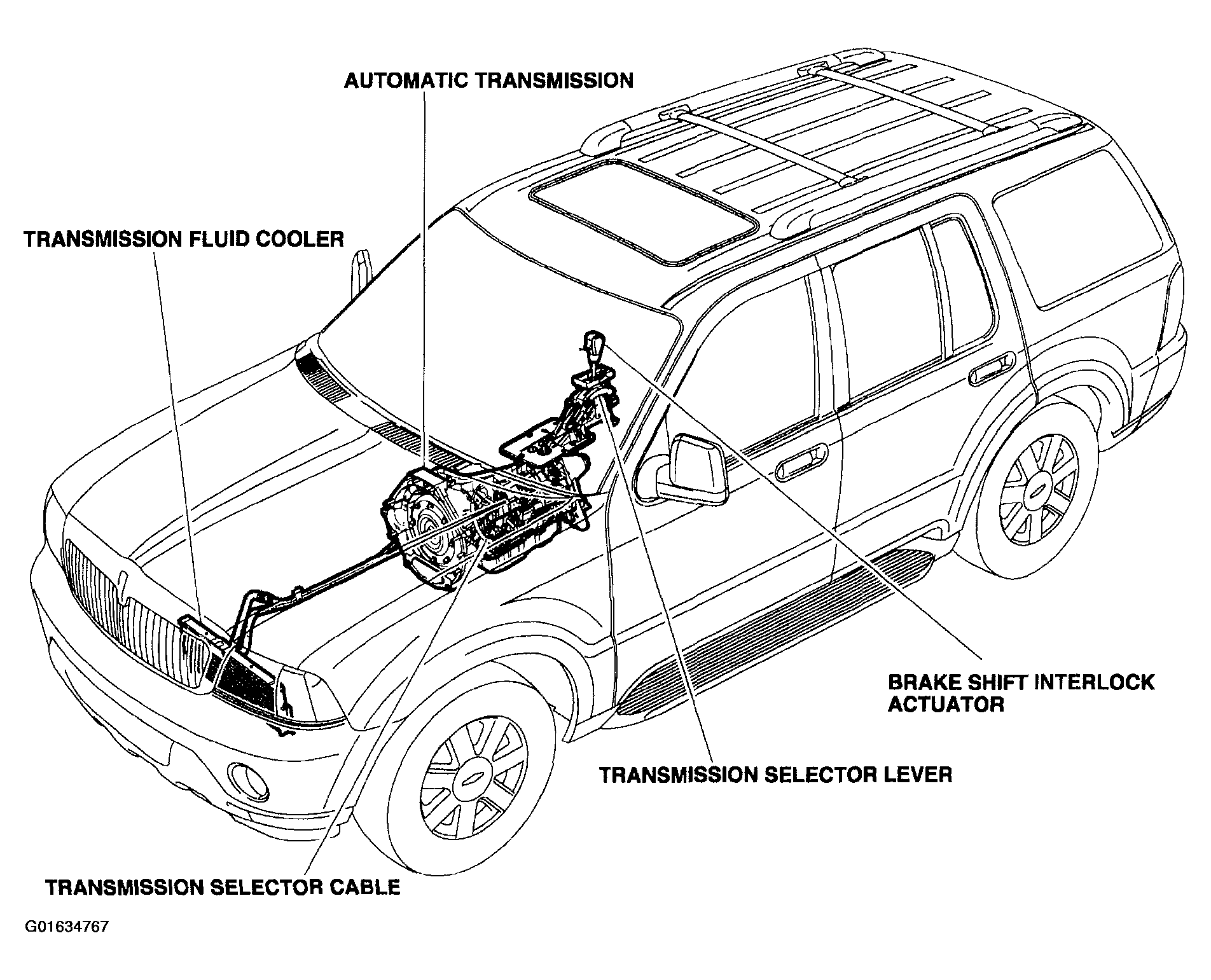

Fig 2: Identifying Transmission Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
