Blower Motor - Front

  1. Remove the RH lower instrument panel insulator.
  2. Remove the components in the order indicated in the following illustration.

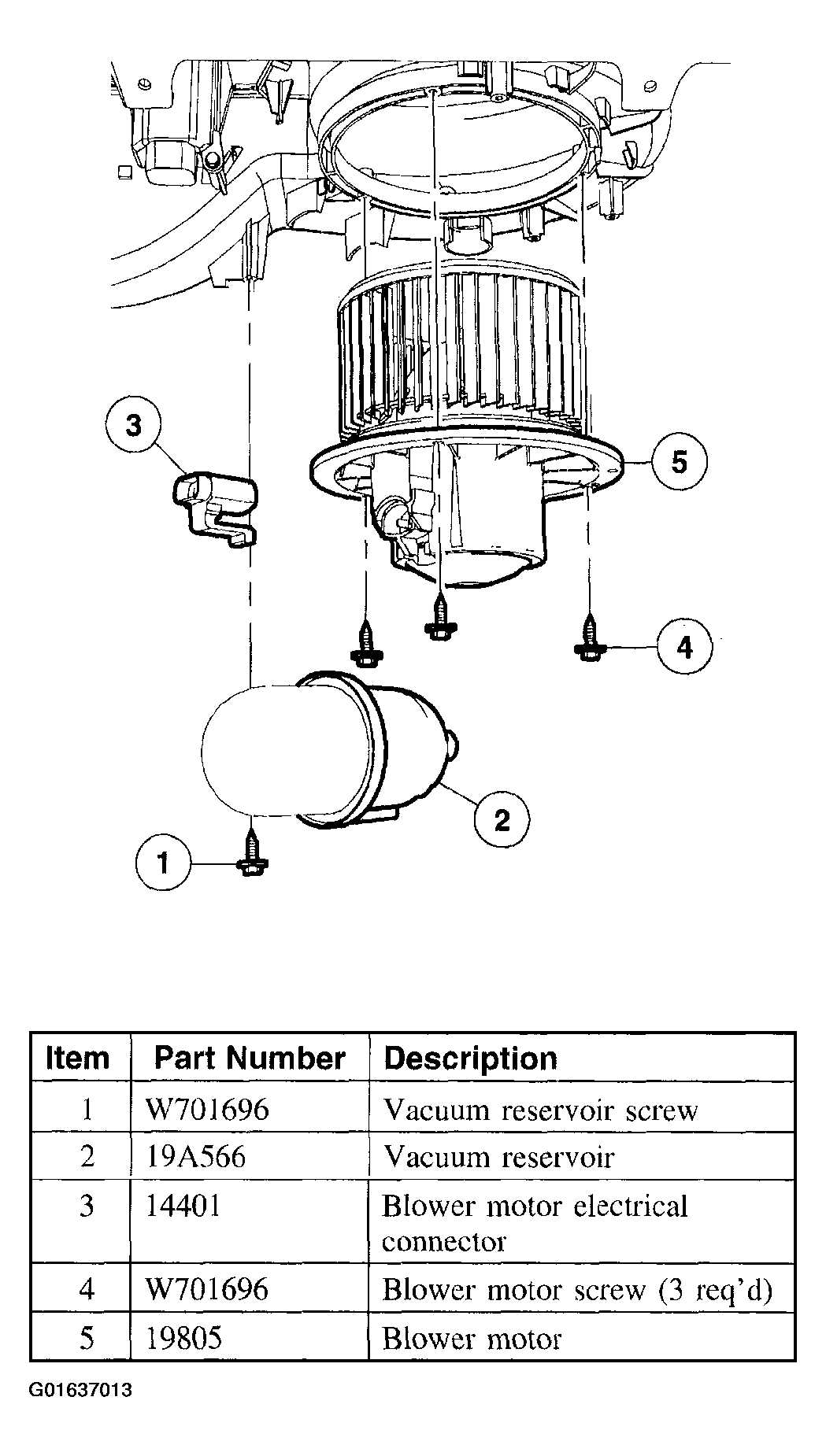

    Fig 1: Removal Sequence Of Blower Motor - Front
    G01637013Courtesy of FORD MOTOR CO.
