Home >> Lincoln >> 2003 >> Aviator RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body System - Exterior >> Removal And Installation >> Radiator Grille Opening Panel

Radiator Grille Opening Panel

  1. Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING .
  2. Remove the components in the order indicated in the following illustration.
  3. To install, reverse the removal procedure.

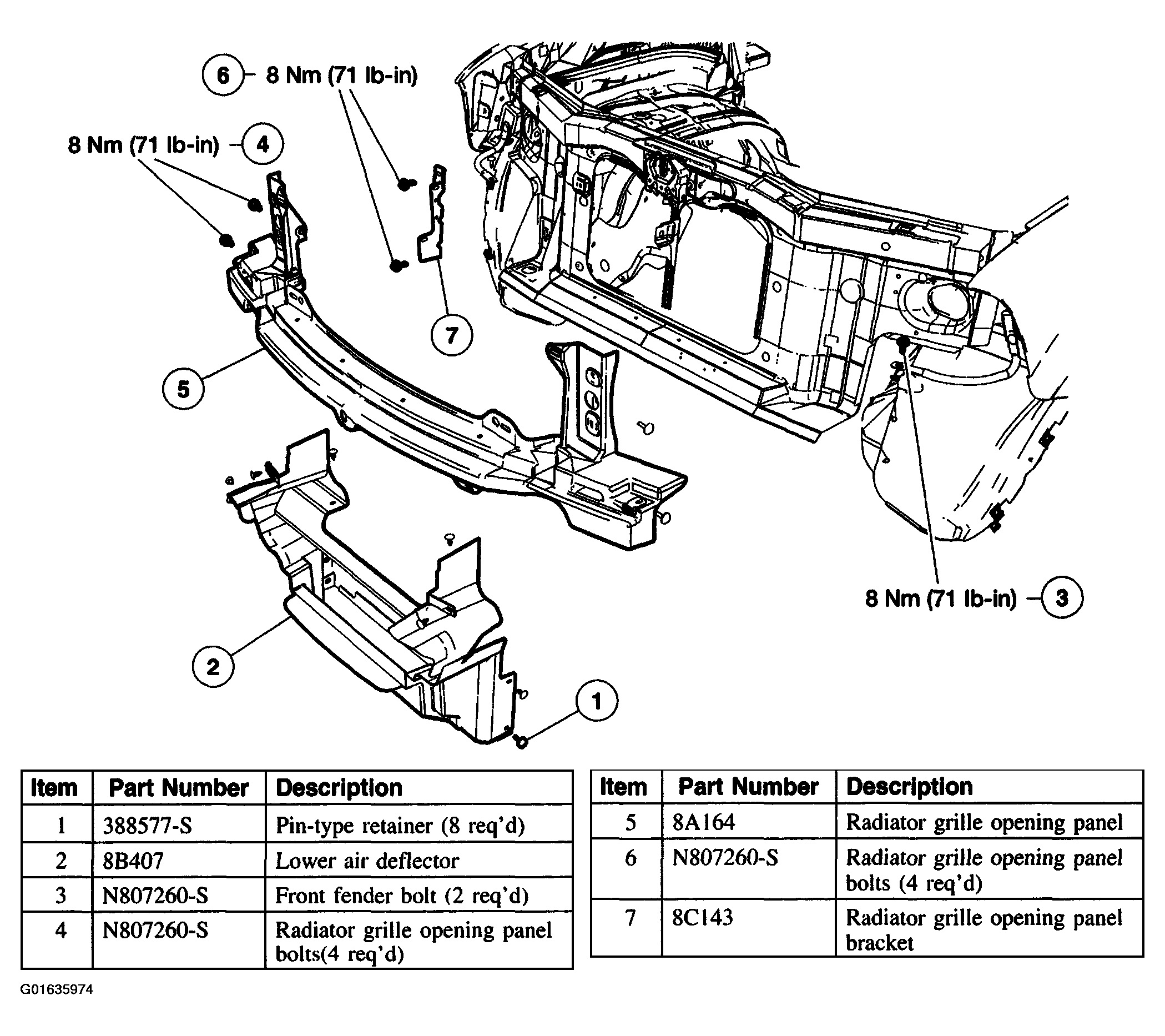

    Fig 1: Radiator Grille Opening Panel Removal Procedure
    G01635974Courtesy of FORD MOTOR CO.
