Removal And Installation: Mouldings

1. Remove the running boards. For additional information, refer to RUNNING BOARD .
2. Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the listed steps.

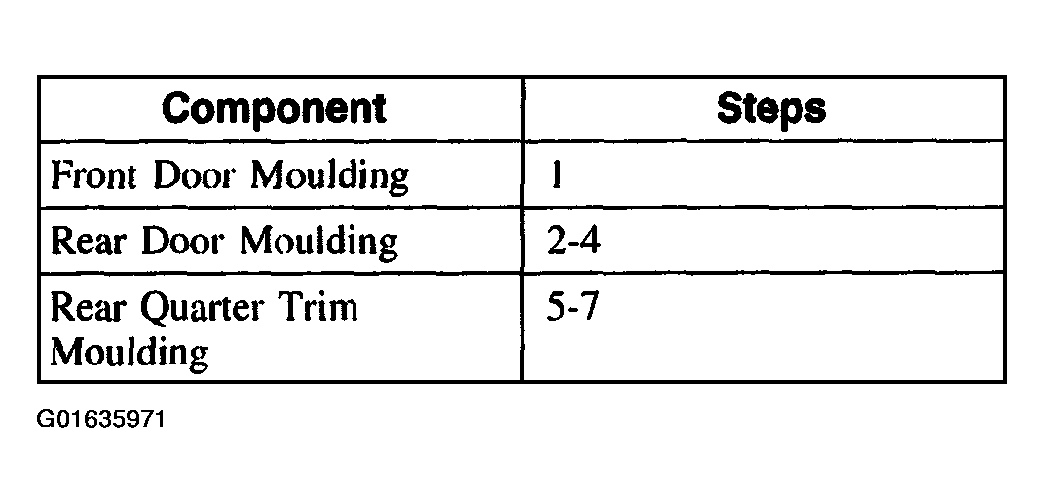

   Fig 1: Individual Components Removing Steps

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.

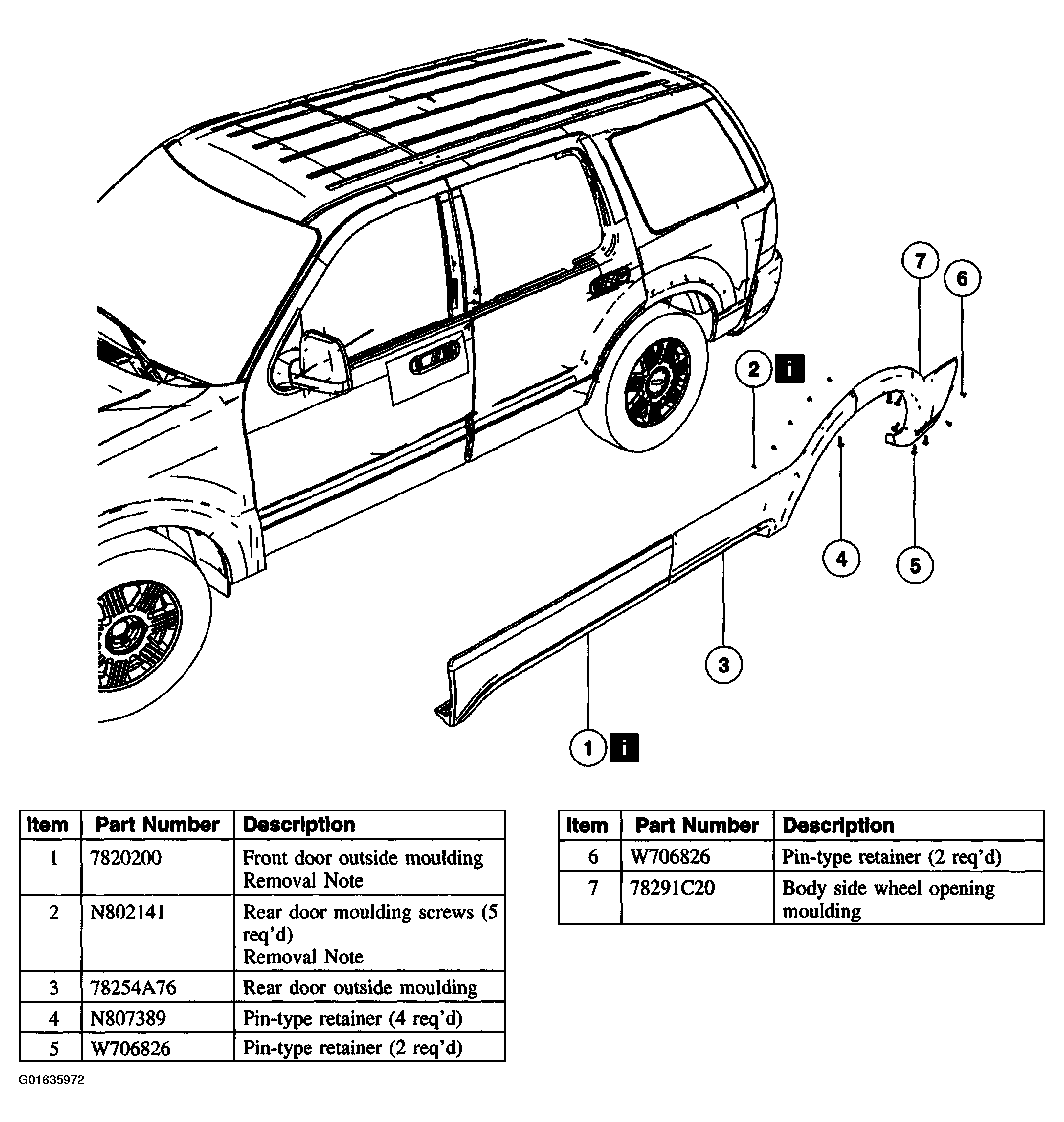

   Fig 2: Mouldings Removal Procedure

   Courtesy of FORD MOTOR CO.

Item 1: Front Door Outside Moulding Removal Note

1. The front door outside moulding is held in place by retainer clips.

Item 2: Rear Door Moulding Screws Removal Note

1. Remove the rear door outside moulding screws and washers from inside the wheel well.

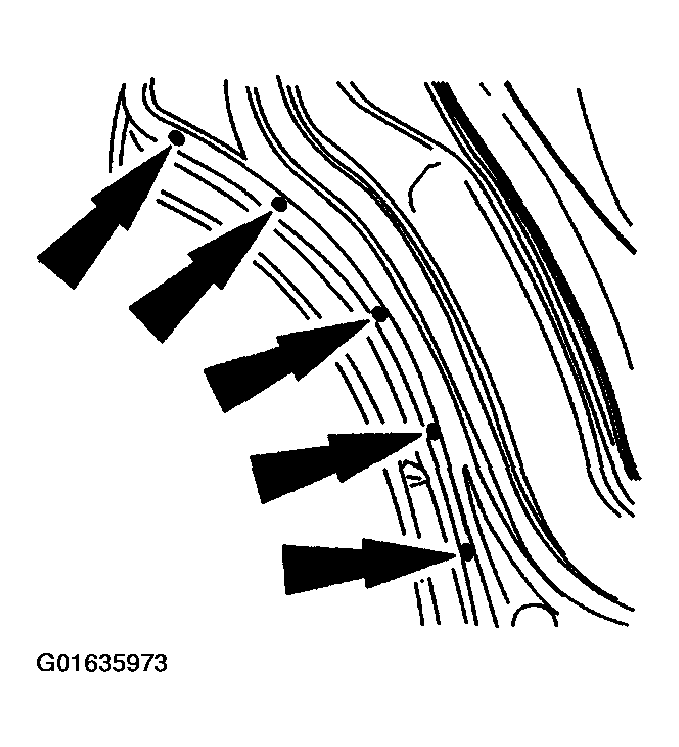

   Fig 3: Removing Rear Door Outside Moulding Screws

   Courtesy of FORD MOTOR CO.
