Daytime Running Lamp (DRL) Module

  1. Remove the components in the order indicated in the following illustration.

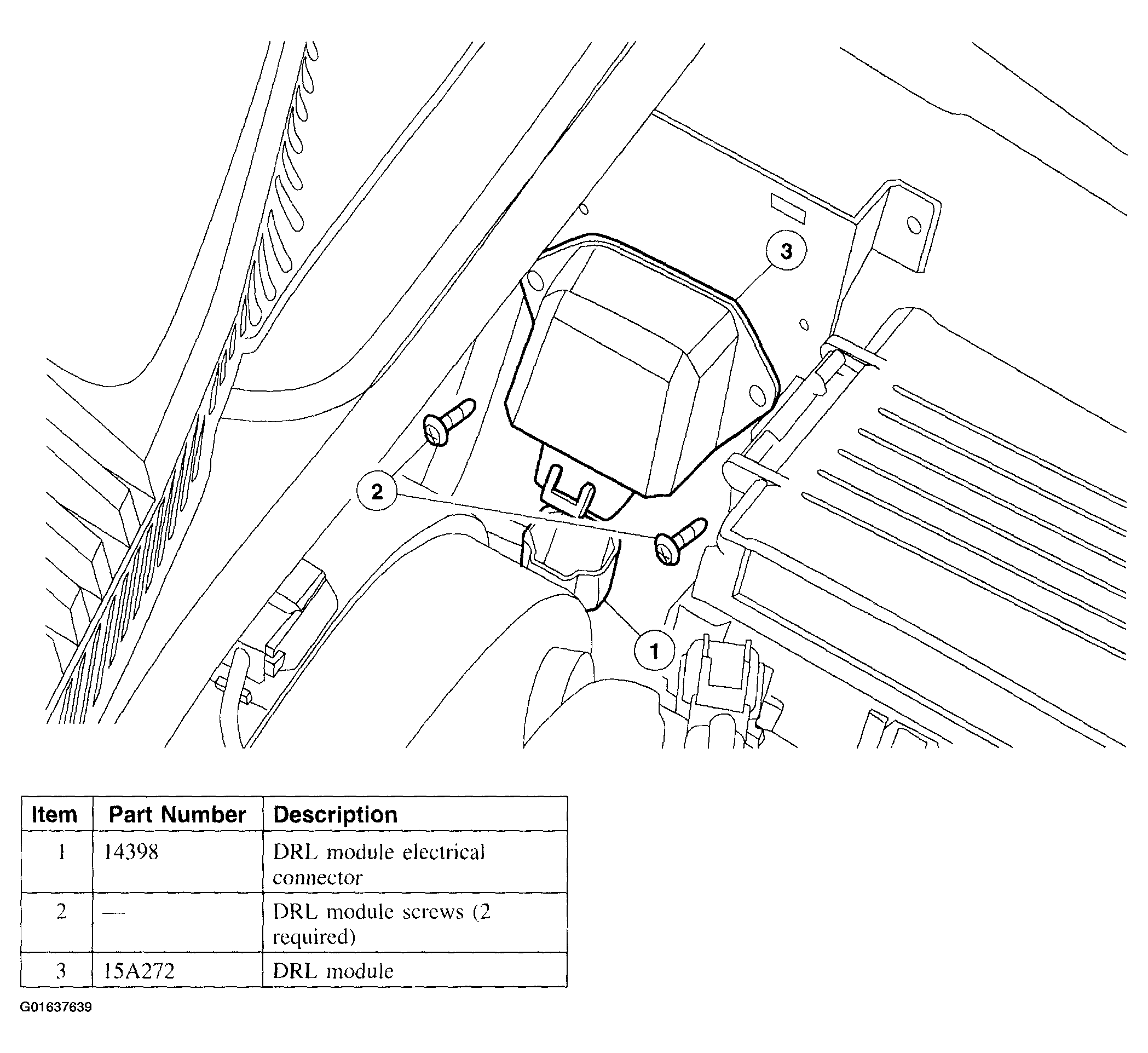

    Fig 1: Removal Sequence Of Daytime Running Lamp (DRL) Module
    G01637639Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
