Connector Reference and Terminal Readings

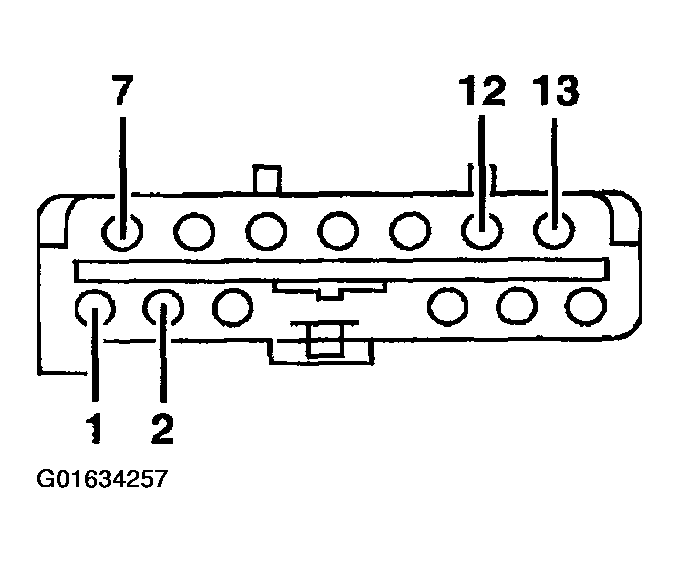

Fig 1: Identifying VAPS Module C2231a Connector Terminal

Courtesy of FORD MOTOR CO.

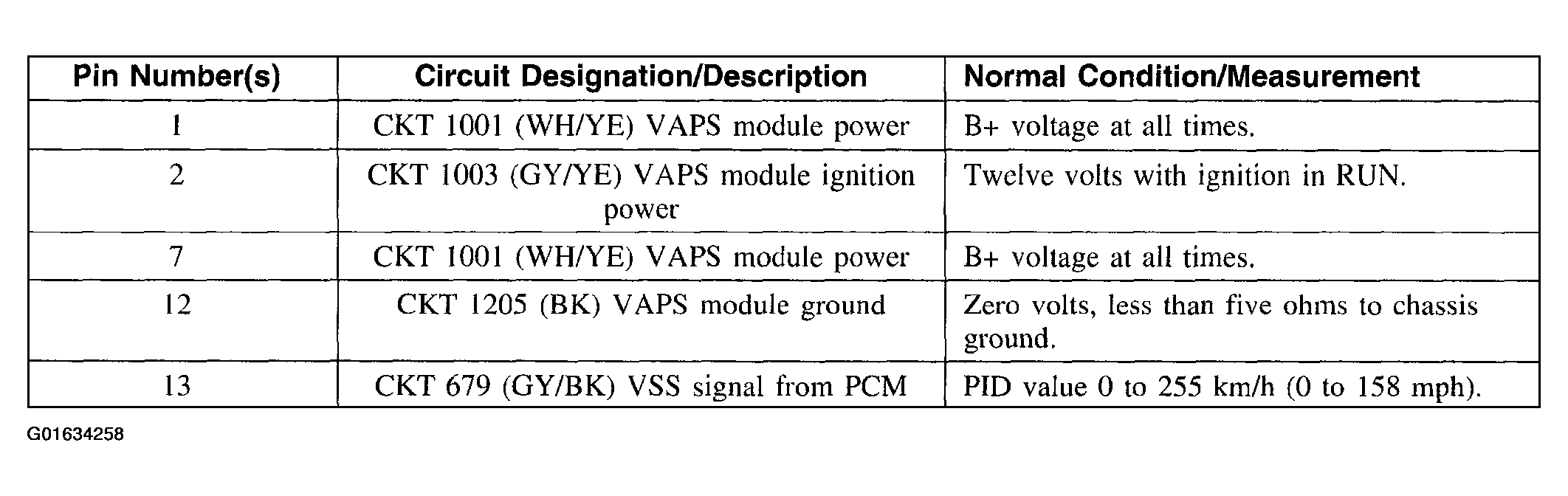

Fig 2: C2231a Connector Reference Table

Courtesy of FORD MOTOR CO.

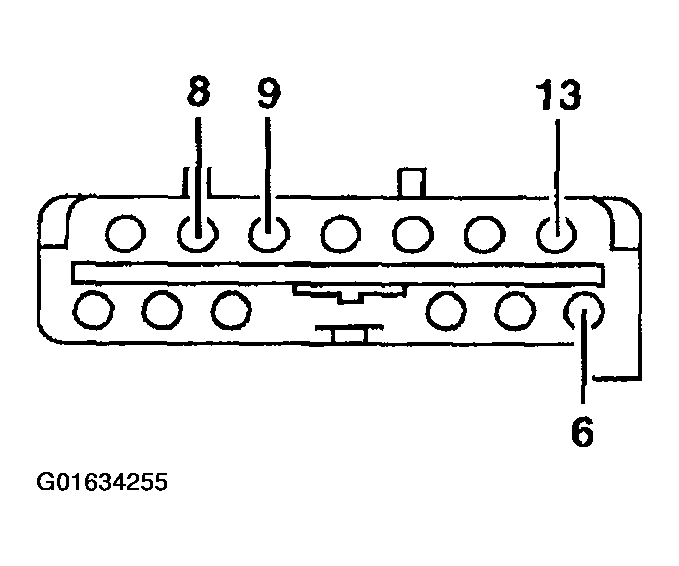

Fig 3: Identifying VAPS Module C2231b Connector Terminal

Courtesy of FORD MOTOR CO.

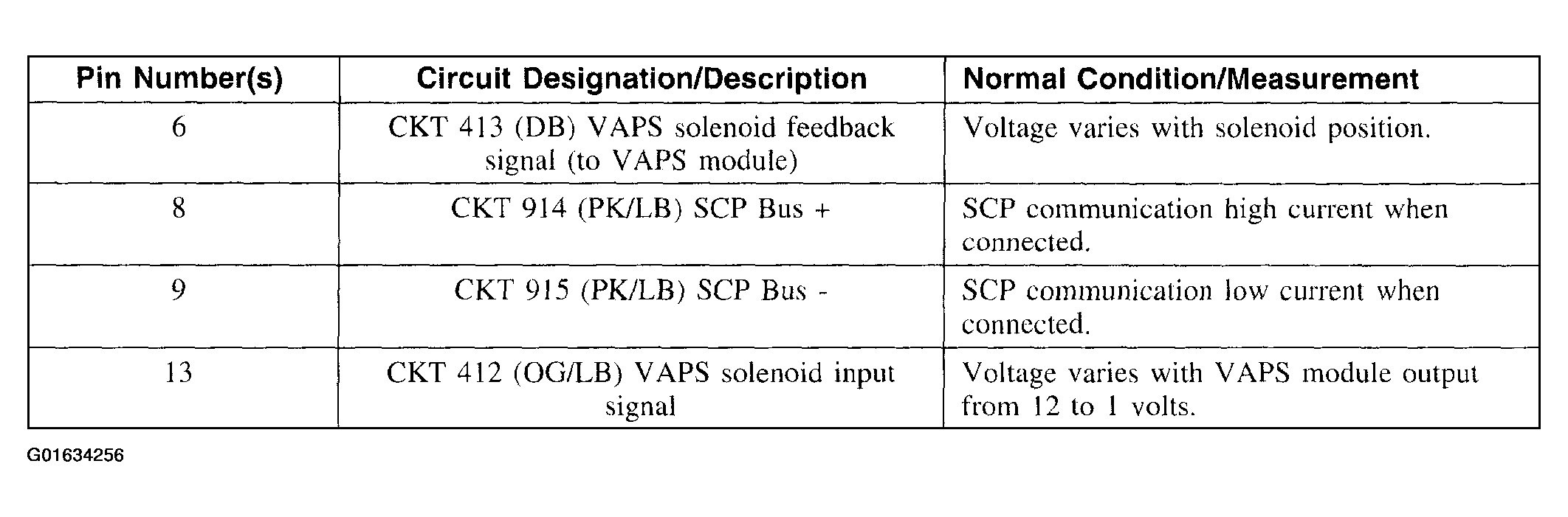

Fig 4: C2231b Connector Reference Table

Courtesy of FORD MOTOR CO.

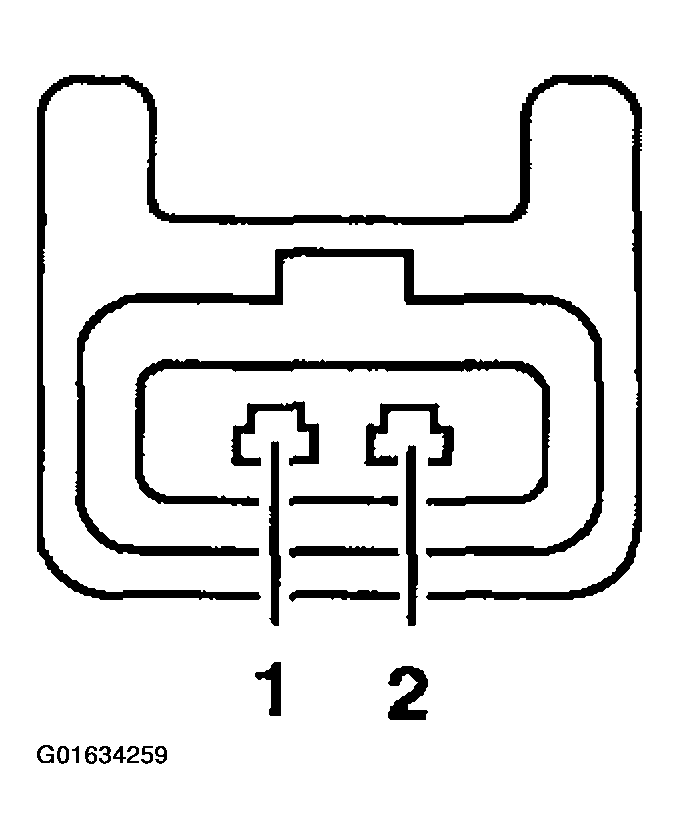

Fig 5: Identifying VAPS Solenoid C120 Connector Terminal

Courtesy of FORD MOTOR CO.

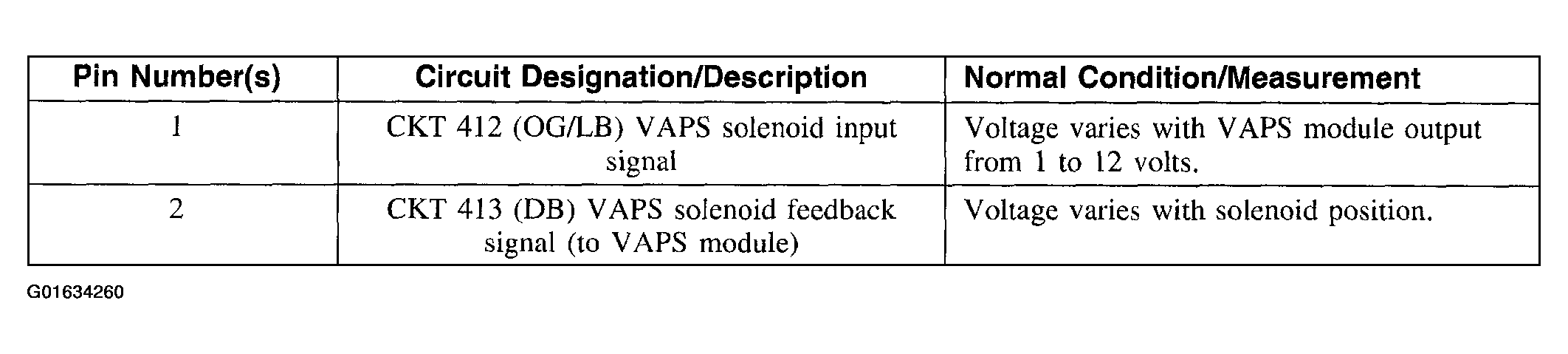

Fig 6: C120 Connector Reference Table

Courtesy of FORD MOTOR CO.

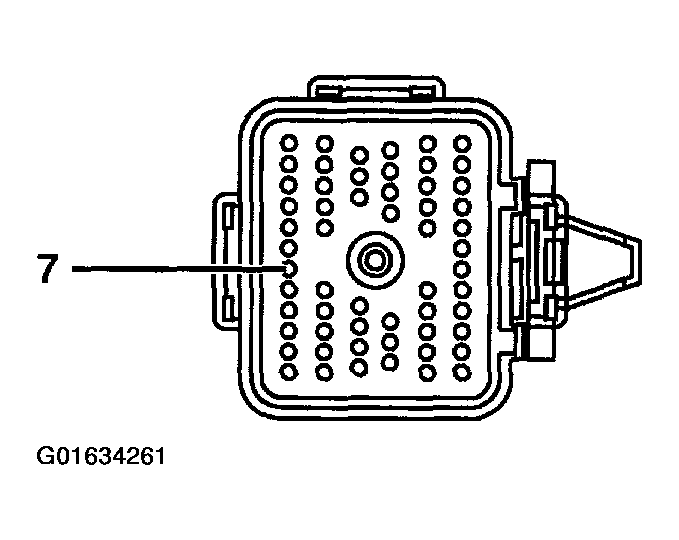

Fig 7: Identifying PCM C175a Connector Terminal

Courtesy of FORD MOTOR CO.

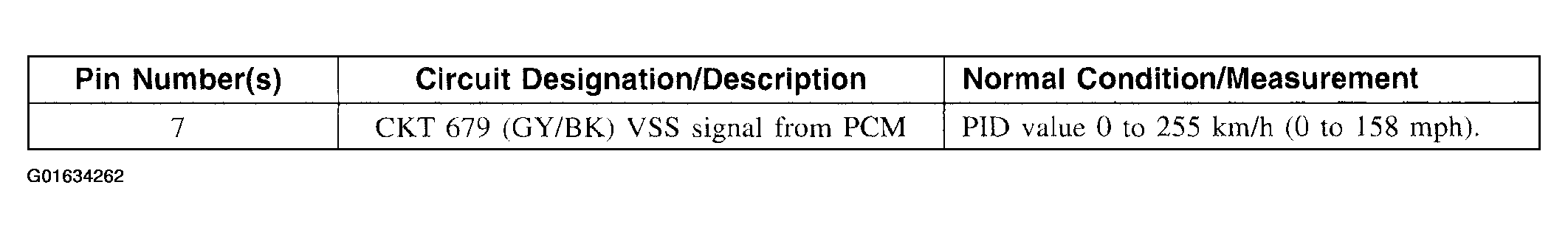

Fig 8: C175a Connector Reference Table

Courtesy of FORD MOTOR CO.
