Connector Reference and Terminal Readings

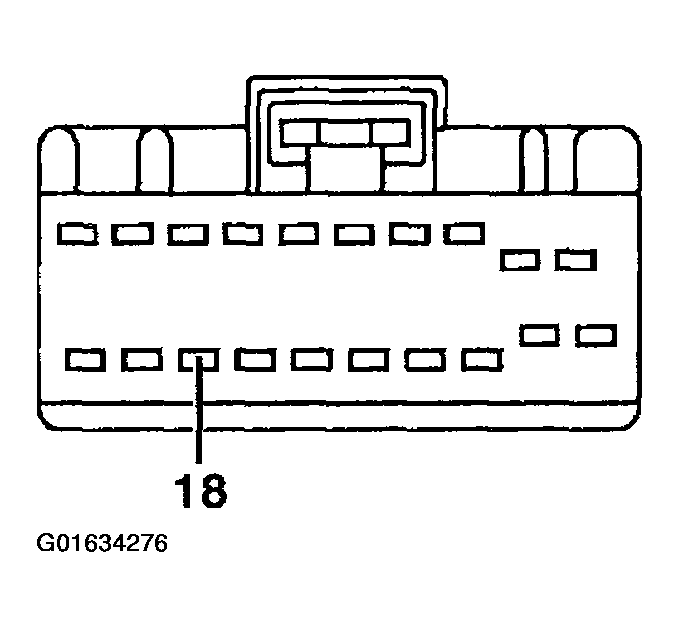

Fig 1: Identifying Instrument Cluster Connector C220a Connector Terminal

Courtesy of FORD MOTOR CO.

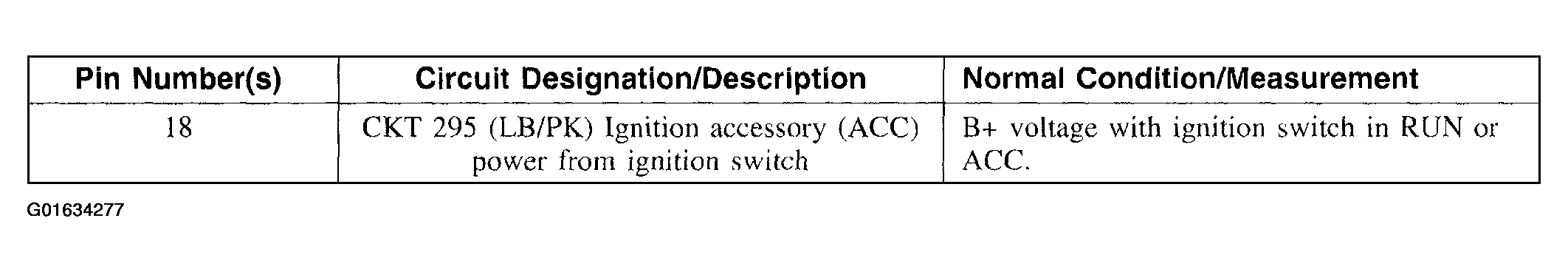

Fig 2: C220a Connector Reference Table

Courtesy of FORD MOTOR CO.

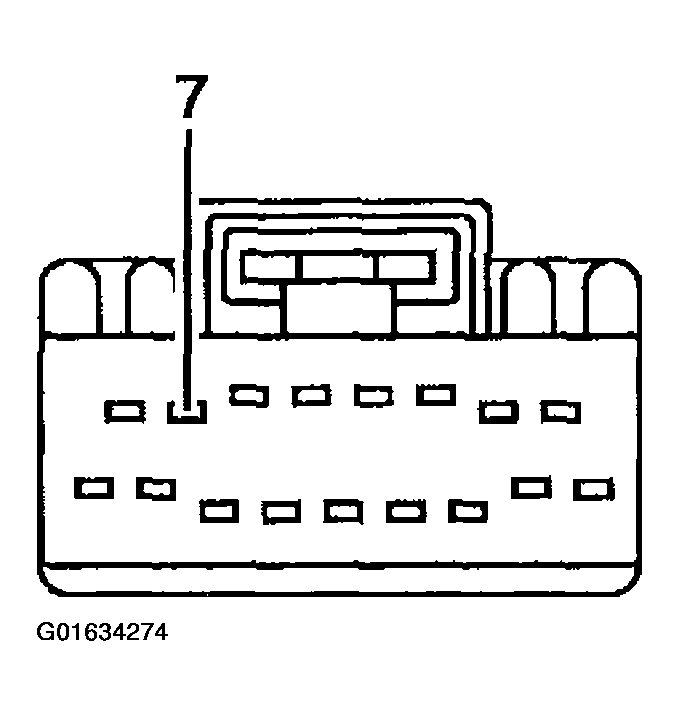

Fig 3: Identifying Instrument Cluster Connector C220b Connector Terminal

Courtesy of FORD MOTOR CO.

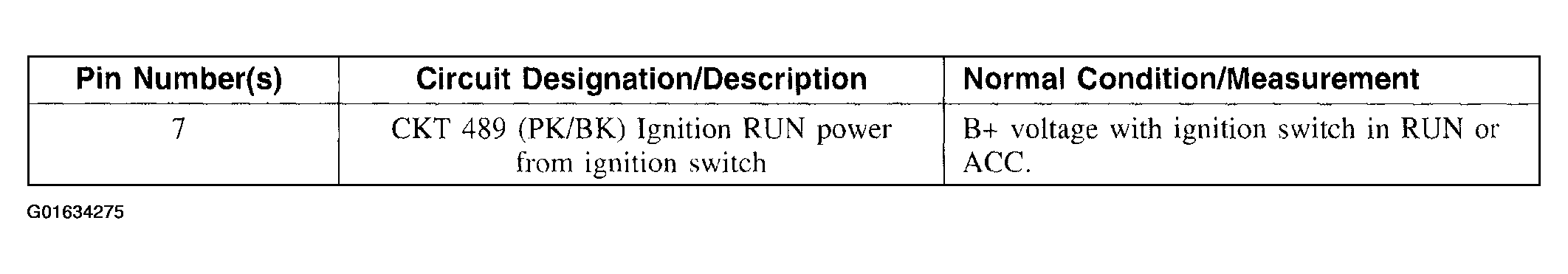

Fig 4: C220b Connector Reference Table

Courtesy of FORD MOTOR CO.

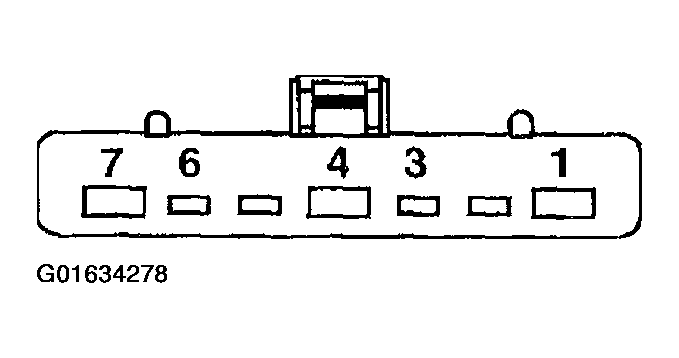

Fig 5: Identifying Ignition Switch Connector C250 Connector Terminal

Courtesy of FORD MOTOR CO.

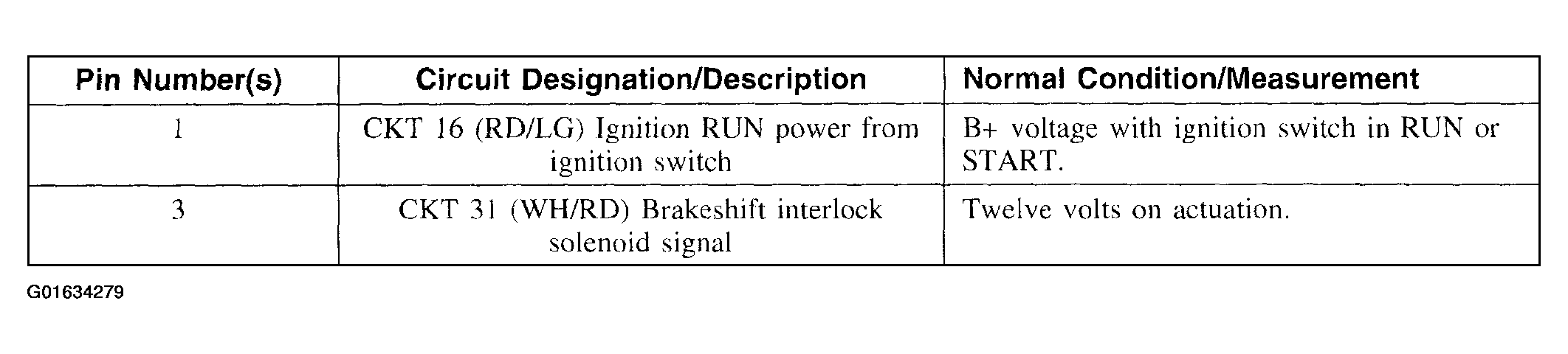

Fig 6: C250 Connector Reference Table (1 Of 2)

Courtesy of FORD MOTOR CO.

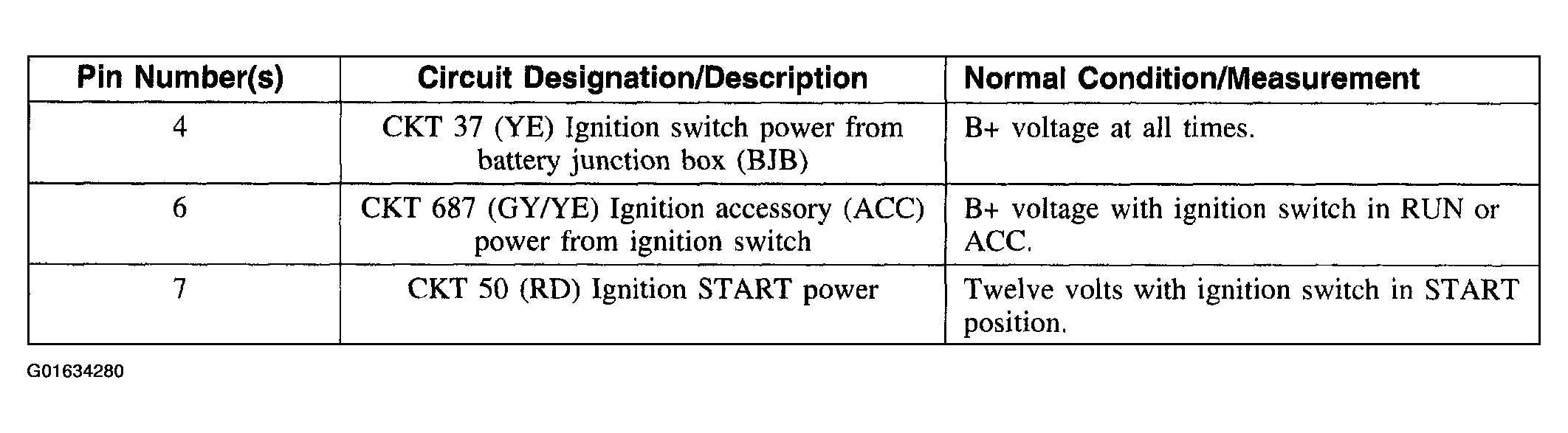

Fig 7: C250 Connector Reference Table (2 Of 2)

Courtesy of FORD MOTOR CO.
